The IN5822 series employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. Ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes, and polarity protection diodes.
Features:-
• Extremely Low VF
• Low Power Loss/High Efficiency
• Low Stored Charge, Majority Carrier Conduction
• Shipped in plastic bags, 500 per bag
• Available in Tape and Reel, 1500 per reel, by adding a “RL'' suffix to the part number
• Pb-Free Packages are Available
Mechanical Characteristics:-
• Case: Epoxy, Molded
• Weight: 1.1 Gram (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
• Polarity: Cathode indicated by Polarity Band
Specification:-
| Symbol | Parameter | Value | Units |
| VRRM | Peak Repetitive Reverse Voltage | 40 | V |
| VRWM | Working Peak Reverse Voltage | 40 | V |
| VR | DC Blocking Voltage | 40 | V |
| VR(RMS) | RMS Reverse Voltage | 28 | V |
| VRSM | Non−Repetitive Peak Reverse Voltage | 48 | V |
| IO | Average Rectified Output Current | 3 | A |
| IFSM | Non-Repetitive Peak Forward Surge Current | 80 | A |
| TJ | Operating Junction Temperature Range | − 65 to +125 | °C |
| Tstg | Storage Temperature Range | − 65 to +125 | °C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 20.06 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

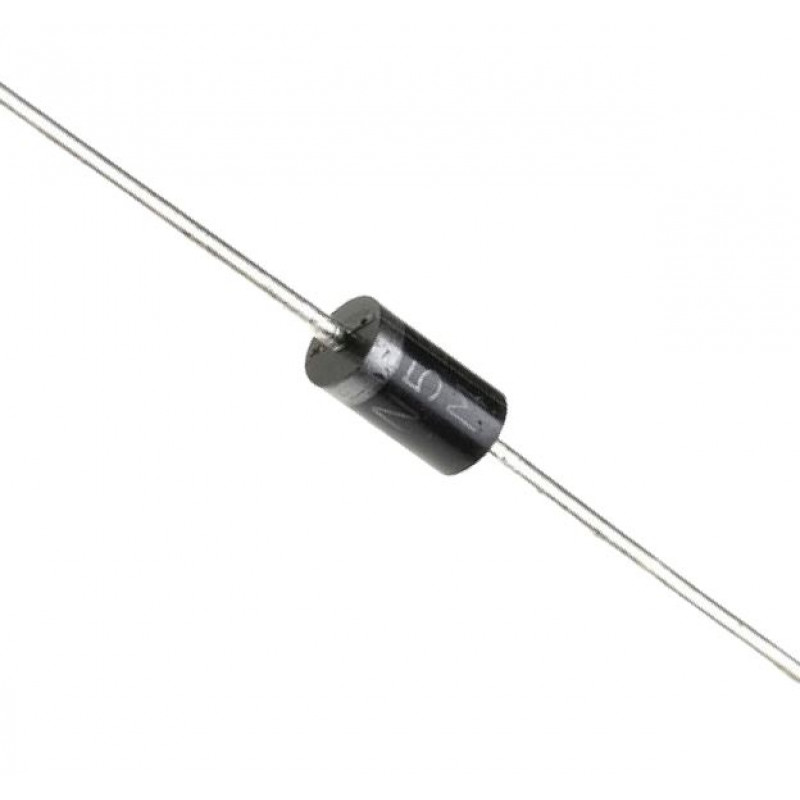

1N5822 Schottky Barrier Diode
- Product Code: EC-0273
- Availability: 4828
-
Rs.12.00
- (Excluding 18% GST)
