The KBL04 is a 4mp Single-Phase Bridge Rectifier and is used in ac-to-dc bridge full wave rectification for monitor, TV, printer, SMPS, adapter, audio equipment, and home appliances applications.
Features:-
• UL recognition, file number E54214
• Ideal for printed circuit boards
• High surge current capability
• Plastic-passivated junction
• High case dielectric strength of 1500 VRMS
• Solder dip 275 °C max. 10 s, per JESD 22-B106
Mechanical Characteristics
• Case: KBL
• Molding compound meets UL 94 V-0 flammability rating Base P/N-E4 - RoHS-compliant, commercial grade
• Terminals: silver plated leads, solderable per J-STD-002 and JESD22-B102
• Polarity: as marked on body
• Mounting Torque: 10 cm-kg (8.8 inches-lbs) max.
• Recommended Torque: 5.7 cm-kg (5 inches-lbs)
Specification:-
| Symbol | Parameter | Value | Units |
| VRRM | Peak Repetitive Reverse Voltage | 400 | V |
| VDC | Maximum DC blocking voltage | 400 | V |
| VRMS | Maximum RMS voltage | 280 | V |
| IF(AV) | Maximum average forward current at TA = 50 °C | 4 | A |
| IFSM | Non-Repetitive Peak Forward Surge Current | 200 | A |
| TJ | Operating Junction Temperature Range | − 50 to +150 | °C |
| Tstg | Storage Temperature Range | − 50 to +150 | °C |
Related Document:-
KBL04 Rectifier Data Sheet
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 22.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

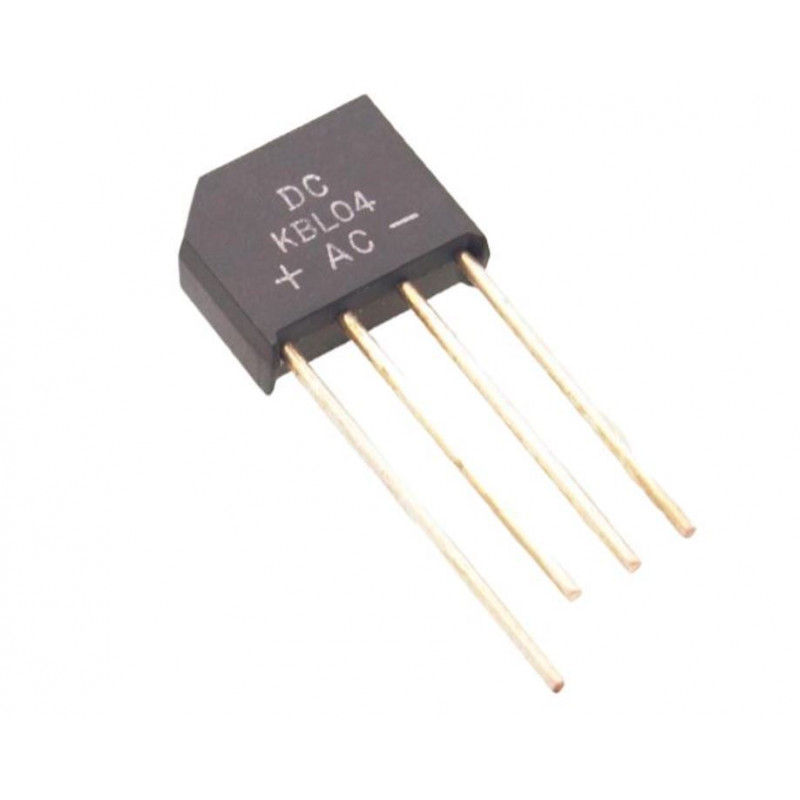

KBL04 4A 400V Bridge Rectifier
- Product Code: EC-0603
- Availability: 2369
-
Rs.19.00
- (Excluding 18% GST)
