The BY299 is the Fast Recovery Rectifier Diodes. The typical applications of BY299 are the rectification of medium frequencies, snubber or Bootstrap diodes Commercial grade.
Features:-
• High current capability
• High surge current capability
• High reliability
• Low reverse current
• Low forward voltage drop
• Fast switching for high efficiency
Mechanical Characteristics:-
• Case : DO-201AD Molded plastic
• Epoxy : UL94V-O rate flame retardant
• Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed
• Polarity : Color band denotes cathode end
• Mounting position : Any
• Weight : 1.16 grams
Specification:-
| Symbol | Parameter | Value | Units |
| VRRM | Peak Repetitive Reverse Voltage | 800 | V |
| VRMS | Maximum RMS Voltage | 560 | V |
| VDC | Maximum DC Blocking Voltage | 800 | V |
| VF | Maximum Peak Forward Voltage at IF = 2.0 Amps | 1.3 | V |
| CJ | Typical Junction Capacitance | 28 | pf |
| IFSM | Non-Repetitive Peak Forward Surge Current | 70 | A |
| TJ | Operating Junction Temperature Range | - 50 to + 125 | °C |
| Tstg | Storage Temperature Range | - 50 to + 125 | °C |
| IF(AV) | Maximum Average Forward Current 0.375"(9.5mm) Lead Length Ta = 50 °C | 2 | A |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 9.44 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

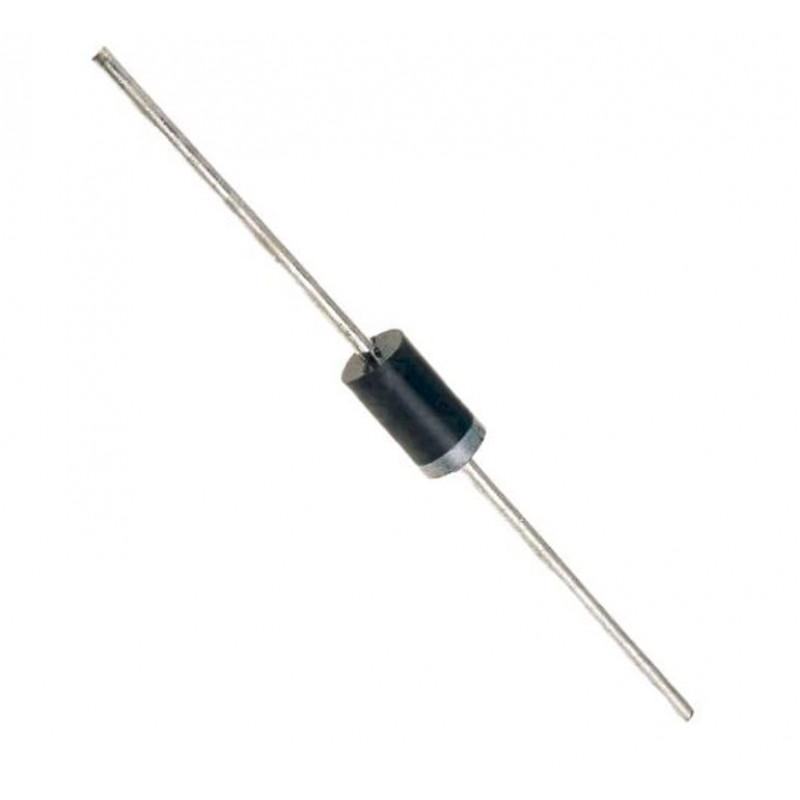

BY299 Fast / Ultrafast Power Diode
