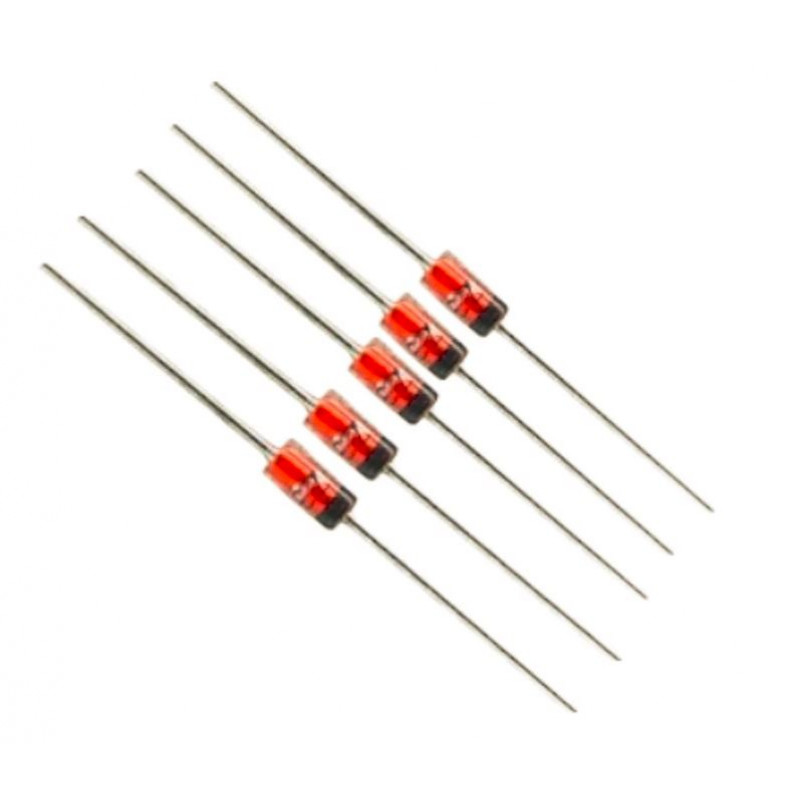

24V 1W Zener Diode - 5 Pieces Pack

Features:-

• Silicon Planar Power Zener Diodes

• For use in stabilizing and clipping circuits with high power rating.

• Standard Zener voltage tolerance is ±10%. Add suffix “A” for ±5% tolerance. Other Zener voltages and tolerances are available upon request.

• These diodes are also available in the MELF case with type designation ZM4728 thru ZM4764

Mechanical Data:-

• Case: DO-41 Glass Case

• Weight: approx. 0.35 g

Specification:-

Symbol	Parameter	Values	Units
Ptot	Power Dissipation at Tamb = 25°C	1.0	Watts
RΘJA	Thermal Resistance Junction to Ambient Air	170	°C/W
VF	Forward Voltage at IF = 200 mA	1.2	V
TJ	Maximum Junction Temperature	175	°C
TSTG	Storage Temperature Range	– 65 to +175	°C


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 17.7 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.
