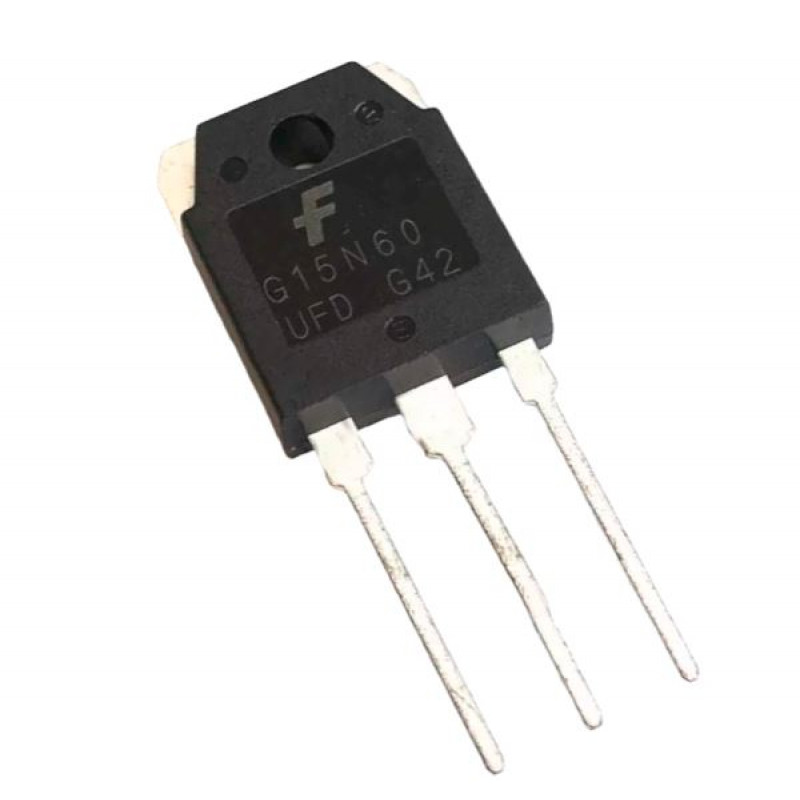

  • G15N60 - Fast IGBT

The G15N60 is a fast IGBT in NPT-technology. The G15N60 IS 75% lower Eoff compared to previous generation combined with low conduction losses. The G15N60 has VCE of 600V, IC of 15A, VEC(sat) of 2.3V, and Tj of 150 degree. It is designed for :

1.Motor controls

2. Inverter.

Features:-

• Short circuit withstand time – 10 µs

• NPT-Technology for 600V applications offers:

  - very tight parameter distribution

  - high ruggedness, temperature stable behaviour

  - parallel switching capability

• Qualified according to JEDEC1 for target applications

• Pb-free lead plating; RoHS compliant

Specification:-

Symbol Description Ratings Units
VCE Collector-emitter voltage 600 V
IC DC collector curren 15 A
Tj  Operating junction  150 °C
Ts Soldering temperature 260 °C
Tstg Storage temperature -55 °C
Ptot  Power dissipation  139 W
tsc Short circuit withstand time 10 µs
VG E Gate-emitter voltage  ±20 V
