The STGIPS20K60 is an intelligent power module provides a compact, high performance AC motor drive in a simple, rugged design. Combining ST proprietary control ICs with the most advanced short-circuitrugged IGBT system technology, this device is ideal for 3-phase inverters in applications such as home appliances and air conditioners. SLLIMM™ is a trademark of STMicroelectronics.
Features:-
• IPM 18 A, 600 V 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes
• Short-circuit rugged IGBTs
• VCE(sat) negative temperature coefficient
• 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and pull-down / pull-up resistors
• Under voltage lockout
• Internal bootstrap diode
• Interlocking function
• Smart shutdown function
• Comparator for fault protection against over temperature and overcurrent
• DBC leading to low thermal resistance
• Isolation rating of 2500 Vrms/min
• UL Recognized: UL1557 file E81734
Applications:-
• 3-phase inverters for motor drives
• Home appliances, such as washing machines, refrigerators, air conditioners and sewing machine
Specification:-
| Symbol | Parameter | Values | Units |
| VPN | Supply voltage applied between P - NU, NV, NW | 450 | V |
| VPN(surge) | Supply voltage (surge) applied between P - NU, NV, NW | 500 | V |
| VCES | Each IGBT collector emitter voltage (VIN (1) = 0 V) | 600 | V |
| ± IC | Each IGBT continuous collector current at TC = 25 °C | 18 | A |
| ± ICP | Each IGBT pulsed collector current | 40 | A |
| PTOT | Each IGBT total dissipation at TC = 25 °C | 52 | W |
| tscw | Short circuit withstand time, VCE = 0.5 V(BR)CES TJ = 125 °C, | 5 | µs |
| VCC = Vboot= 15 V, VIN (1)= 0 to 5 V |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2743.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

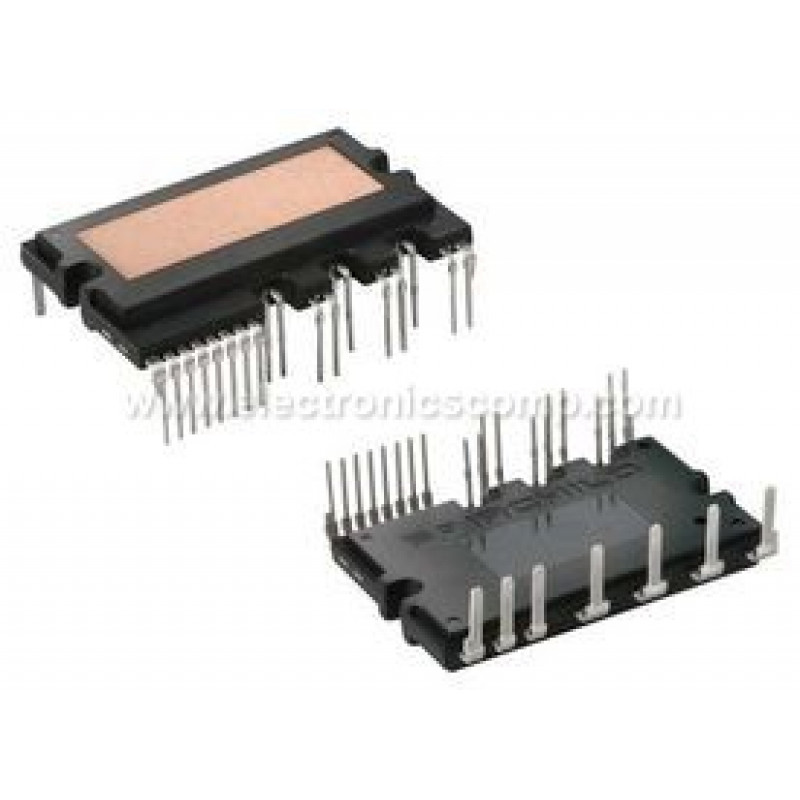

STGIPS20K60 - GIPS20K60 IGBT Module - 600V 17A Intelligent IGBT Power Module
- Product Code: EC-1979
- Availability: 174
-
Rs.2325.00
- (Excluding 18% GST)
