Inductors, like capacitors, can hold a charge or power within them after a certain time and can maintain that power source even when an outside supply is removed. An inductor stores energy in the form of a magnet. The defining feature of an inductor is a resistance to change in current

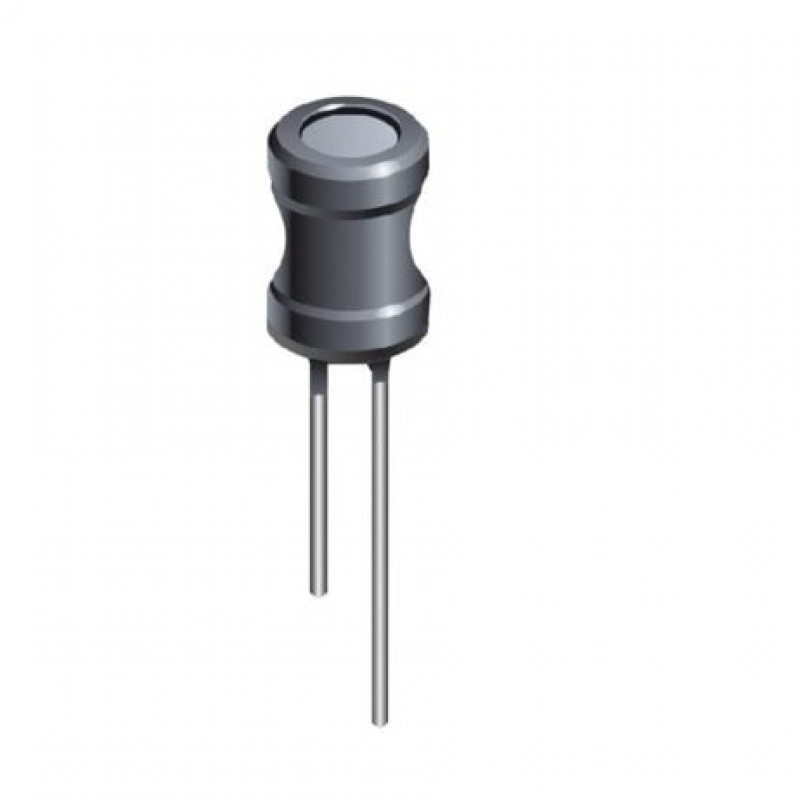

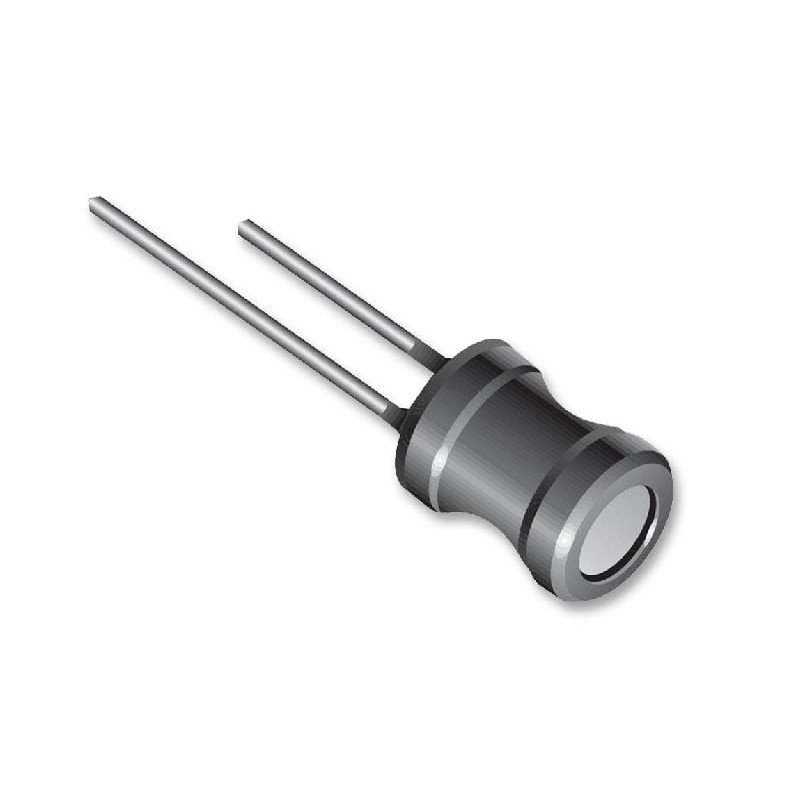

A radial inductor has a similar design to radial electrolytic capacitors whereby the inductor stands upright on the PCB and has two legs protruding from the bottom

Applications:

  1. Power supplies
  2. DC/DC converters
  3. General use

Specifications:

  1. Inductance: 470 uH
  2. Tolerance: 10 %
  3. Maximum DC Current: 500 mA
  4. Maximum DC Resistance: 1.3 Ohms
  5. Operating Temperature: 20 C to + 80 C
  6. Self Resonant Frequency: 1.8 MHz
  7. Termination: Standard
  8. Mounting Style: PCB Mount
  9. Core Material: Ferrite

Packages Includes:

1 x 13R223CRLB Series Radial Lead Inductors

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

13R223C RLB Series Radial Lead Inductors

  • Product Code: EC-23980
  • Availability: 5
  • Rs.101.00
  • (Excluding 18% GST)
