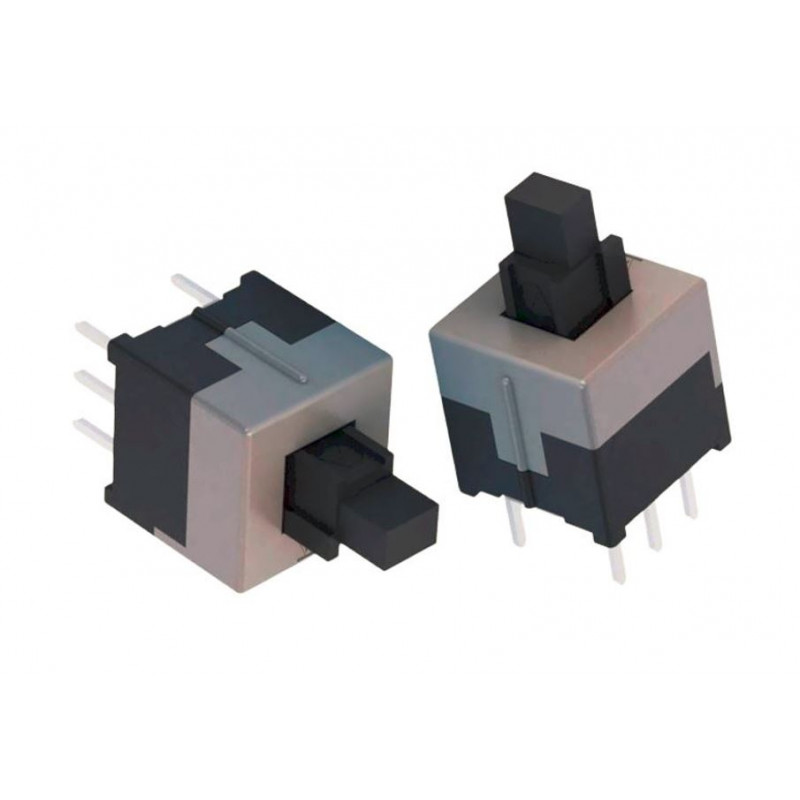

Push Switch-Non Locking An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another.
Specifications:-
- Material: Plastic
- Switch type: Push Button
- Switch Action: Non-Locking Action
- Led spacing Pitch: 2.54mm
- Mounting Type: Through-hole
- Pin Count: 6-Pin
- Insulation Resistance: >=100MΩ
- Temperature: – 40~80°C
Package Includes:-
1 x Push Switch -Non Locking - 6 Pin
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 5.9 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Push Switch -Non Locking - 6 Pin
- Product Code: EC-1139
- Availability: 251
-
Rs.5.00
- (Excluding 18% GST)
