The 2N3439 is silicon epitaxial planar NPN transistors in jedec TO-39 metal case designed for use in consumer and industrial line-operated applications. These devices are particularly suited as drivers in high-voltage low current inverters, switching and series regulators.
Features:-
• Metal TO-39 can package
• Advanced process technology
• Low error voltage
• Fast switching speed
• Full-voltage operation
• High power and current handling capability
Detailed Specifications:-
| Transistor Polarity | NPN |
| Collector-Base Voltage (VCBO) | 450V |
| Collector-Emitter Voltage (VCEO) | 350V |
| Emitter-Base Voltage (VEBO) | 7V |
| Continuous Collector Current (IC) | 1A |
| Base Current (IB) | 0.5A |
| Transition Frequency (fT) | 15MHz |
| DC Current Gain (hFE) | 40-160 |
| Operating Temperature Range | -65 - 200°C |
| Power Dissipation (PD) | 10W |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 46.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

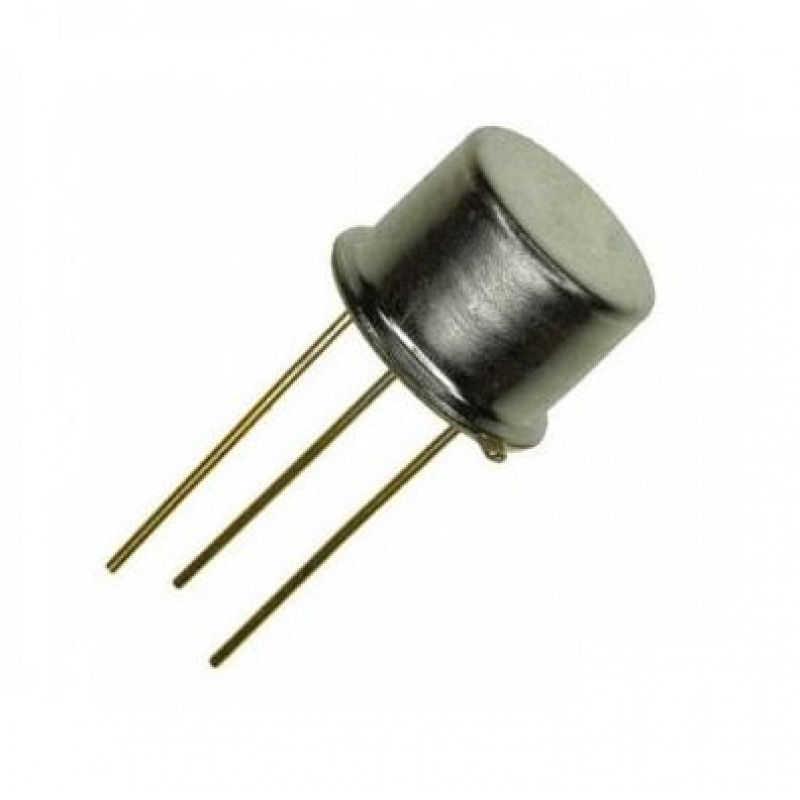

2N3439 NPN Bipolar Low Power Transistor 350V 1A TO-39 Metal Package
- Product Code: EC-2307
- Availability: 2156
-
Rs.39.00
- (Excluding 18% GST)
