Planar passivated sensitive gate four quadrant triac in a SOT78 plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate "series E" triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
Features:-
- Direct triggering from low power drivers and logic ICs
- High blocking voltage capability
- Low holding current for low current loads and lowest EMI at commutation
- Planar passivated for voltage ruggedness and reliability
- Sensitive gate
- Triggering in all four quadrants
Specifications:-
- Max Repetitive peak off-state voltage : 600V
- Non-repetitive peak on state current : 65A
- Max RMS on-state current : 8 A
- Holding current : 20mA
- Gate trigger current : 10mA
- Peak gate power : 5 Watt
- Package Type : TO-220
Package Includes:-
1 x BT137 Triac - 600V - 8A (BT137-600E) Triac
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 31.86 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

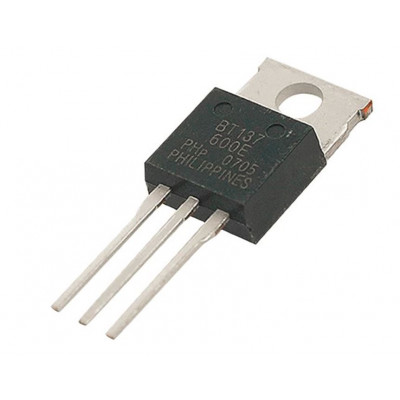

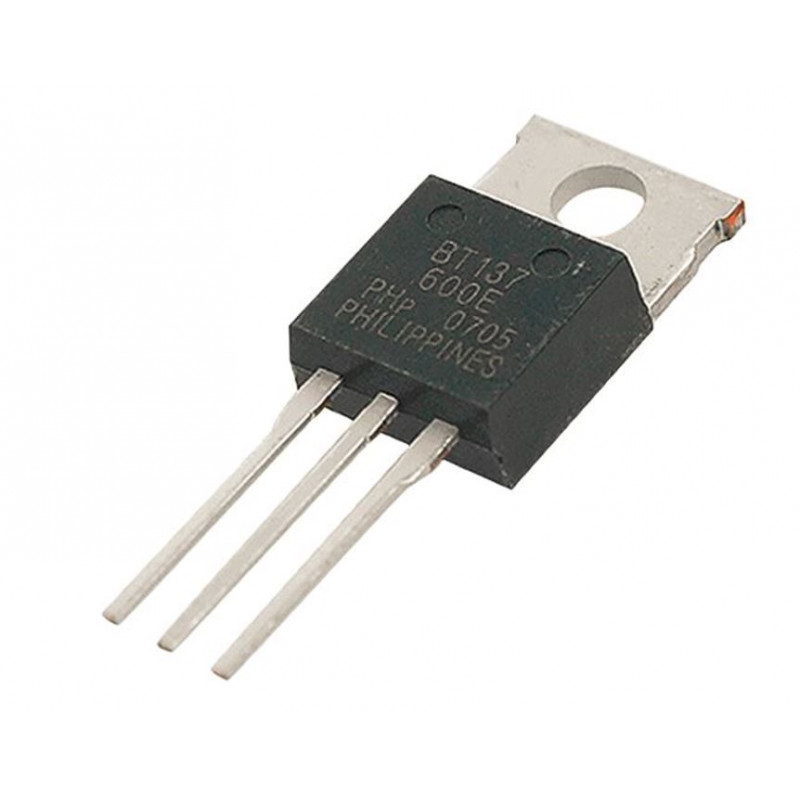

BT137 Triac - 600V - 8A (BT137-600E) Triac
- Product Code: EC-1928
- Availability: 1444
-
Rs.22.00
- (Excluding 18% GST)
