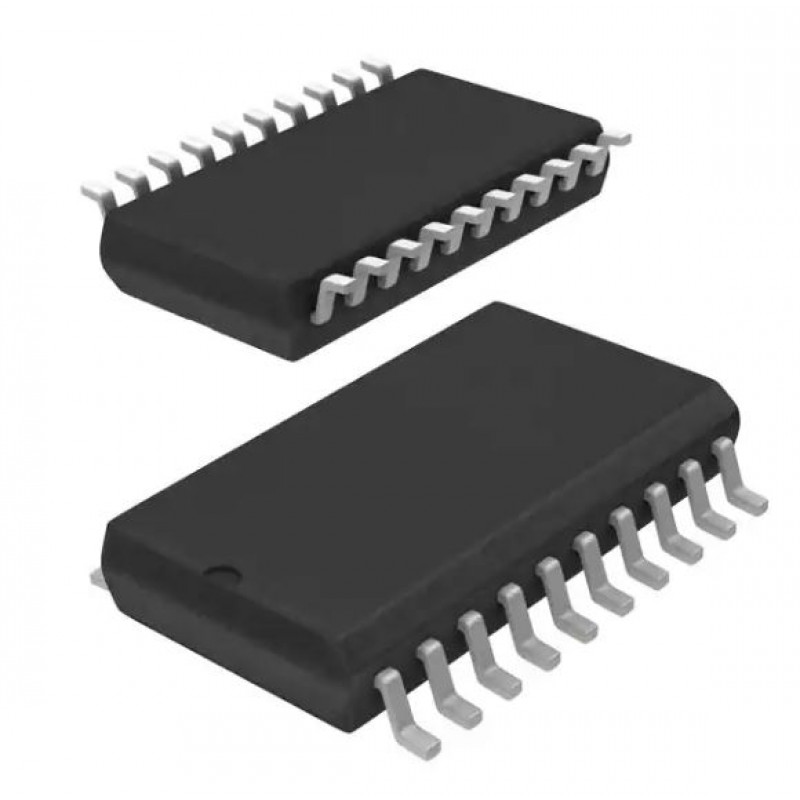

  • 74HC4351 IC - (SMD Package) - 8-Channel Analog Demultiplexer IC (744351)

The 74HC4351; 74HCT4351 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0 to S2), eight independent inputs/outputs (Yn), a common input/output (Z) and two digital enable inputs (E1 and E2). With E1 LOW and E2 HIGH, one of the eight switches is selected (low impedance ON-state) by S0 to S2. The data at the select inputs may be latched by using the latch enable input (LE). When LE is HIGH the latch is transparent. When E1 is HIGH or E2 is LOW all 8 analog switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.


Applications :-

  • Analog multiplexing and demultiplexing
  • Digital multiplexing and demultiplexing
  • Signal gating


Features :-

  • Wide analog input voltage range from -5 V to +5 V
  • Complies with JEDEC standard no. 7A
  • Low ON resistance:

                     – 80 Ω (typical) at VCC - VEE = 4.5 V

                     – 70 Ω (typical) at VCC - VEE = 6.0 V

                     – 60 Ω (typical) at VCC - VEE = 9.0 V

  • Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
  • Typical ‘break before make’ built-in
  • Address latches provided
  • ESD protection:

                     – HBM JESD22-A114F exceeds 2000 V

                     – MM JESD22-A115-A exceeds 200 V

                     – CDM JESD22-C101E exceeds 1000 V

  • Specified from -40 °C to +85 °C and -40 °C to +125 °C


Specifications :-

Symbol

Parameter

Min

Max

Unit

VCC

Supply Voltage

 -0.5

 +11.0

V

IIK

input clamping current

 -

 +20

mA

Iok

output clamping current

  -

 +20

mA

Isw

switch current

 -

  +25

mA

ICC

supply current

 -

50

mA

IGND

ground current

 -50

 -

mA

Tstg

storage temperature

 -65

 +150

°C

Ptot

total power dissipation

        -

      500

mW



Package Includes :-

1 X 1 X 74HC4351 IC - (SMD Package) - 8-Channel Analog Demultiplexer IC (744351)

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

74HC4351 IC - (SMD Package) - 8-Channel Analog Demultiplexer IC (744351)

  • Product Code: EC-11183
  • Availability: 2275
  • Rs.69.00
  • (Excluding 18% GST)
