CH340 is a series of USB bus adapters, that provides serial, parallel or IrDA interfaces over the USB bus (note: CH340G supports serial interface only). The CH340G integrate circuit provides common MODEM signals to allow adding a UART to a computer or converting existing UART devices to USB interface.
Features:-
• Full-speed USB interface, compatible with USB 2.0 interface.
• Operates with a minimum amount of external components: a crystal and a minimum of four capacitors.
• Provides a virtual serial port for upgrading existing serial port devices or adding serial ports to a PC.
• Supports all existing applications using serial ports without the need of changing existing code.
• Hardware full-duplex serial interface with internal FIFO. Baud rate range from 50bps to 2Mbps.
• Supports common flow control signals RTS, DTR, DCD, RI, DSR and CTS.
• Supports RS232, RS422 and RS485 with external level shifting components.
• Uses CH341 driver.
• Supports 5V and 3.3V operation.
• RoHS-compliant narrow body SO-16 package.
Specifications:-
| Parameter | Min | Max | Unit |
| TA-Operating temperature | -40 | 85 | ºC |
| TS-Storage temperature | -40 | 125 | ºC |
| VCC-Supply rail voltage, reference to GND pin | -0.5 | 6.5 | V |
| VIO-IO pin voltage, reference to GND pin | -0.5 | VCC+0.5 | V |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 80.24 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

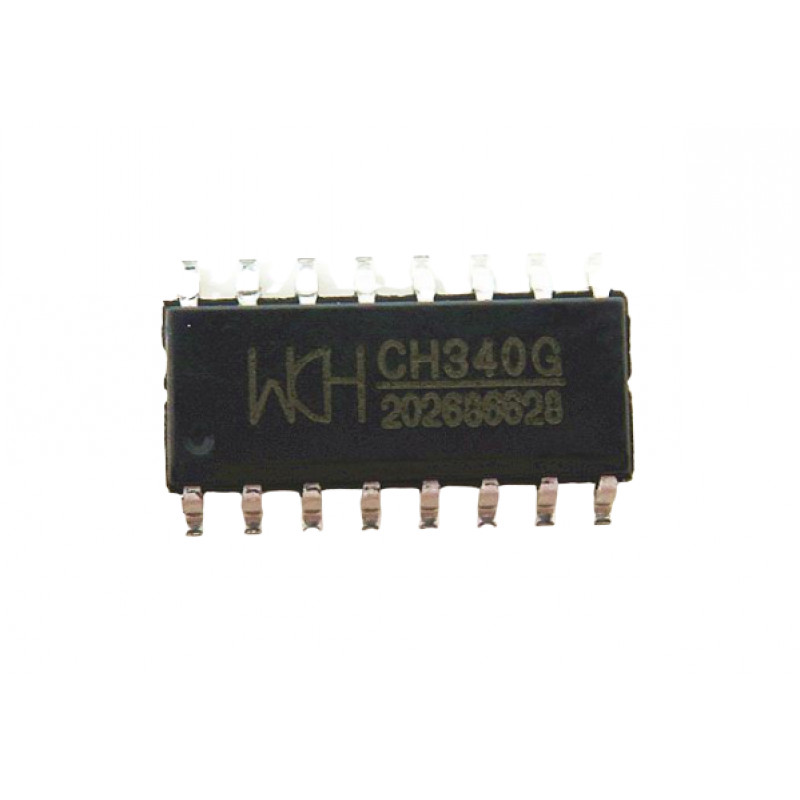

CH340G (SMD SOP-16 Package) USB to Serial TTL Converter IC
- Product Code: EC-1835
- Availability: 1004
-
Rs.56.00
- (Excluding 18% GST)
