MAX3232 Transceiver RS232 Interface SO-16 Package MAX3232 is used for TTL/CMOS to RS232 conversion. Meaning most of our Microcontrollers (PIC/ARM/Atmel) operates on TTL/CMOS logic that is it communicates through either 0V or +5V, but our computers work with the help of RS232 which operates at logic level -24V or +24V. So, if we have to interface these microcontrollers with the Computer we need to convert the TTL/CMOS logic to RS232 logic. This Product Known as MAX3232, RS232 to TTL Converter IC, AX3232CAE, MAX3232IDBRE4, MAX232CSE, MAX3232 IC, MAX3232 SMD IC, RS-232 Transceivers IC, RS-232 Transceivers SMD IC, SMD, SMD IC, Surface Mount Device.
Applications:-
- Used to Connect Microcontroller with Computers
- TTL/CMOS logic to RS232 converters
- Used in RS232 cables
Features and Specifications:-
- Operating Voltage: 3V to 5.5V
- Input Levels: ±30-V
- Operating current: 8mA
- Can work with 5V and 3.3V logic devices
- TTL/CMOS to RS232 Converter IC
- Can support two conversions at the same time (Dual drivers and Receivers)
- Easy to set up and initialize
- Operating speed: 120kbit/s
- Package: SO-16
Package Includes:-
1 x MAX3232 IC - (SMD Package) - RS-232 Transceivers IC
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 64.9 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

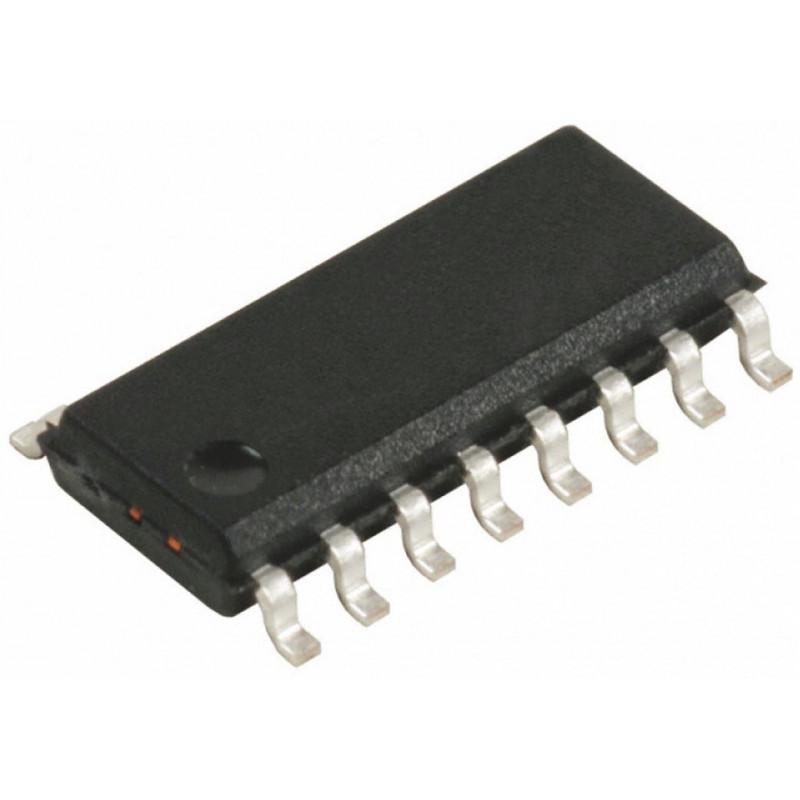

MAX3232 IC - (SMD Package) - RS-232 Transceivers IC
- Product Code: EC-0947
- Availability: 611
-
Rs.55.00
- (Excluding 18% GST)
