The SP491 is identical to the SP490 with the addition of driver and receiver tri-state enable lines.The SP490 is a low power differential line driver/receiver meeting RS-485 and RS-422 standards up to 5Mbps. Both products feature ±200mV receiver input sensitivity, over wide common mode range. The SP490 is available in 8-pin plastic DIP and 8-pin NSOIC packages for operation over the commercial and industrial temperature ranges. The SP491 is available in 14-pin DIP and 14-pin NSOIC packages for operation over the commercial and industrial temperature ranges.
FEATURES:-
• +5V Only
• Low Power BiCMOS
• Driver/Receiver Enable (SP491)
• RS-485 and RS-422 Drivers/Receivers
• Pin Compatible with LTC490 and SN75179 (SP490)
• Pin Compatible with LTC491 and SN75180 (SP491)
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 165.2 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

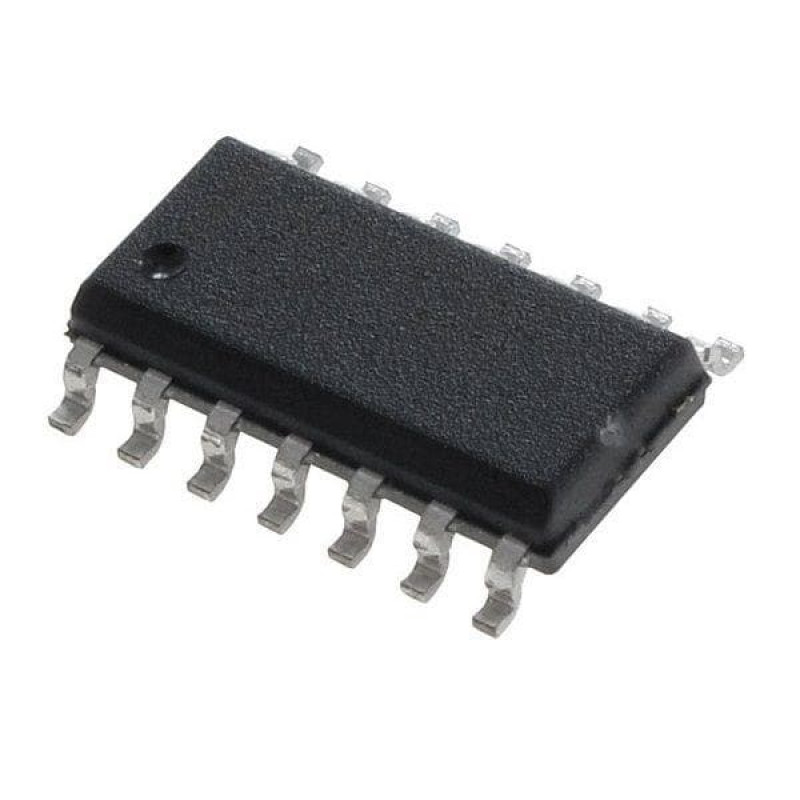

SP491 IC - (SMD Package) - Full Duplex RS-485 Transceiver IC
- Product Code: EC-2874
- Availability: 116
-
Rs.140.00
- (Excluding 18% GST)
