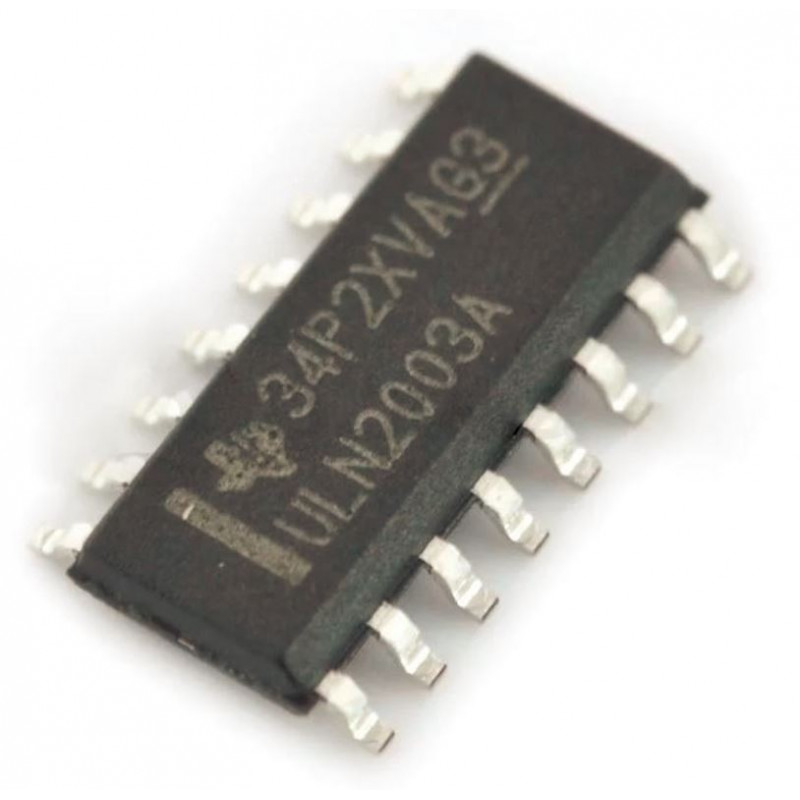

  • ULN2003 IC - (SMD Package) - 7 Darlington Transistor Arrays IC

The ULN2003 is high-voltage, high-current Darlington arrays each containing seven open collector Darlington pairs with common emitters. Each channel is rated at 500 mA and can withstand peak currents of 600 mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. These versatile devices are useful for driving a wide range of loads including solenoids, relay DC motors, LED display filament lamps, thermal printheads and high-power buffers. The ULN2003 is  supplied in a 16-pin DIP package with a copper leadframe to reduce thermal resistance.


Features:-

  • Seven Darlingtons per package
  • Output current 500 mA per driver (600 mA peak)
  • Output voltage 50 V
  • Integrated suppression diodes for inductive loads
  • Outputs can be paralleled for higher current
  • TTL/CMOS/PMOS/DTL compatible inputs
  • Input pins placed opposite to output pins to simplify layout


Specification:-

ParameterValueUnit
VO Output voltage50V
VI Input voltage (for ULN2002A/D - 2003A/D - 2004A/D)30V
IC Continuous collector current500mA
IB Continuous base current25mA
IF Clamping diode continuous current350mA
VR Clamping diode reverse voltage50V
TA Operating ambient temperature range- 40 to 85°C
TSTG Storage temperature range- 55 to 150°C
TJ Junction temperature150°C
ESD Electrostatic discharge rating - HBM2kV


Related Document:-

 ULN2003 IC Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 25.96 (Inclusive of all Taxes)
