The UA741 is a high performance monolithic operational amplifier constructed on a single silicon chip. It is intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performances in integrator, summing amplifiers and general feedback applications. The internal compensation network (6 dB/octave) ensures stability in closed loop circuits.
Features:-
• Large input voltage range
• No latch-up
• High gain
• Short-circuit protection
• No frequency compensation required
Applications:-
• Summing amplifiers
• Voltage followers
• Integrator
• Active filters
• Function generators
Specification:-
Symbol | Parameter | Value | Unit |
VCC | Supply Voltage | ±22 | V |
VIDR | Differential Input Voltage | ±30 | |
VICR | Input Voltage | ±15 | |
Tstg | Storage Temperature Range | −65 to +150 | |
Output short-circuit duration | Infinite | ||
Rthja | Thermal resistance junction to ambient | °C/W | |
SO8 | 125 | ||
Rthjc | Thermal resistance junction to case | ||
SO8 | 40 |
Related Document:-
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

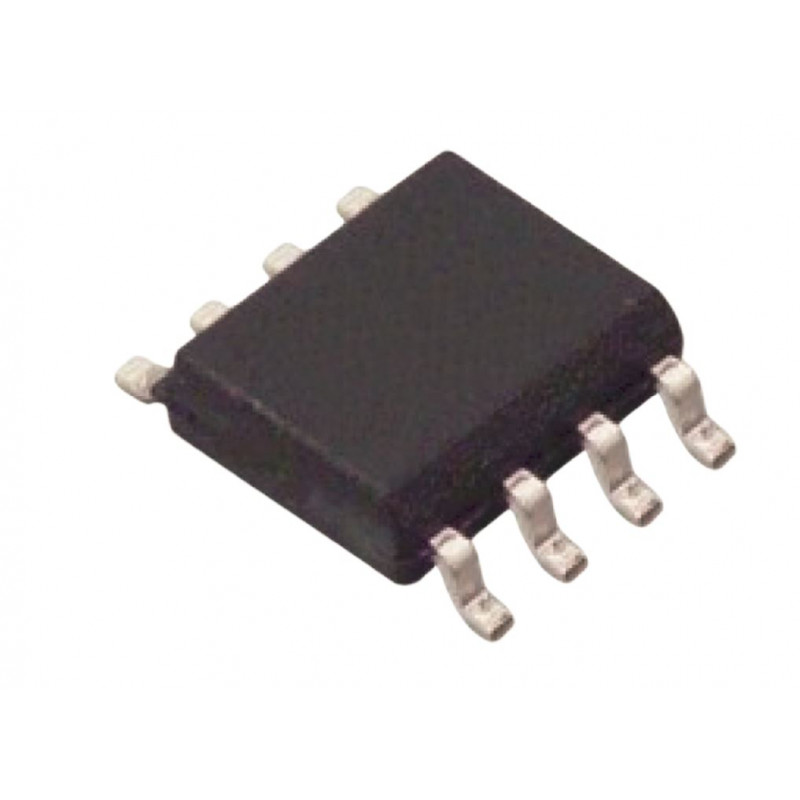

741 IC - (SMD Package) - General Purpose Op-Amp IC
- Product Code: EC-0953
- Availability: 1955
-
Rs.15.00
- (Excluding 18% GST)
