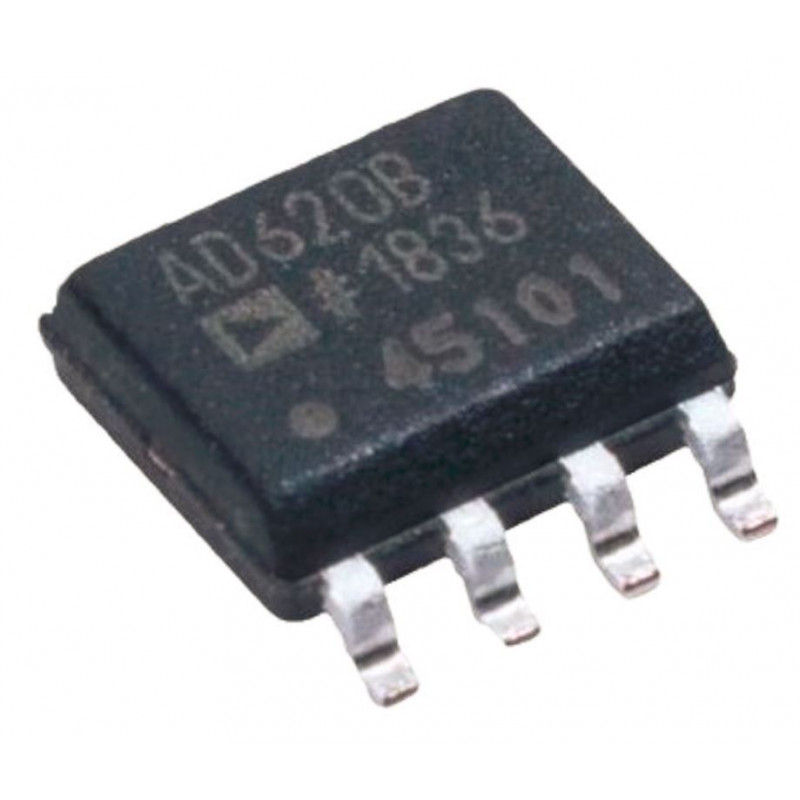

  • AD620 IC - (SMD Package) - Low Power Instrumentation Amplifier IC

The AD620 SMD is a low cost, high accuracy instrumentation amplifier that requires only one external resistor to set gains of 1 to 10,000. Furthermore, the AD620 features 8-lead SOIC and DIP packaging that is smaller than discrete designs and offers lower power (only 1.3 mA max supply current), making it a good fit for battery-powered, portable (or remote) applications. The AD620 SMD, with its high accuracy of 40 ppm maximum nonlinearity, low offset voltage of 50 μV max, and offset drift of 0.6 μV/°C max, is ideal for use in precision data acquisition systems, such as weigh scales and transducer interfaces. Furthermore, the low noise, low input bias current, and low power of the AD620 SMD make it well suited for medical applications, such as ECG and noninvasive blood pressure monitors. The low input bias current of 1.0 nA max is made possible with the use of Superϐeta processing in the input stage. The AD620 SMD works well as a pre amplifier due to its low input voltage noise of 9 nV/√Hz at 1 kHz, 0.28 μV p-p in the 0.1 Hz to 10 Hz band, and 0.1 pA/√Hz input current noise. Also, the AD620 SMD is well suited for multiplexed applications with its settling time of 15 μs to 0.01%, and its cost is low enough to enable designs with one in-amp per channel.

Features:-

Easy to use Gain set with one external resistor (Gain range 1 to 10,000)

Wide power supply range (±2.3 V to ±18 V)

Higher performance than 3 op amp IA designs

Available in 8-lead DIP and SOIC packaging

Low power, 1.3 mA max supply current

Excellent dc performance (B grade)

   - 50 μV max, input offset voltage

   - 0.6 μV/°C max, input offset drift

   - 1.0 nA max, input bias current

   - 100 dB min common-mode rejection ratio (G = 10)

Low noise

   - 9 nV/√Hz @ 1 kHz, input voltage noise

   - 0.28 μV p-p noise (0.1 Hz to 10 Hz)

Excellent ac specifications

   - 120 kHz bandwidth (G = 100)

   - 15 μs settling time to 0.01%

Applications:-

  Weigh scales

ECG and medical instrumentation

Transducer interface

Data acquisition systems

Industrial process controls

Battery-powered and portable equipment

Specification:-

Parameter Value
Supply Voltage ±18 V
Internal Power Dissipation 650 mW
Input Voltage ±VS
Differential Input Voltage 25 V
Storage Temperature Range −65˚C to +150˚C
Lead Temperature DIP 300˚C
Output Short-Circuit Duration Indefinite


Related Document:-
 AD602 SMD Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 371.7 (Inclusive of all Taxes)
