The MC33172 series are dual bipolar operational amplifiers offering both low consumption (200 µA/Amp) and good speed (2.1 MHz, 2 V/µs).Moreover, the input common mode range extends down to the lower supply rail, allowing single supply operation from +4 V to +44 V.
Features :-
- Good consumption/speed ratio: only 200 µA for 2.1 MHz, 2 V/µs
- Single (or dual) supply operation from +4 V to +44 V (±2 V to ±22V)
- Wide input common mode mode voltage range including VCC-
- Low level output voltage close to VCC- : 100 mV typical
- Pin-to-pin compatible with standard dual operational amplifiers
Specifications :-
- Power Supply Voltage : +22V
- Operating free-air temperature range : 40 to 105°C
- Thermal resistance junction to ambient : 85°C/W
- Junction temperature : 150°C
- Storage temperature : -65 to 150°C
Package Includes :-

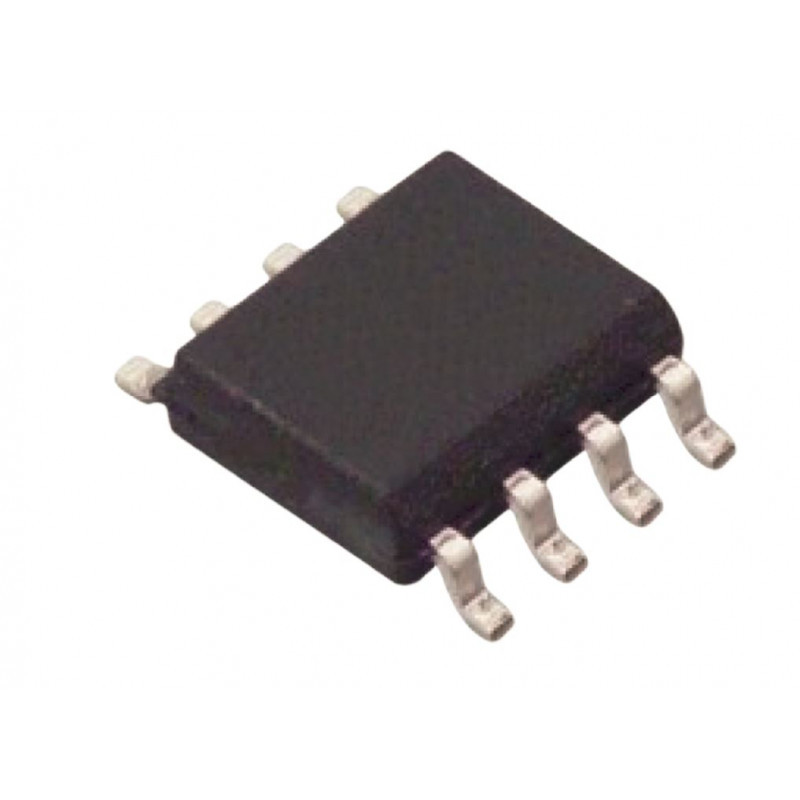

1 X MC33172 IC - (SMD Package) - Low Power Dual Bipolar Operational Amplifiers IC
* Product Images are shown for illustrative purposes only and may differ from actual product.
MC33172 IC - (SMD Package) - Low Power Dual Bipolar Operational Amplifiers IC
- Product Code: EC-11385
- Availability: 1641
-
Rs.75.00
- (Excluding 18% GST)
