The MC33174 series are quad bipolar operational amplifier offering both low consumption (200µA) and good speed (2.1MHz, 2V/µs). Moreover the Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V.

Features :-

• GOOD CONSUMPTION/SPEED RATIO : ONLY 200µA FOR 2.1MHz, 2Vµs
• SINGLE (OR DUAL) SUPPLY OPERATION FROM +4V TO +44V (±2V TO ±22V)
• WIDE INPUT COMMON MODE MODE VOLTAGE RANGE INCLUDING VCC-
• LOW LEVEL OUTPUT VOLTAGE CLOSE TO VCC- : 100mV TYPICAL
• PIN TO PIN COMPATIBLE WITH STANDARD QUAD OP-AMPs

Specifications :-

• Power Supply Voltage : +22V
• Operating free-air temperature range : 40 to 105°C
• Junction Temperature : 150°C
• Storage Temperature : -65 to 150°C

Package Includes :-

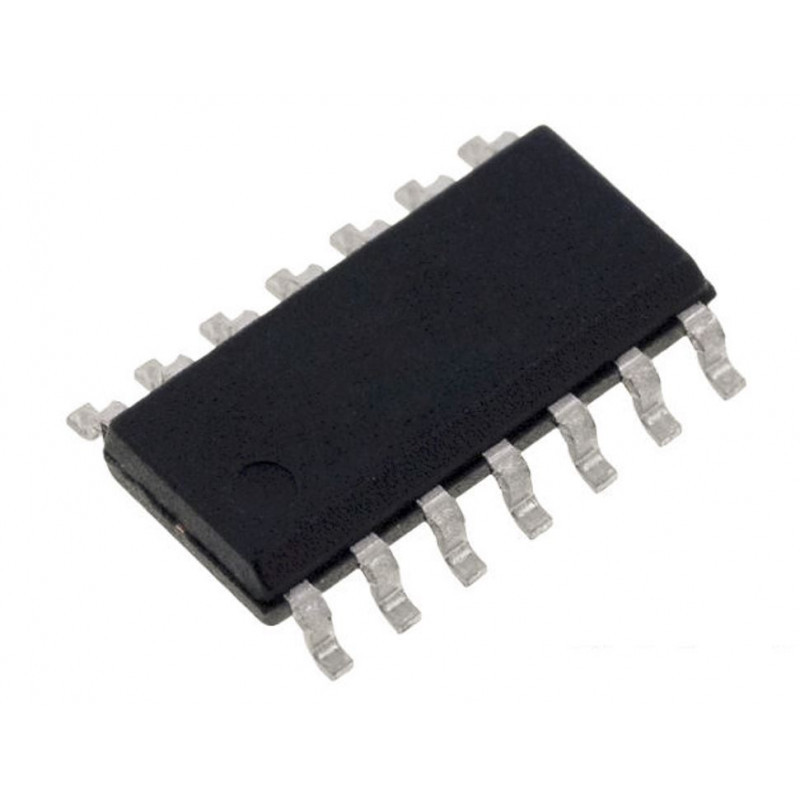

1 X MC33174 IC - (SMD Package) - Low Power Quad Bipolar Operational Amplifiers IC
