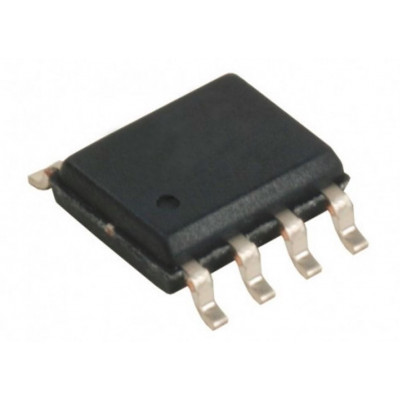

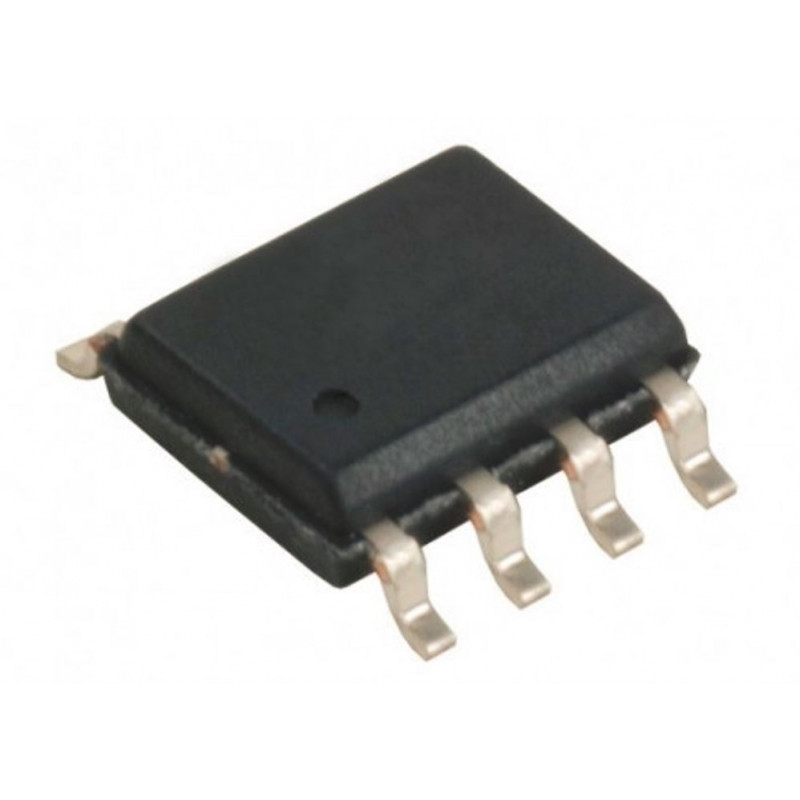

  • UPC4570 IC - (SMD Package) - Low Noise Dual Ultra Operational Amplifier (Op-Amp) IC

The UPC4570 is an ultra low-noise, wideband high slew-rate, dual operational amplifier. Input equivalent noise is three times better than the conventional 4558 type op-amps. The gain bandwidth products and the slew-rate are seven times better than 4558. In spite of fast AC performance, the UPC4570 is extremely stable under voltage-follower circuit conditions. Supply current is also improved compared with conventional wideband op-amps.


Features and Specifications:-

  • Ultra low noise: en = 4.5 nV/√Hz
  • High slew rate: 7 V/μs
  • High gain bandwidth product: GBW = 15 MHz at 100 kHz
  • Internal frequency compensation
  • Max Voltage between V+ and V−: −0.3V to +36V
  • Max Differential Input Voltage (VID): +30V
  • Input Voltage (VI): (V− − 0.3)V to (V+ + 0.3)V
  • Output Voltage (VO): (V− − 0.3)V to (V+ + 0.3)V
  • Max Power Dissipation (PT): 350mW
  • Output Short Circuit Duration (ts): 10 sec
  • Operating Ambient Temperature (TA): −20°C to +80°C
  • Storage Temperature (Tstg): −55°C to +125°C


Package Includes:-

1 x UPC4570 IC - (SMD Package) - Low Noise Dual Ultra Operational Amplifier (Op-Amp) IC

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 200.6 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

UPC4570 IC - (SMD Package) - Low Noise Dual Ultra Operational Amplifier (Op-Amp) IC

  • Product Code: EC-1768
  • Availability: 553
  • Rs.235.00
  • (Excluding 18% GST)
