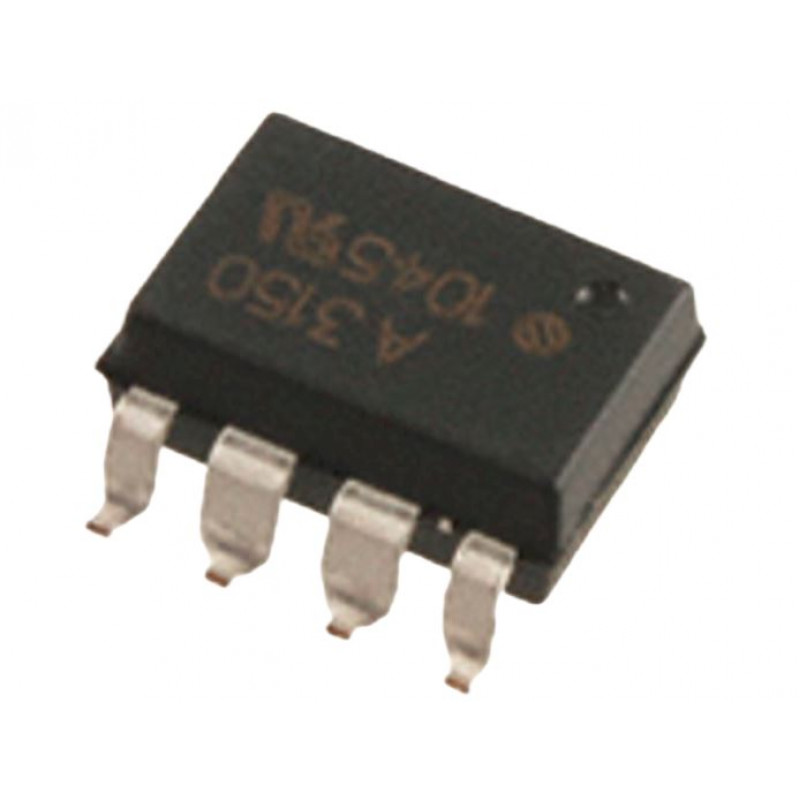

  • HCPL-3150 (A3150) IC - (SMD Package) - IGBT Gate Drive Optocoupler IC
The HCPL-3150 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving IGBTs with ratings up to 1200 V/50 A. For IGBTs with higher ratings, the HCPL-3120 can be used to drive a discrete power stage which drives the IGBT gate.

Features:-

• P0.5 A Minimum Peak Output Current

• 15 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 1500 V

• 1.0 V Maximum Low Level Output Voltage (VOL) Eliminates Need for Negative Gate Drive

• ICC = 5 mA Maximum Supply Current

• Under Voltage Lock-Out Protection (UVLO) with Hysteresis

• Wide Operating VCC Range: 15 to 30 Volts

• 500 ns Maximum Switching Speeds

• Industrial Temperature Range: -40°C to 100°C

Applications:-

• Isolated IGBT/MOSFET Gate Drive

• AC and Brushless DC Motor Drives

• Industrial Inverters

• Switch Mode Power Supplies (SMPS)

Specification:-

Symbol Parameter Min Max Units
TS Storage Temperature -55 125  °C
TA Operating Temperature -40 100  °C
IF(avg) Average Input Current
25 mA
IF(peak) Peak Input Current
0.6 mA
 IF(tran) Peak Transient Input Current
1 A
 VR  Reverse Input Voltage
5 V
VO(PEAK) Output Voltage 0 VCC V
PO Output Power Dissipation
250 mW
PT Total Power Dissipation
295 mW

Related Document:-

HCPL-3150 SMD Data Sheet
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 233.64 (Inclusive of all Taxes)
