The ADG512 is a monolithic CMOS IC containing four independently selectable analog switches. These switches feature low, well-controlled on resistance and wide analog signal range, making them ideal for precision analog signal switching.
These switch arrays are fabricated using Analog Devices’ advanced linear compatible CMOS (LC2 MOS) process which offers the additional benefits of low leakage currents, ultralow power dissipation and low capacitance for fast switching speeds with minimum charge injection. These features make the ADG512 the optimum choice for a wide variety of signal switching tasks in precision analog signal processing and data acquisition systems.
The ability to operate from single +3 V, +5 V or ±5 V bipolar supplies make the ADG512 perfect for use in battery-operated instruments, 4–20 mA loop systems and with the new generation of DACs and ADCs from Analog Devices. The use of 5 V supplies and reduced operating currents give much lower power dissipation than devices operating from ±15 V supplies.
FEATURES of ADG512 IC:-
- +3 V, +5 V or 5 V Power Supplies
- Ultralow Power Dissipation (<0.5 W)
- Low Leakage (<100 pA)
- Low On Resistance (<50 )
- Fast Switching Times
- Low Charge Injection
- TTL/CMOS Compatible
- 16-Lead SOIC Package
APPLICATIONS of ADG512 IC:-
- Battery-Powered Instruments
- Single Supply Systems
- Remote Powered Equipment
- 5 V Supply Systems
- Computer Peripherals such as Disk Drives
- Precision Instrumentation
- Audio and Video Switching
- Automatic Test Equipment
- Precision Data Acquisition
- Sample Hold Systems
- Communication Systems
- Compatible with 5 V Supply DACs and ADCs such as AD7840/AD7848, AD7870/AD7871/AD7872/AD7874/AD7875/AD7876/AD7878
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 200.6 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

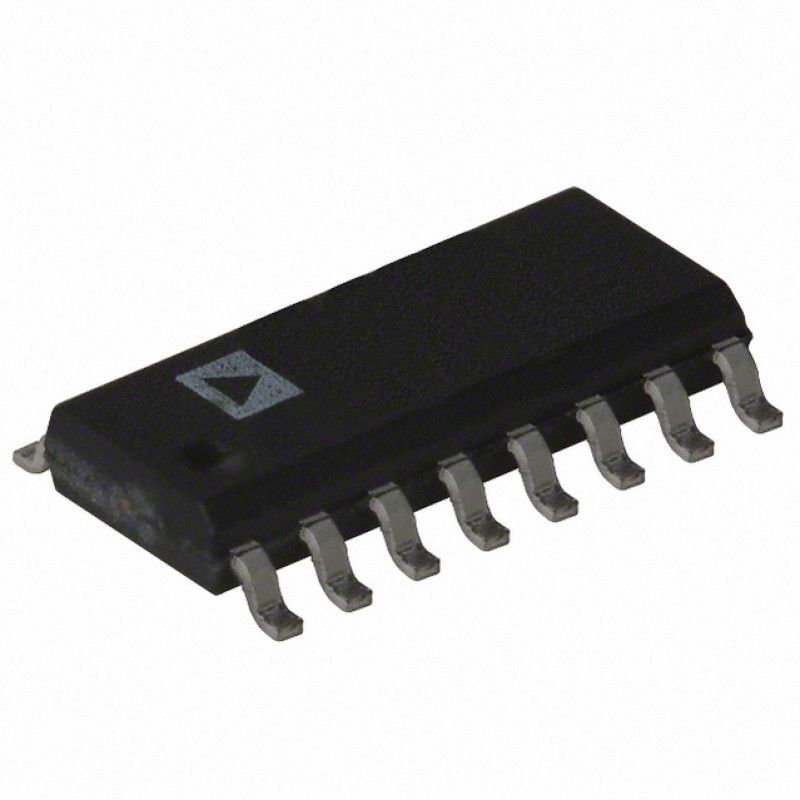

ADG512 IC - (SMD Package) - LC2MOS Precision 5V/3V Quad SPST Switches IC
- Product Code: EC-2856
- Availability: 137
-
Rs.170.00
- (Excluding 18% GST)
