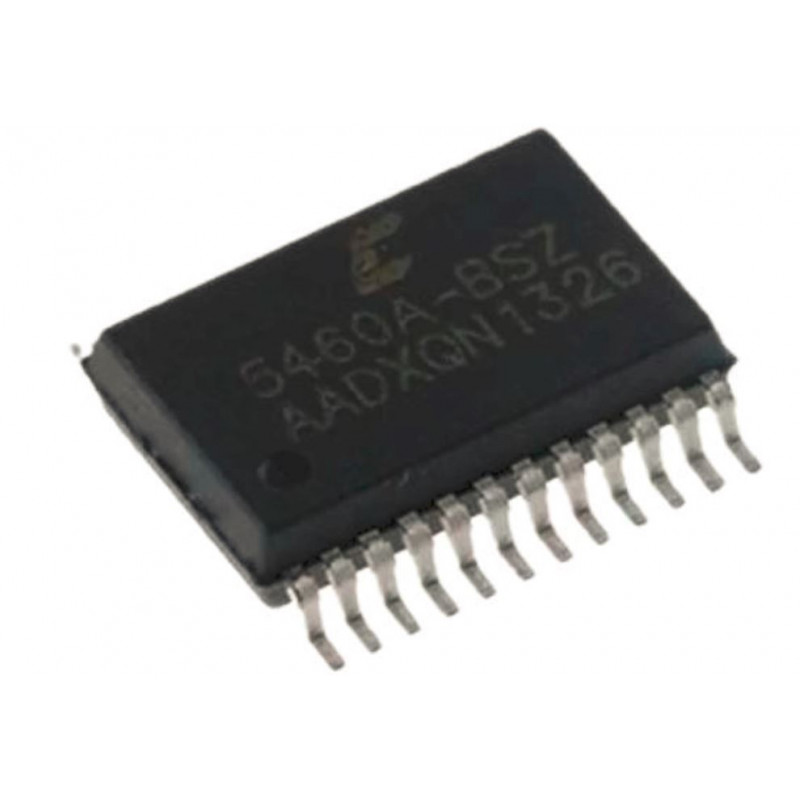

  • CS5460A-BS IC - (SMD SSOP-24 Package) - Single Phase Bi-Directional Power/Energy IC

The CS5460A is a highly integrated power measurement solution which combines two Analog-to-digital Converters (ADCs), high-speed power calculation functions, and a serial interface on a single chip. It is designed to accurately measure and calculate: Real (True) Energy, Instantaneous Power, IRMS, and VRMS for single phase 2- or 3-wire power metering applications. The CS5460A interfaces to a low-cost shunt resistor or transformer to measure current, and to a resistive divider or potential transformer to measure voltage. The CS5460A features a bi-directional serial interface for communication with a microcontroller and a pulse output engine for which the average pulse frequency is proportional to the real power. The CS5460A has on-chip functionality to facilitate AC or DC system-level calibration. The “Auto-boot” feature allows the CS5460A to function ‘stand-alone’ and to initialize itself on system power-up. In Auto-boot Mode, the CS5460A reads the calibration data and start-up instructions from an external EEPROM. In this mode, the CS5460A can operate without a microcontroller, in order to lower the total bill-of-materials cost

Features:-

 Energy Data Linearity: ±0.1% of Reading over 1000:1 Dynamic Range.

 On-Chip Functions: (Real) Energy, I

 V, IRMS and VRMS, Energy-to-Pulse Conversion

 Smart “Auto-boot” Mode from Serial EEPROM Enables Use without MCU.

 AC or DC System Calibration

 Mechanical Counter/Stepper Motor Driver

 Meets Accuracy Spec for IEC 687/1036, JIS

 Typical Power Consumption <12 mW

 Interface Optimized for Shunt Sensor

 V vs. I Phase Compensation

 Ground-Referenced Signals with Single Supply

 On-chip 2.5 V Reference (MAX 60 ppm/°C drift)

 Simple Three-wire Digital Serial Interface

 Watch Dog Timer

 Power Supply Monitor

 Power Supply Configurations VA+ = +5 V; VA- = 0 V; VD+ = +3.3 V to +5 V

Specification:-

Symbol Parameters Min Max Units
IIN Input Current, Any Pin Except Supplies
 ±10  mA
 IOUT Output Current
 ±25 mA
 PD Power Dissipation
500 mW
VINA Analog Input Voltage (VA-) - 0.3 (VA+) + 0.3 V
 VIND Digital Input Voltage DGND - 0.3  (VD+) + 0.3 V
TA Ambient Operating Temperature -40 85 °C
 Tstg Storage Temperature -65 150 °C


Related Document:-

 CS5460 SMD Data Sheet
