The TD62064AFG are high-voltage, high-current darlington drivers comprised of four NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads.
Applications include relay, hammer, lamp and stepping motor drivers.
Features:-
• Output current (single output) 1.5 A (max)
• High sustaining voltage output 50 V (min)
• Output clamp diodes
• Input compatible with TTL and 5 V CMOS
• GND terminal = Heat sink
• Package type-AFG: HSOP-16 pin
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 289.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

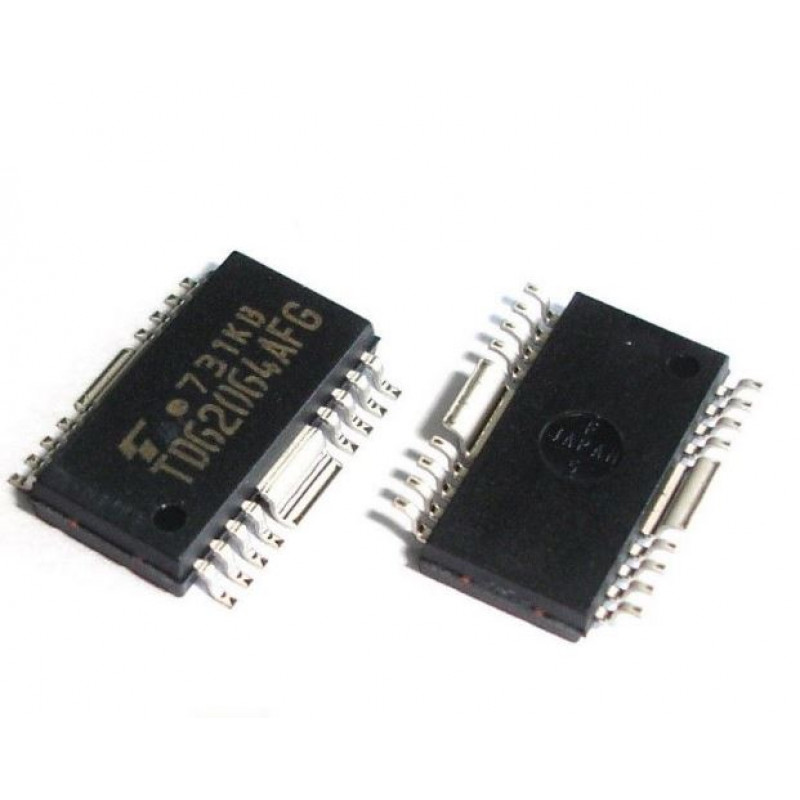

TD62064AFG IC - (SMD Package) - 4-Channel High-Current Darlington Sink Driver IC
- Product Code: EC-2876
- Availability: 79
-
Rs.245.00
- (Excluding 18% GST)
