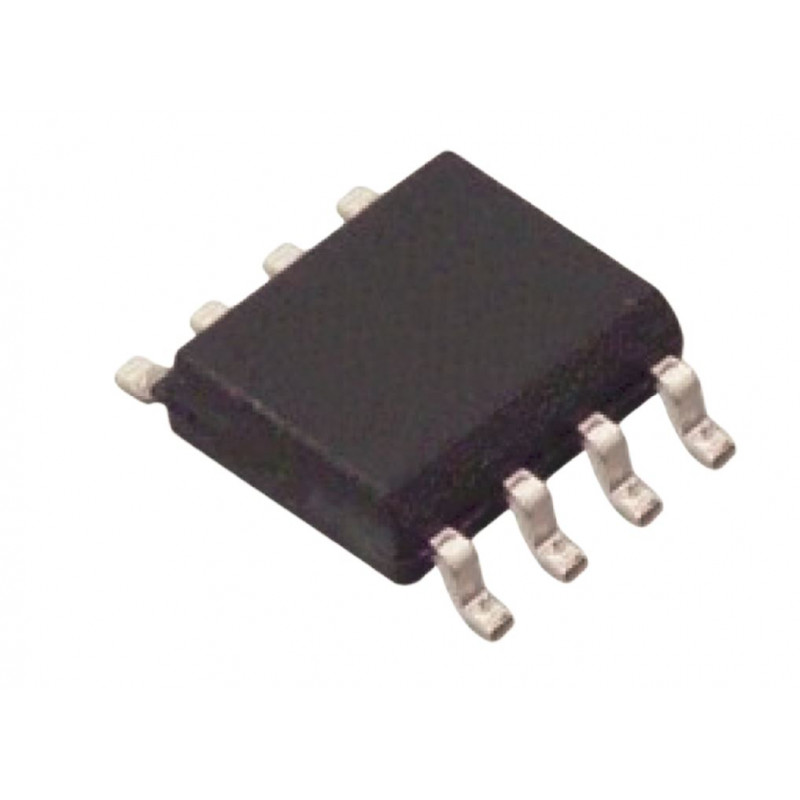

  • DS1307 IC - (SMD Package) - Real Time Clock (RTC) IC
The MCP30083008 devices are successive approximation ID-bit Analog- to-Digital (AID) converters With on-board sample and hold circuitry. The MCP3008 is  programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) are specified at ± I LSB_ Communication With the devices is accomplished using a simple serial interface compatible With the SPI protocol. The devices are capable Of conversion rates Of up to 200 ksps. The MCP3008 devices operate over a broad voltage range (2_7V - 5_5V)_ Low-current design permits operation With typical standby currents Of only 5 nA and typical active currents Of 320 PA. The MCP3008 is offered in 16- pin PDIP and SOIC packages.

Features:-

• 10-bit resolution

• ± 1 LSB max DNL

• ± 1 LSB max INL

• 4 (MCP3004) or 8 (MCP3008) input channels

• Analog inputs programmable as single-ended or pseudo-differential pairs

• On-chip sample and hold

• SPI serial interface (modes 0,0 and 1,1)

• Single supply operation: 2.7V - 5.5V

• 200 ksps max. sampling rate at VDD = 5V

• 75 ksps max. sampling rate at VDD = 2.7V

• Low power CMOS technology

• 5 nA typical standby current, 2 µA max.

• 500 µA max. active current at 5V

• Industrial temp range: -40°C to +85°C

• Available in PDIP, SOIC and TSSOP packages

Applications:-

• Sensor Interface

• Process Control

• Data Acquisition

• Battery Operated Systems

Specification:-

Parameter Values
Voltage Range on Any Pin Relative to Ground -0.5V to +7.0V
Operating Temperature Range :
Commercial 0°C to +70°C
 Industrial -40°C to +85°C
Storage Temperature Range -55°C to +125°C
Soldering Temperature +260°C for 10 seconds


Related Document:-

DS1307 IC SMD Data Sheet
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 29.5 (Inclusive of all Taxes)
