The 78M15 is a positive voltage regulators are identical to the popular 78M15 Series devices, except that they are specified for only half the output current. Like the 78M15 devices, the 78M15 three−terminal regulators are intended for local, on−card voltage regulation. Internal current limiting, thermal shutdown circuitry and safe−area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions. Maximum output current, with adequate heat sinking is 500 mA.
Features:-
• No External Components Required
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe−Area Compensation
• 78M15 High Accuracy (±2%) Available for 5.0 V, 8.0 V, 12 V and 15 V
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
Specification:-
| Symbol | Parameter | Rating | Unit |
| VI | Input Voltage | 35 | V |
| VO | Output Voltage | 12 | V |
| IPK | Peak Current | 650 | mA |
| TOPR | Operating Temperature Range | 150 | °C |
| TSTG | Storage Temperature Range | −65 to +150 | °C |
Related Document:-
78M15 SMD Data Sheet
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 22.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

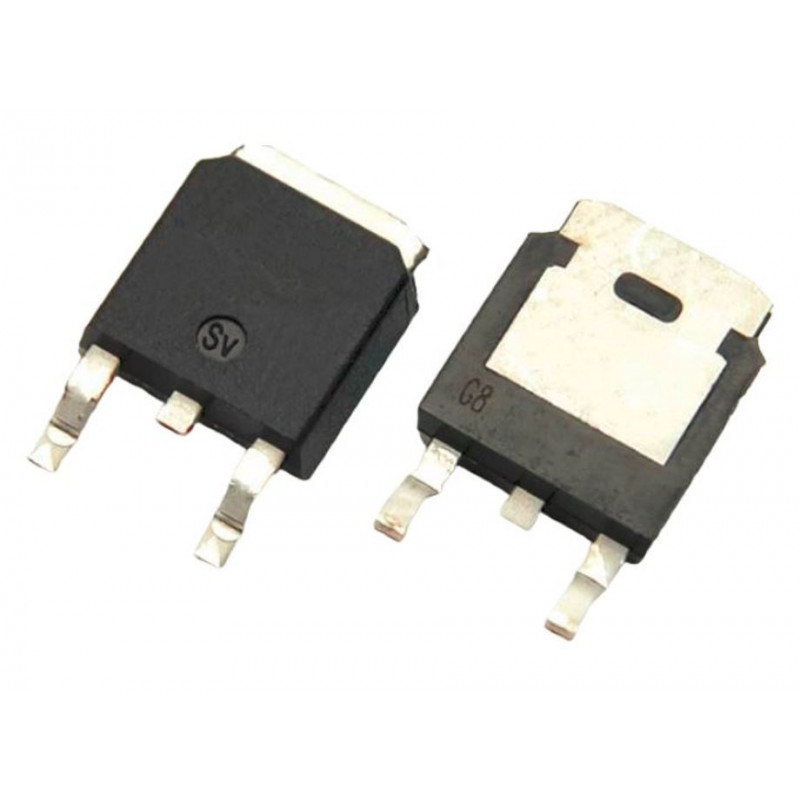

78M15 - 7815 - (SMD TO-252/DPAK Package) - 15V Positive Voltage Regulator IC
- Product Code: EC-1909
- Availability: 2886
-
Rs.19.00
- (Excluding 18% GST)
