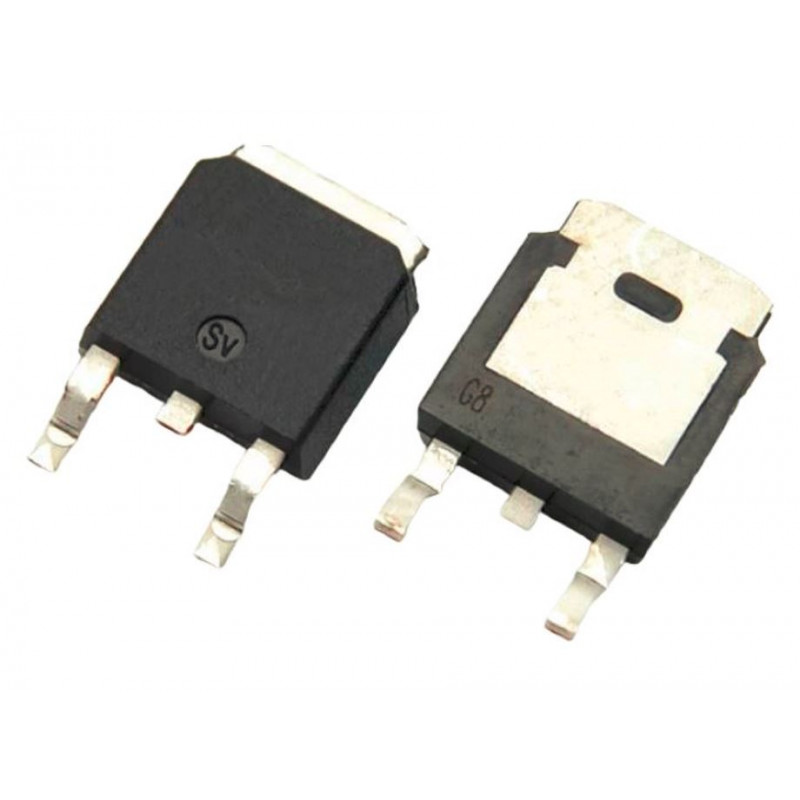

  • 79M12 - 7912 - (SMD TO-252/DPAK Package) - 12V Negative Voltage Regulator IC

The 78M12 is a fixed output negative voltage regulators are intended as complements to the popular 78M12  series devices. Available in fixed output voltage options of −5.0 V, −8.0 V, −12 V and −15 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation, making them remarkably rugged under most operating conditions. With adequate heat sinking they can deliver output currents in excess of 0.5 A.

Features:-

 Output Voltage: -5 & -12V

● Output current up to 1A

● No external components required

● Internal thermal overload protection

● Internal short-circuit current limiting

● Output transistor safe-area compensation

● Output voltage offered in 4% tolerance

Specification:-

Symbol Parameter Rating Unit
VI  Input Voltage -35 V
PD Power Dissipation 65 °C/W
TJ Operating Temperature Range −40 to +150 °C
TSTG Storage Temperature Range −65 to +150 °C


Related Document:-

 79M12 SMD Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 22.42 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

79M12 - 7912 - (SMD TO-252/DPAK Package) - 12V Negative Voltage Regulator IC

  • Product Code: EC-1912
  • Availability: 3589
  • Rs.19.00
  • (Excluding 18% GST)
