The 79M15 is a fixed output negative voltage regulators are intended as complements to the popular 79M15 devices. Available in fixed output voltage options of −5.0 V, −8.0 V, −12 V and −15 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation, making them remarkably rugged under most operating conditions. With adequate heat sinking they can deliver output currents in excess of 0.5 A.
Features:-
• No External Components Required
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe−Area Compensation
• Also Available in Surface Mount DPAK (DT) Package
• Pb−Free Packages are Available
Specification:-
| Symbol | Parameter | Rating | Unit |
| VI | Input Voltage | -35 | V |
| PD | Power Dissipation | 65 | °C/W |
| TJ | Operating Temperature Range | −40 to +150 | °C |
| TSTG | Storage Temperature Range | −65 to +150 | °C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 22.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

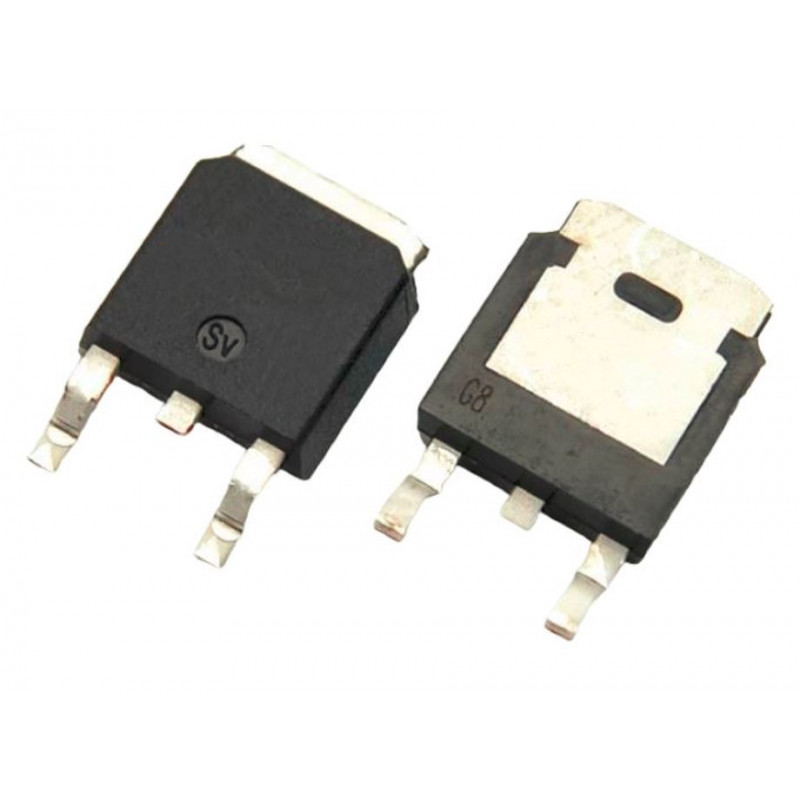

79M15 - 7915 - (SMD TO-252/DPAK Package) - 15V Negative Voltage Regulator IC
- Product Code: EC-1911
- Availability: 3341
-
Rs.19.00
- (Excluding 18% GST)
