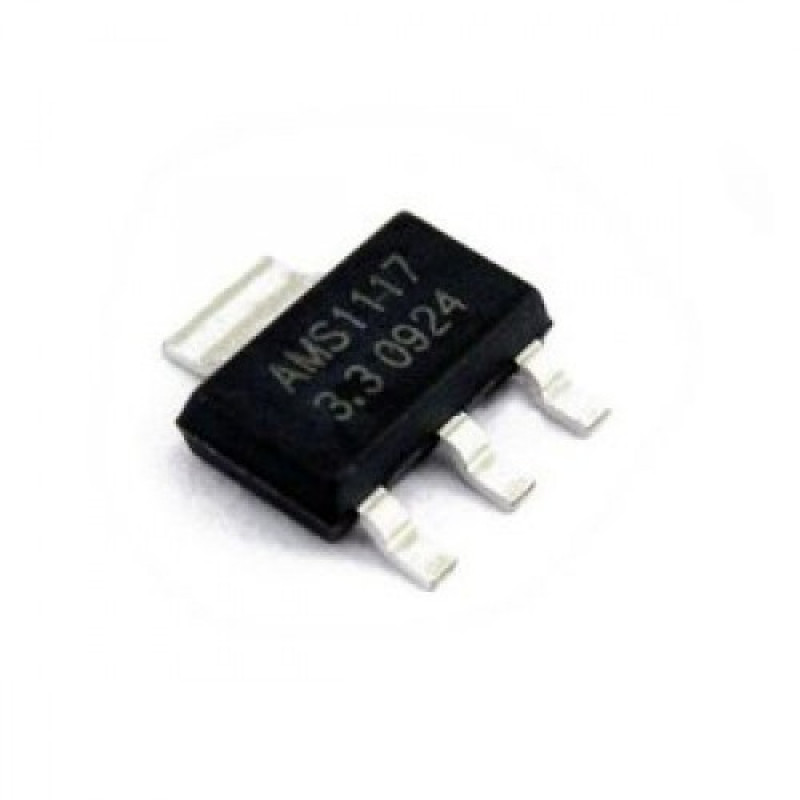

  • AMS1117-3.3V - SMD SOT-23 Package -  Voltage Regulator IC
AMS1117-3.3V, 1A, SOT-223 Voltage Regulator IC is a series of low dropout three -terminal regulators with a dropout of 3.3V at 1A load current. AMS 1117 features a very low standby current 2mA compared to 5mA of a competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V, AMS1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors.

AMS 1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses a trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%

Features of AMS1117-3.3V Voltage Regulator:-
  • Output Voltage: 3.3V
  • Space Saving SOT-223 Package
  • Current Limiting and Thermal Protection
  • Output Current 800mA
  • Line Regulation 0.2% (Max)
  • Load Regulation 0.4% (Max)
  • Temperature Range: 0˚C to 125˚C

Applications of AMS1117-3.3V Voltage Regulator:-
  • 2.85V Model for SCSI-2 Active Termination
  • Post Regulator for Switching DC/DC Converter
  • High Efficiency Linear Regulators
  • Battery Charger
  • Battery Powered Instrumentation
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 15.34 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

AMS1117-3.3V - SMD SOT-23 Package - Voltage Regulator IC

  • Product Code: EC-3017
  • Availability: 4940
  • Rs.13.00
  • (Excluding 18% GST)
