The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608 switches at 1.2MHz and allows the use of tiny, low-cost capacitors and inductors 2mm or less in height. Internal soft-start results in a small inrush current and extends battery life. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. Featured by Sharvi Electronics The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The MT3608 is available in a small 6-pin SOT-23 package.
Specifications:-
- Manufacturer: Aerosemi
- Part No: MT3608
- Input Voltage: 2V ~ 24V
- Output Voltage: Up ~ 28V
- Output Voltage: Adjustable
- Switch Current Limit: Internal 4A
- Switching Frequency: 1.2MHz Fixed
- Efficiency: up ~ 97%
- Integrated 80mΩ Power MOSFET
- Internal Compensation
- Automatic Pulse Frequency Modulation Mode at Light Loads
- Package: SOT23-6
Applications:-
- Battery-Powered Equipment
- Set-Top Boxed
- LCD Supply
- DSL and Cable Modems and Routers
- Networking cards powered from PCI.
Package Includes:-
1 x MT3608 High Efficiency Step Up Converter IC - (SMD SOT23-6 Package)
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 10.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

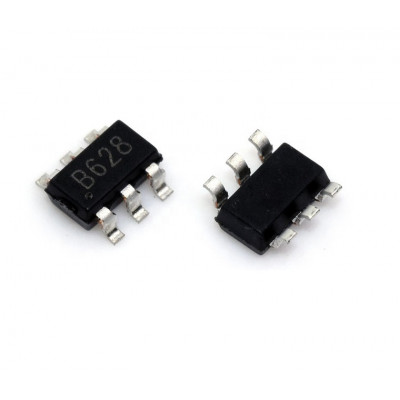

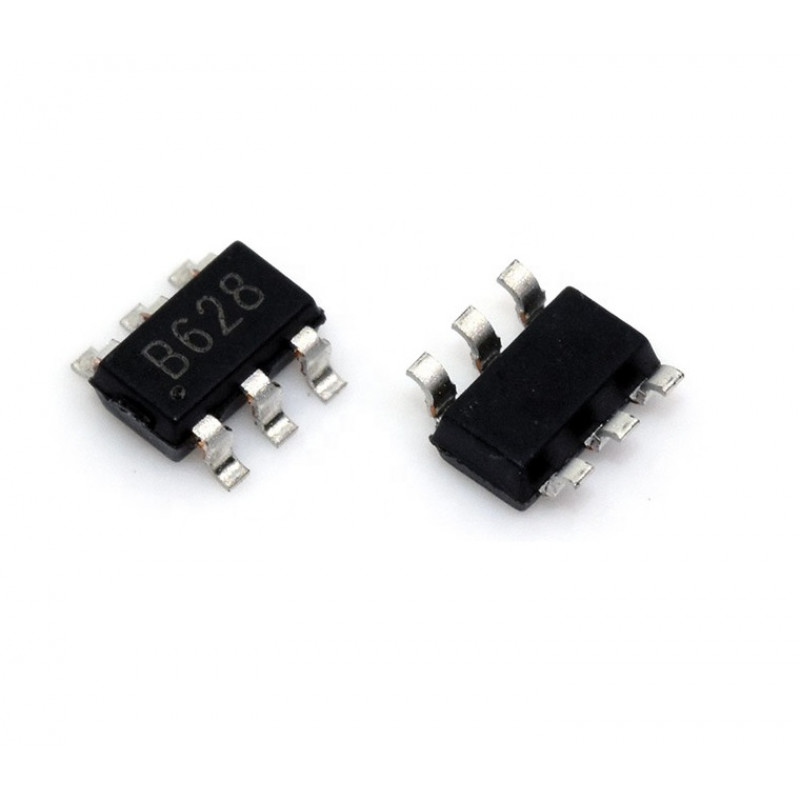

MT3608 High Efficiency Step Up Converter IC - (SMD SOT23-6 Package)
- Product Code: EC-17373
- Availability: 4667
-
Rs.9.00
- (Excluding 18% GST)
