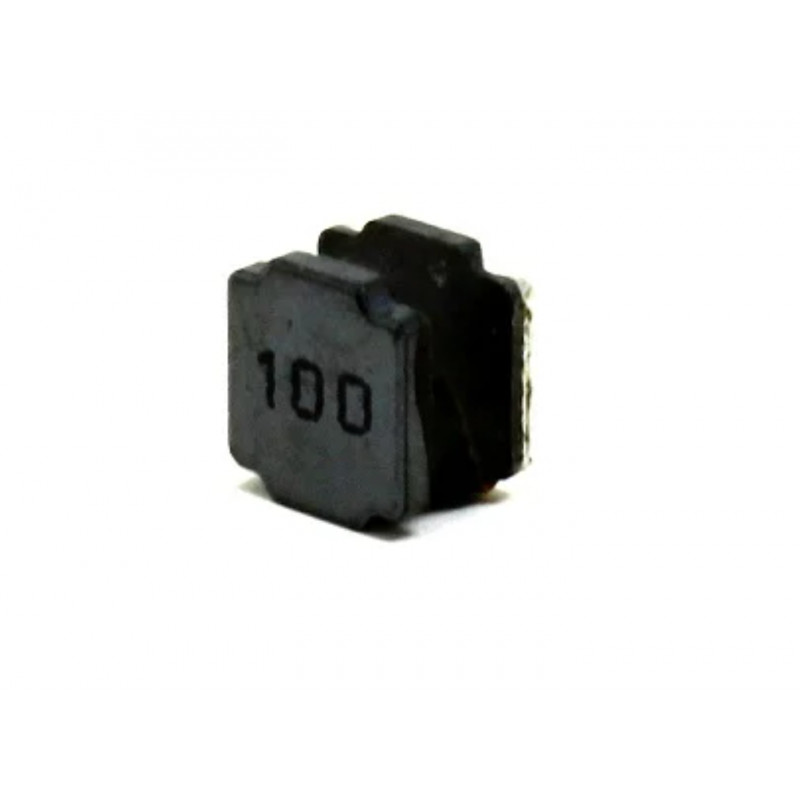

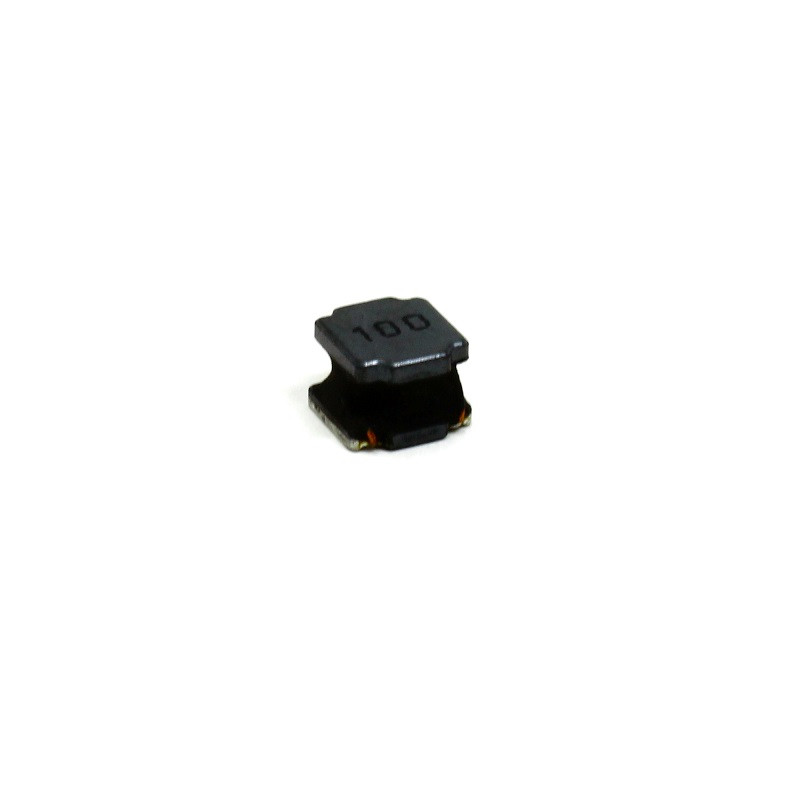

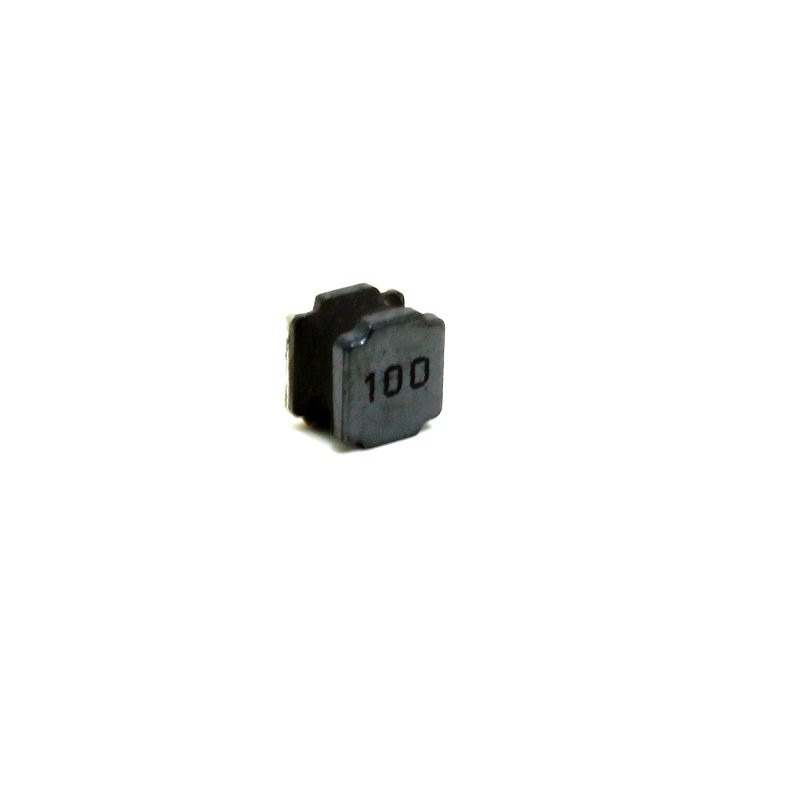

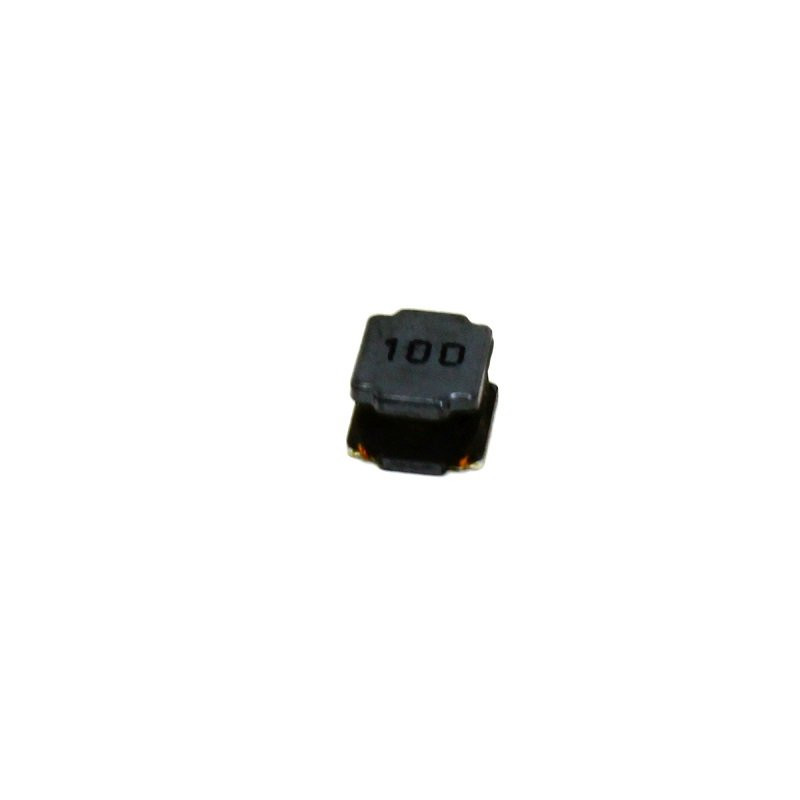

This is an LPS6235-103MLC 10uH 1.4A Coupled Inductor. It is a Coupled Inductor with a low DCR and high rated current surface mount SMD power inductor. These are lead-free products, RoHS compliant. These inductors are widely used in buck converter, laptop, displays, network communication equipment, and etc.


Features:

  1. Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
  2. Metallization on ferrite core results in excellent shock resistance and damage-free durability
  3. Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
  4. 30% higher current rating than conventional inductors of equal size
  5. Take up less PCB real estate and save more power

Package Includes:

1 x LPS6235-103MLC 10uH 1.4A Coupled Inductor



Specifications:

Inductance

10uH

Tolerance(%)

20

Mounting Type

SMD

DC Resistance (DCR)(mΩ) at 20C

0.07

Current Rating (A)

1.4

Length (mm)

6

Width (mm)

6

Height (mm)

3.5

Weight (gm)

0.8



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 114.46 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

10uH 1.4A SMD Coupled Inductor

  • Product Code: EC-6919
  • Availability: 3
  • Rs.98.00
  • (Excluding 18% GST)
