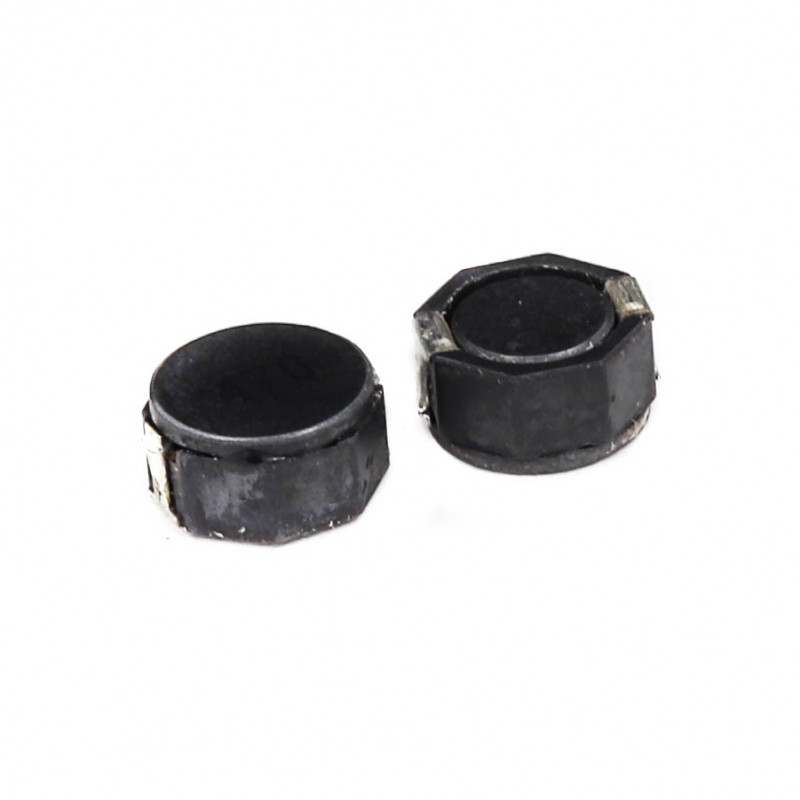

47uH 2A SMD power inductor is a surface mount device. It has a ferrite drum as the core on which a wire is wound. This inductor has a magnetic shield and is RoHS compliant. The power inductor has a moisture sensitivity level of 1 i.e. this power inductor has high moisture resistance.
This type of inductor has pads for surface mounting.
Applications:
Ideally used in Mobile phone, MP3, PDA, HDD, DSC/DVC, etc as DC-DC converter inductors.
Features:
- Ferrite drum core construction.
- Compact in size.
- Magnetic shield.
- Moisture resistant.
- Surface mount.
- RoHS compliant.
Package Includes:
1 x 8D43 47uH 2A SMD power inductor
Specifications:
| Inductance(uH) | 47 |
| Mounting Type | SMD/SMT |
| Material Core | Ferrite |
| Tolerance(%) | 30 |
| DC Resistance (DCR)(mΩ) at 20°C | 150 |
| Current Rating (A) | 1.8 |
| Frequency (kHz) | 100 |
| Operating Temperature Range (°C) | -40 to 100 |
| Length (mm) | 9 |
| Width (mm) | 8 |
| Height (mm) | 4.2 |
| Weight (gm) | 1 (approx) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 23.6 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

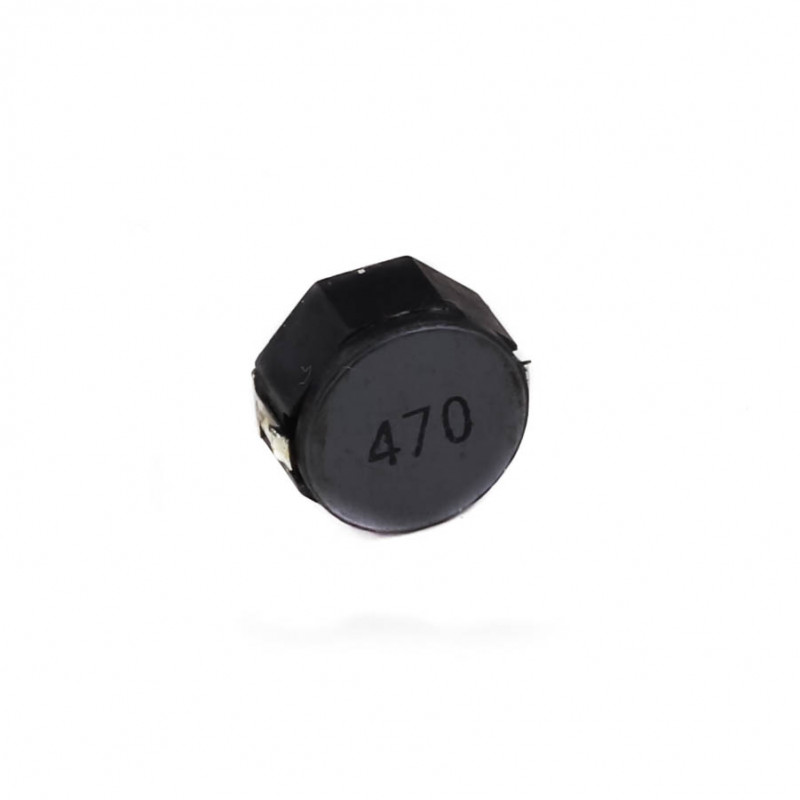

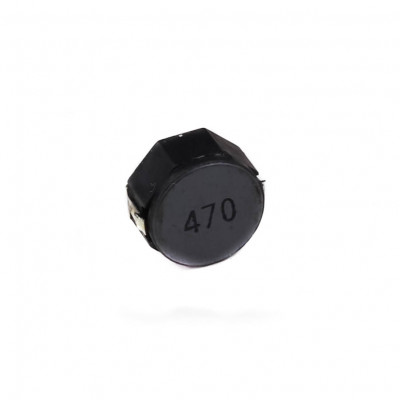

8D43 47uH (470) 2A SMD Power Inductor
- Product Code: EC-6886
- Availability: 26
-
Rs.18.00
- (Excluding 18% GST)
