CD43 3.3uH 1A SMD Power Inductor is a surface mount device. It has a ferrite drum as the core on which a wire is wound. This inductor has a magnetic shield and is RoHS compliant. The power inductor has a moisture sensitivity level of 1 i.e. this power inductor has high moisture resistance.

This type of inductor has pads for surface mounting.


Applications:

Ideally used in Mobile phone, MP3, PDA, HDD, DSC/DVC, etc as DC-DC converter inductors.


Features:

  1. Ferrite drum core construction.
  2. Compact in size.
  3. Magnetic shield.
  4. Moisture resistant.
  5. Surface mount.
  6. RoHS compliant.


Package Includes:

1 x CD43 3.3uH 1A SMD Power Inductor



Specifications:

Inductance(uH)

3.3

Mounting Type

SMD/SMT

Material Core

Ferrite

Tolerance(%)

20

Current Rating (mA)

2

DC Resistance (DCR)(mΩ) at 20°C

86.2

Frequency (MHz)

7.96

Operating Temperature (°C)

-40 to 100

Length (mm)

4.3

Width (mm)

4

Height (mm)

3.2

Weight (gm)

1 (approx)



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 37.76 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

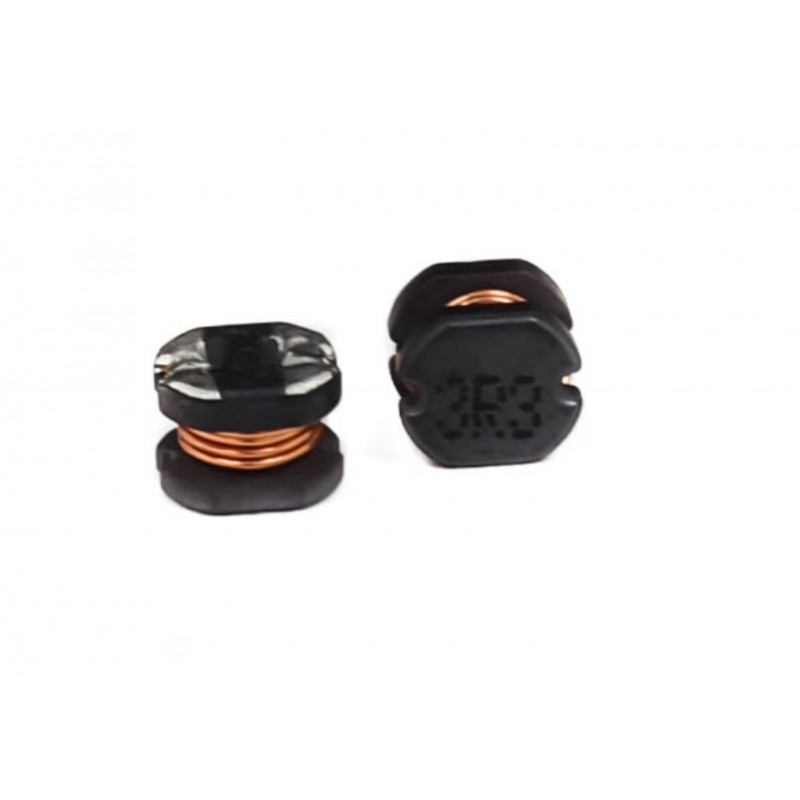

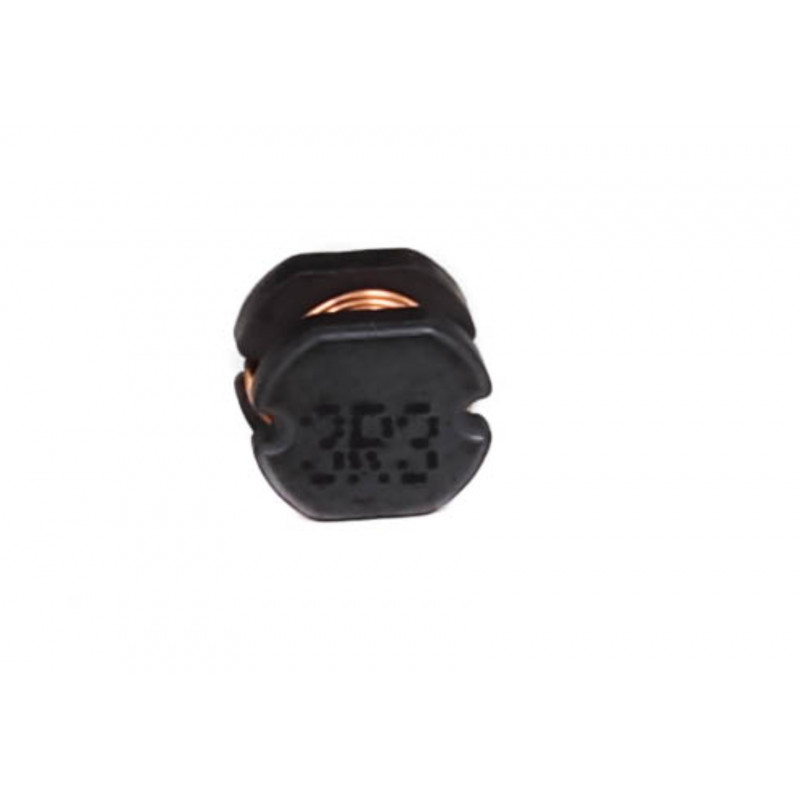

CD43 3.3uH (3R3) 1A SMD Power Inductor

  • Product Code: EC-6888
  • Availability: 13
  • Rs.32.00
  • (Excluding 18% GST)
