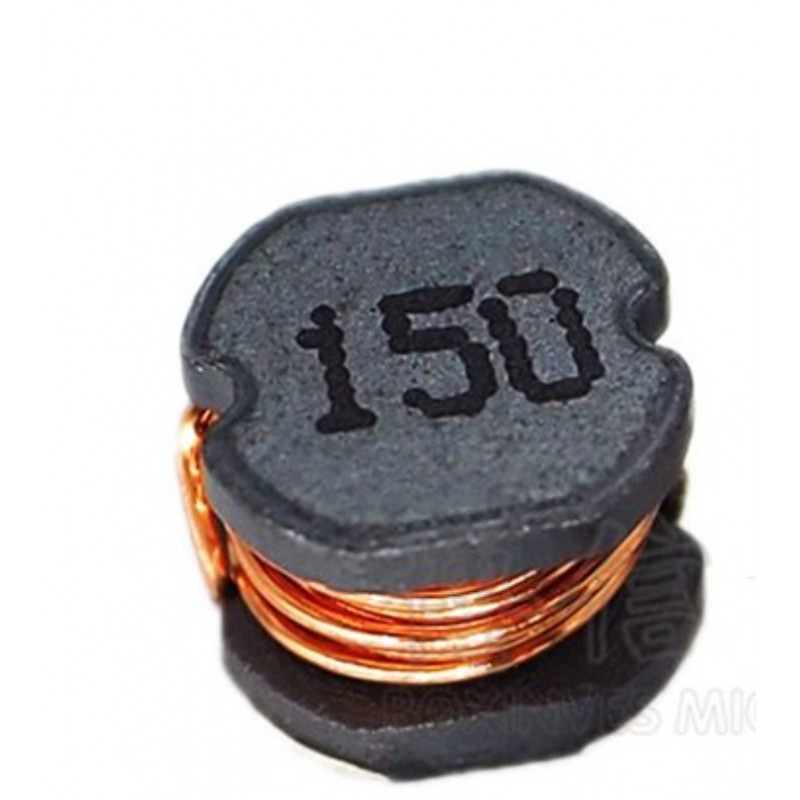

A CD54 15uH Surface Mount Power Inductor (15 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads for surface mounting.

When we apply a current through the inductor, a magnetic field is generated around it.

The magnetic field generated by using a magnetic core will be much much stronger than others.

Applications:

Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors.

Features:

1. Ferrite drum core construction.
2. Magnetically unshield.
3. Moisture Sensitivity Level: 1
4. Halogen Free available.
5. Operating temperature range: -40°C+100°C
   (including coils self temperature rise)
6. Storage temperature range: -40°C+100°C
7. Solder reflow temperature: 260 peak.
8. LxWxH: 5 x 5 x 4 mm
9. Product weight: 0.4 gm(Ref.)

Package Includes:

1 x CD54 15uH Surface Mount Power Inductor (15 microH)

Specifications:

Material Core	Ferrite
Inductance(uH)	15
Tolerance(%)	20
Current Rating (A)	1.3
DC Resistance (DCR)(mΩ) at 20°C	140
Frequency (MHz)	2.52
Mount	Surface Mount.
Operating Temperature (°C)	-40 ~ 100
