CDRH104R 330uH Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding.

Moreover, this inductor has the highest moisture sensitivity level of 1.


Applications:

Ideally, this inductor finds its use in notebook PCs, Game Machines, etc as DC-DC converter inductor.


Features:

  1. Ferrite core drum construction.
  2. Magnetically shielded.
  3. Moisture sensitivity level: 1.
  4. Operating temperature range: -40°C+100°C (including coils self temperature rise)
  5. Storage temperature range: -40°C+100°C


Package Includes:

1 x CDRH104R 330uH Power Inductor



Specifications:

Core

Ferrite

Inductance (uH)

330

Tolerance (%)

30

Current Rating (A)

0.74

DC Resistance (DCR) (mΩ) at 20

1090

Length (mm)

10

Width (mm)

10

Height (mm)

4

Weight (gm)

1 (approx)


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 16.52 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

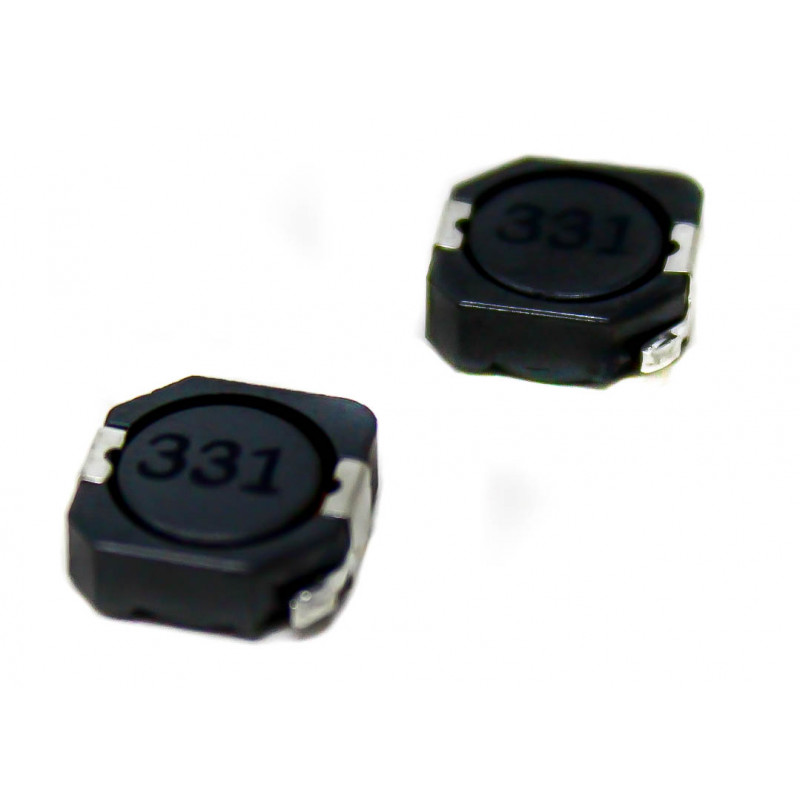

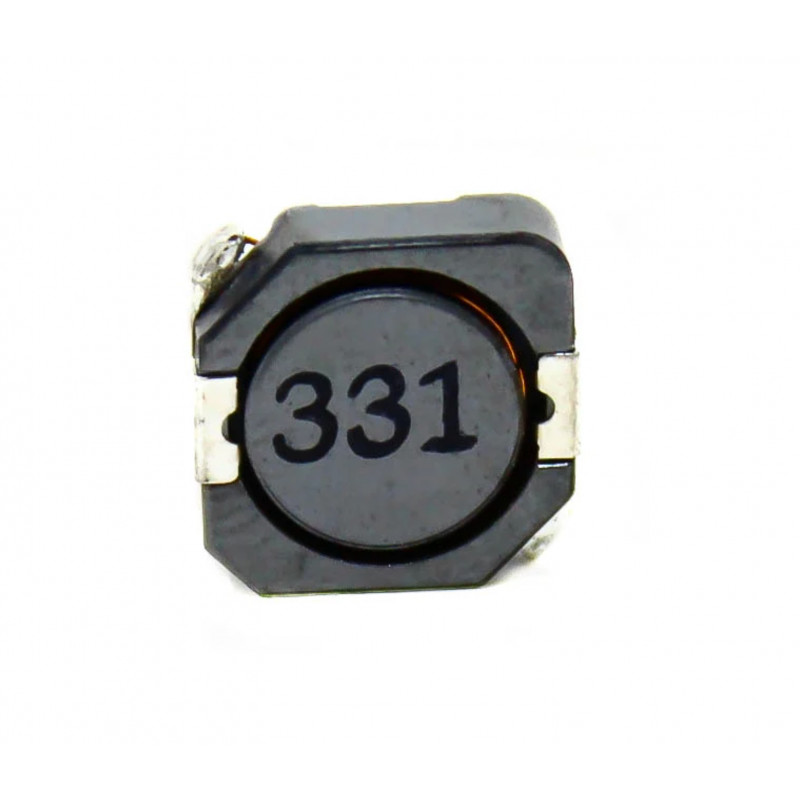

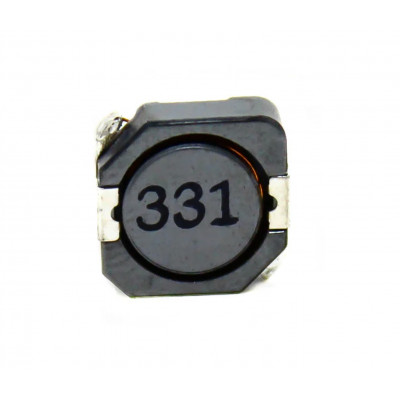

CDRH104R 330uH (331) SMD Power Inductor

  • Product Code: EC-6912
  • Availability: 6702
  • Rs.14.00
  • (Excluding 18% GST)
