CDRH127 22uh Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding.
Moreover, this inductor has the highest moisture sensitivity level of 1.
Applications:
Ideally, this inductor finds its use in notebook PCs, Game Machines, etc. as DC-DC converter inductor.
Package Includes:
1 x CDRH127 22uh (220) SMD Power Inductor.
Features & Specifications:
- Ferrite drum core construction.
- Magnetically shielded.
- Package: CDRH127
- Inductance: 22uh
- Printed: 220
- Tolerance(%): 20%
- DC Resistance (DCR): 43.2 mOhm Max
- Current Rating: 3.6 Ampere
- L×W×H: 12×12×7.0 mm
- Product weight: 4 gms.
- Moisture Sensitivity Level: 1
- Operating temperature range: -40℃～+100℃
- Storage temperature range: -40℃～+100℃
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 18.88 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

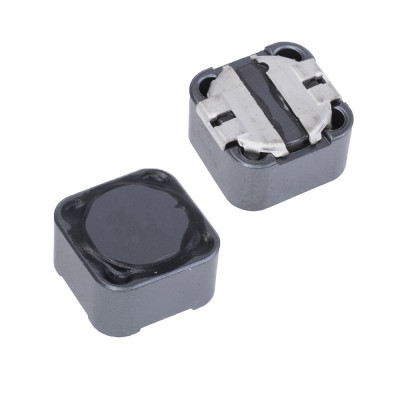

CDRH127 22uh (220) SMD Power Inductor
- Product Code: EC-9567
- Availability: 3203
-
Rs.16.00
- (Excluding 18% GST)
