The BSS138 is a SMD Power MOSFET Transistor (N-Channel). The following are the features:-
• Low On-Resistance:3.5Ω
• Low input capacitance: 40pF
• Low output capacitance: 12pF
• Low threshole: 1.5V
• Fast switching speed: 20nS
• RoHS Compliance
Application:-
• DC to DC converter
• Cellular & PCMCIA card
• Cordless telephone
• Power management in portable and battery etc.
Mechanical Data:-
• Case: SOT-23, Plastic Package
• Terminals: Solderable per MIL-STD-202G, Method 208
• Weight: 0.008 gram
Specification:-
| Symbol | Parameter | Value | Unit |
| VDSS | Drain-Source Voltage | 50 | V |
| VGS | Gate-Source Voltage | ± 20 | V |
| ID | Drain Current Continuous | 200 | mA |
| IDM | Drain Current Pulsed (tp≤10µS) | 800 | mA |
| PD | Drain Power Dissipation | 225 | mW |
| RthJA | Thermal Resistance, Junction to Ambient | 556 | ° C/W |
| TJ | Storage Temperature Range | -55 to +150 | ° C |
| TSTG |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 8.85 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

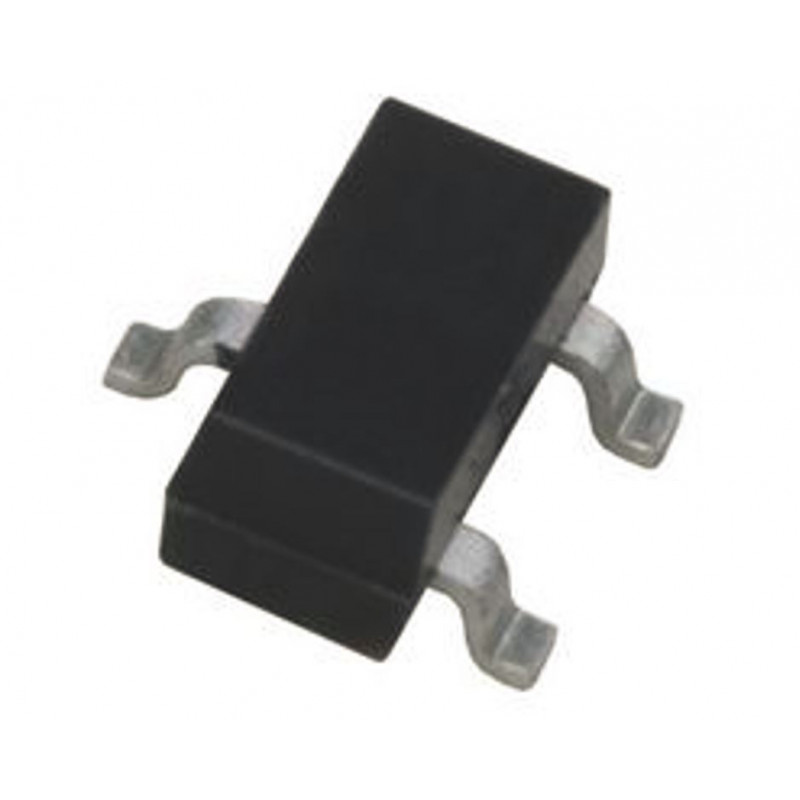

BSS138 MOSFET - (SMD SOT-23 Package) - N-Channel Enhancement Mode MOSFET
- Product Code: EC-1742
- Availability: 6568
-
Rs.7.50
- (Excluding 18% GST)
