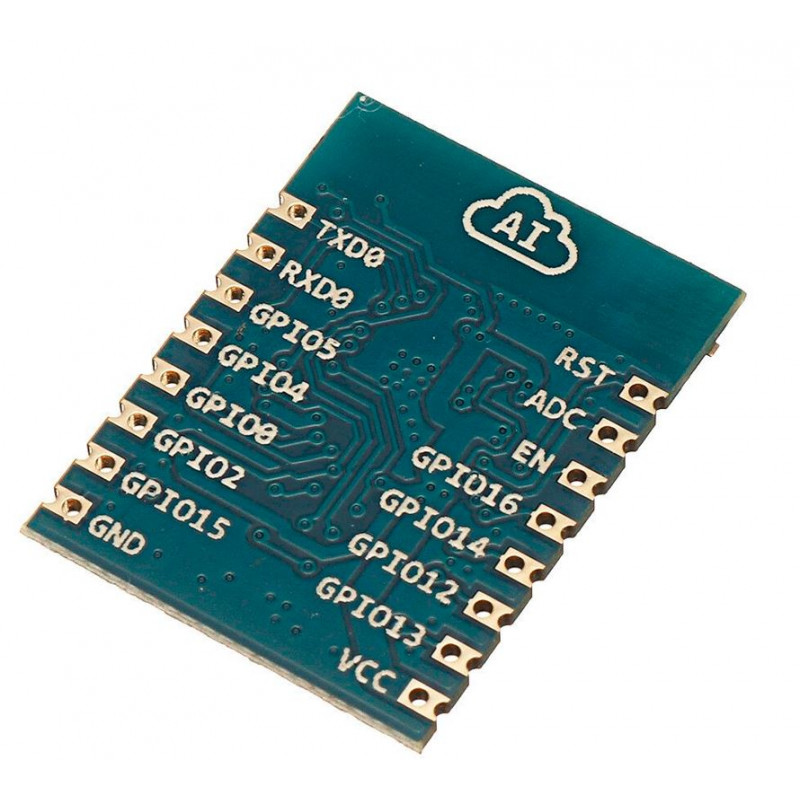

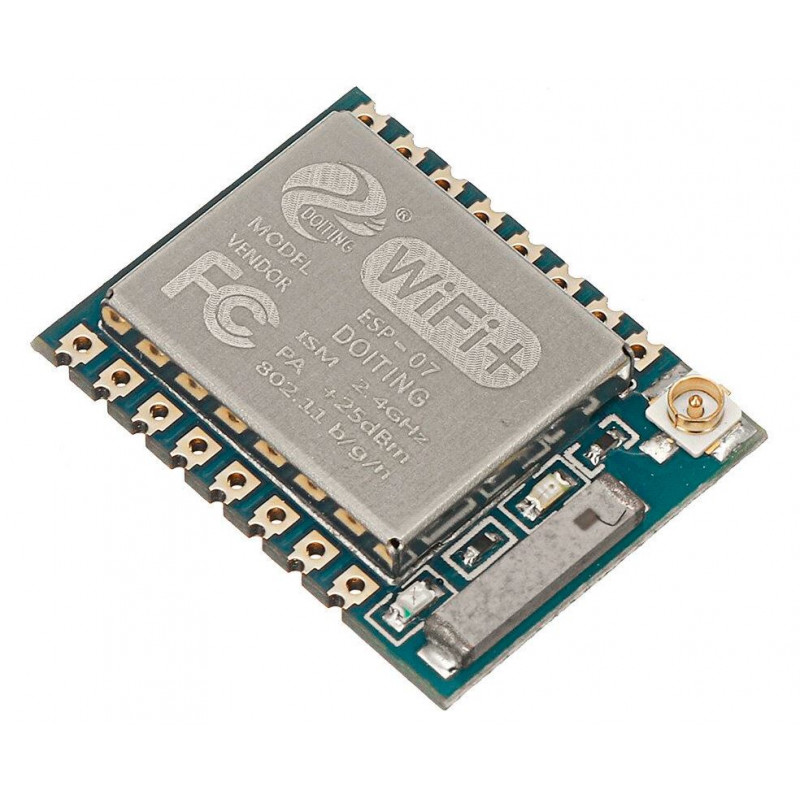

It is a WIFI serial transceiver module based on ESP8266 SoC. The SOC has Integrated TCP/IP protocol stack. It is TTL serial communication interface and its parameters can be set by AT command. It is widely used in networking, smart home project when being connected to the WIFI router. It can be used for remote monitoring of home appliances, bedroom temperature and humidity, simultaneously controlling home appliances by the mobile phone.

Features:-

• The smallest 802.11b/g/n Wi-Fi SOC module
• Built-in 10 bit high precision ADC
• Ultra-low-power technology
• SMD-16 package for easy welding
• Deep sleep current as low as 20uA
• Supports three modes : STA/AP/STA + AP operation mode
• General AT commands can be used quickly

Specifications:-

• Model : ESP-07
• Antenna Type : Ceramic and IPEX
• Frequency Range : 2412 - 2484MHz
• IO Port : 9
• Input Supply Voltage : 3.0 - 3.6V DC
• Interface : UART/GPIO/ADC/PWM
• Operating Temperature Range : -20°C to 85°C
• Package/Case : SMD-16
• SPI Flash : Default 8Mbit
• Security : WEP/WPA-PSK/WPA2-PSK
• UART Baudrate : Support 300 - 4608000 bps ˈDefault 115200 bps
• Wireless Criteria : 802.11 b/g/n

Package Includes:-

1 x ESP 8266 ESP-07 WIFI Module
