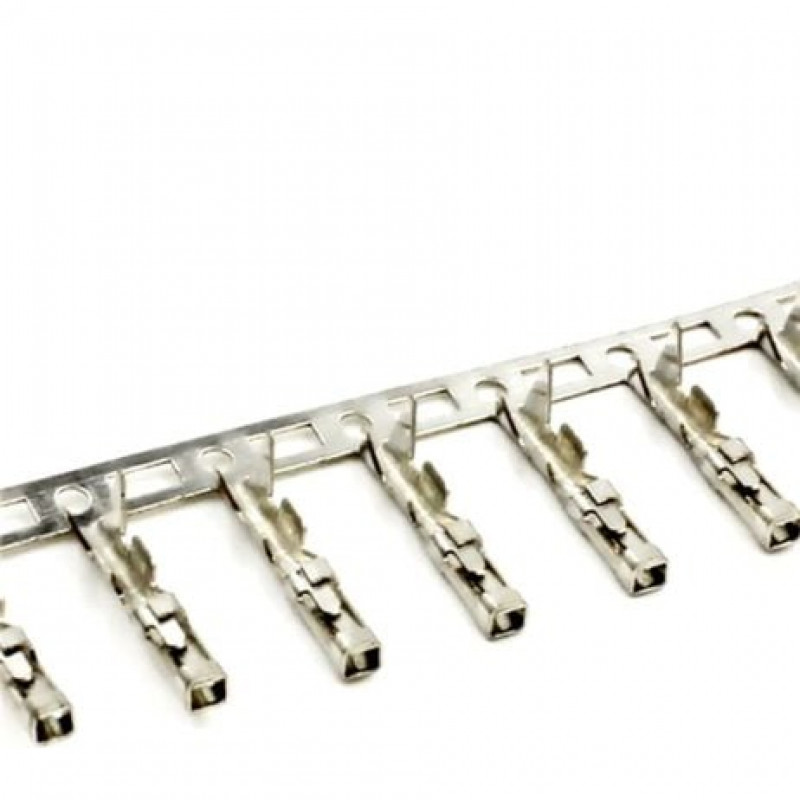

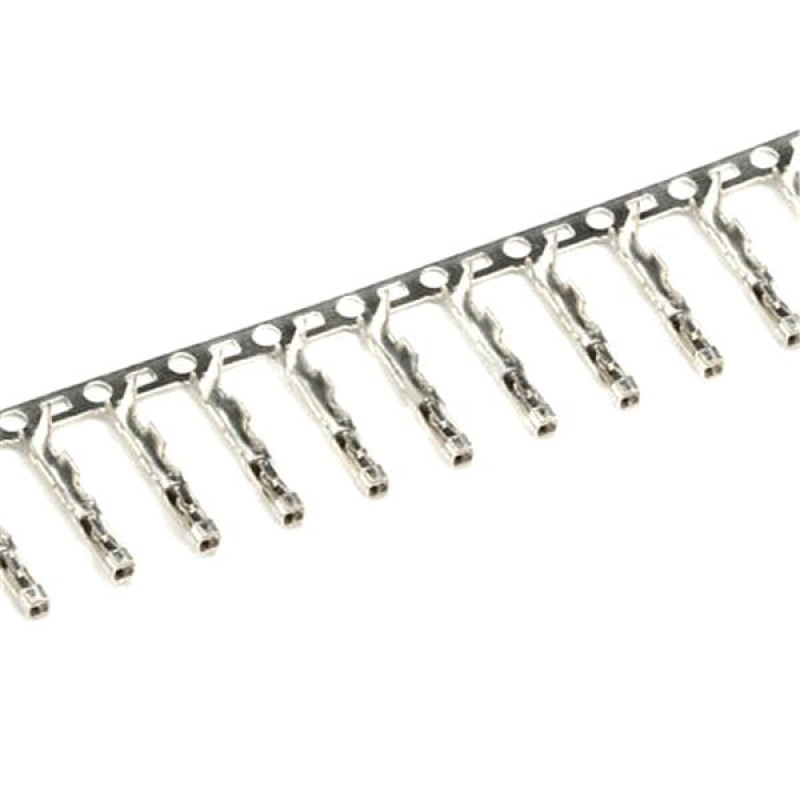

This is Female Dupont Terminal Reed Connector 2.54mm A common DuPont 2.54mm pitch connector Plug-in Female Crimps, compatible with Male DuPont 2.54mm Plug connectors.
Specifications and Features:
- Pin pitch: 2.54mm
- Temperature range: -25 ~+85
- Maximum current: 1A
- Maximum voltage: 250V AC/DC
- Compatible Wire Gauge (AWG): 28-22
- Withstanding voltage: 800V AC/1 min
Package Includes:
1 x Female Dupont Terminal Reed Connector 2.54mm-5 Pins
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 21.24 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Female Dupont Terminal Connector 2.54mm
- Product Code: EC-24099
- Availability: Out Of Stock
-
Rs.16.00
- (Excluding 18% GST)
