  • Finger Print Sensor Module - R305

Buy R307 Finger Print Sensor Module an Updated and Improved Compatible Version of R305 Finger Print Sensor Module at Less Price.


Difference Between R305  and R307 Finger print module:-

Same software protocol as R305 with many improvements


R305R307
Storage Capacity (Fingerprints)
2501000
3.3V Operation
No
Yes
USB Operation
No
Yes
Finger Detect Output
No
Yes

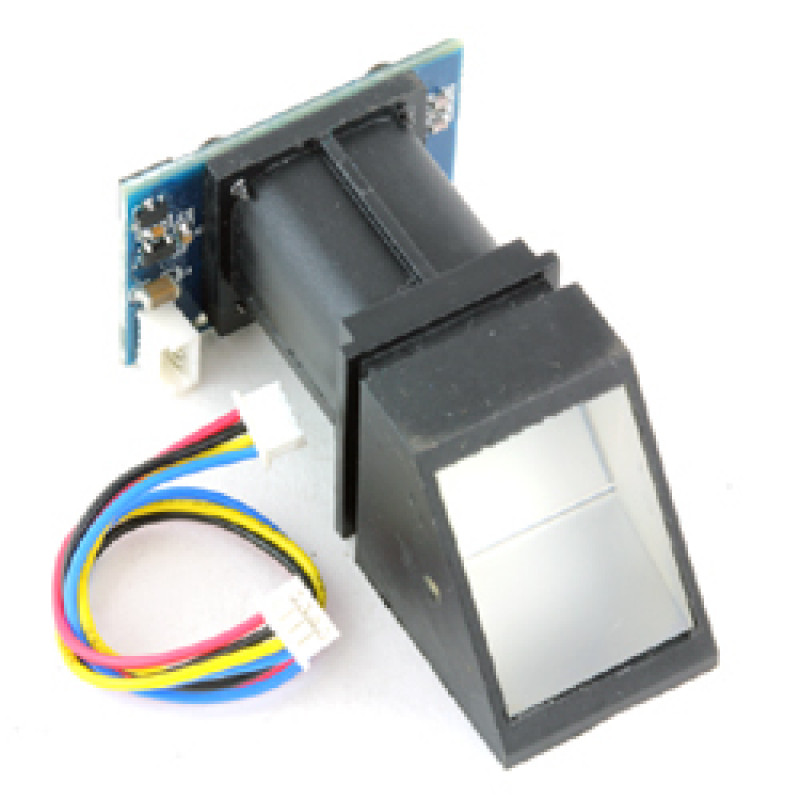

R305 is a finger print sensor module with TTL UART interface. The user can store the finger print data in the module and can configure it in 1:1 or 1: N mode for identifying the person. The finger print module can directly interface with 3v3 or 5v Microcontroller. A level converter (like MAX232) is required for interfacing with PC.

Features:-
  • Integrated image collecting and algorithm chip together, ALL-in-One
  • Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
  • Low power consumption, low cost, small size, excellent performance
  • Professional optical technology, precise module manufacturing techniques
  • Good image processing capabilities, can successfully capture image up to resolution 500 dpi

Specifications:
Power DC : 3.6V-6.0V
Interface : UART (TTL logical level)/ USB 1.1
Working current : 100mA
Peak Current    : 150mA
Matching Mode:  1:1 and 1:N
Baud rate (9600*N)bps, N=1-12 (default N=6 57600bps)
Character file size:  256 bytes
Image acquiring time :  <0.5s
Template size :  512 bytes
Storage capacity:  120
Security level : 5 (1, 2, 3, 4, 5(highest))
FAR : <0.001%
FRR: <0.1%
Average searching time:  < 0.8s (1:880)
Window dimension : 18mm*22mm
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2065 (Inclusive of all Taxes)
