Force Sensitive Resistor are resistive sensor exhibiting vary resistance that responds to force applied to the sensing area. As force on the sensor is increased, resistance is decreased. For the single-zone sensors, as the sensor is a Two-terminal device that can essentially be treated as a variable resistor whose value is controlled by applied force, and also a switch whose threshold is controlled by applied force and setting up. The sensors are made up of robust polyester
film, high-conductive material and Nano- sized force sensing material. The top layer of the sensor consists of the area of force sensitive layer on a flexible film. And bottom layer is comprised of conductive circuit traces on a flexible film. And the above two layers are s are stick together by spacer adhesive and active area is without adhesive. When the active area is applied force, force sensitive layer on the top layer shunts the circuit traces on the bottom, varying resistance output terminal.

Features:

1. Static / dynamic pressure sensing.
2. Quick Response
3. Durable long life.

Applications:

1. Pedometer.
2. Foot correction analysis.
3. Gait analysis

Package Includes:

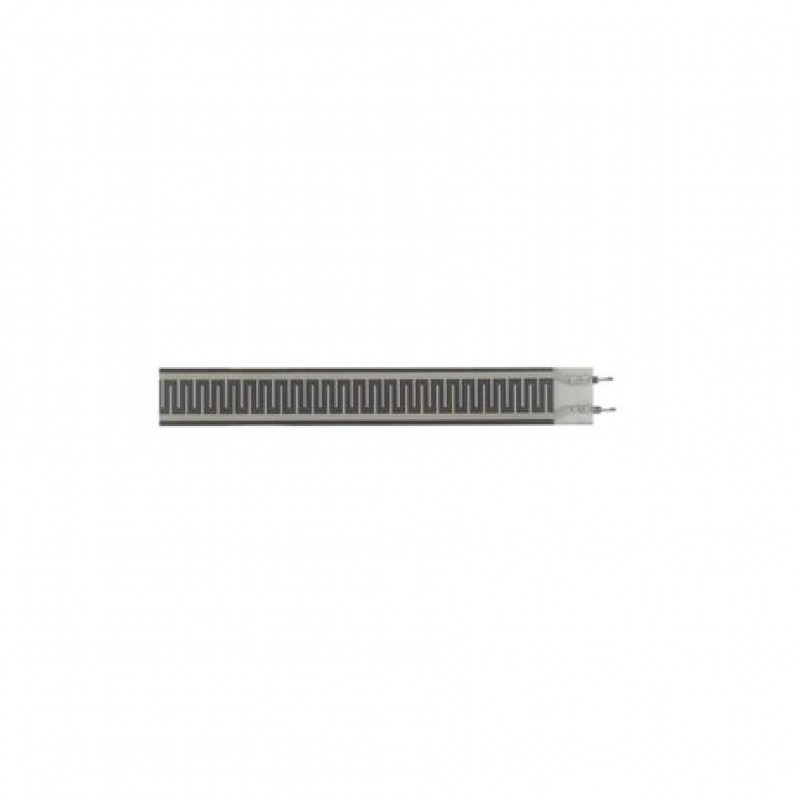

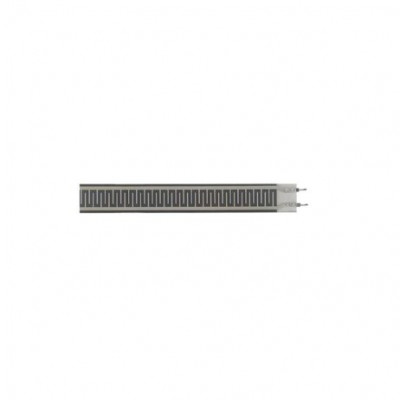

1 x Force Sensitive Resistor RP-L-110(50g-5kg)
