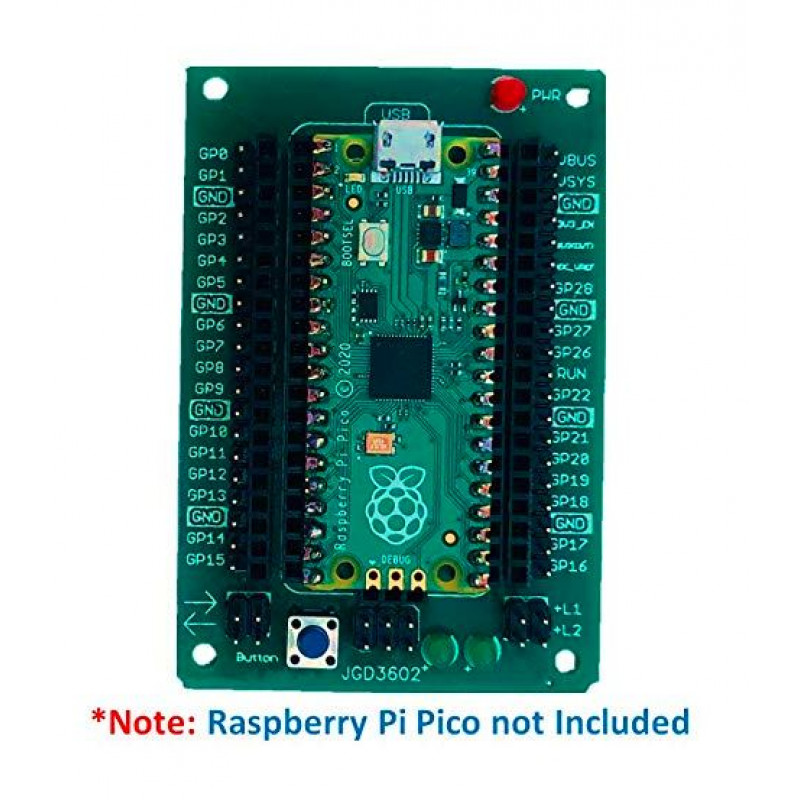

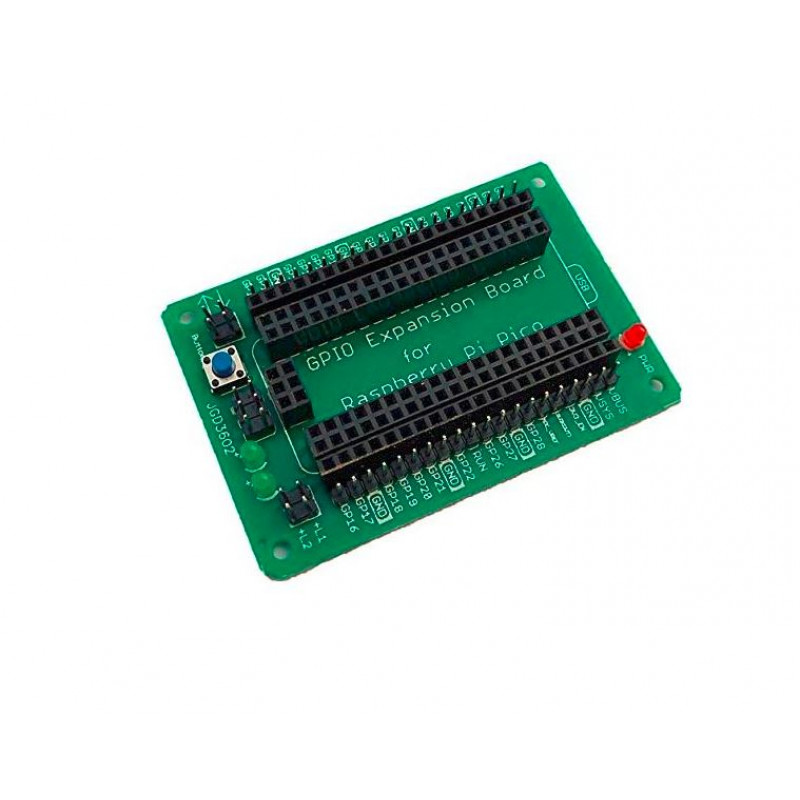

Raspberry Pi Pico GPIO Expansion Board is an advanced product in the range of the Raspberry Pi Pico Accessories. The work of the Raspberry Pi Pico GPIO Expansion Board is to break out all the pins and power of the Raspberry Pi Pico development board via two ways(male or female header). It allows the user to connect it to other components with the help of a jumper wire.

It has been designed to enhance the learning experience for the user. It would help users to develop the projects based on their ideas with the utilization of Raspberry Pi Pico.

Specification And Features:-

  • 2 X Programmable Independent Controlled Led (Green),1 X Power Led,1 X Independent Controlled Push Buttons.
  • Easy to interface: Male and Female Berg Connection Interface ( Jumper cable connectors ).
  • Can Connect with all the variants of Sensors / Modules.

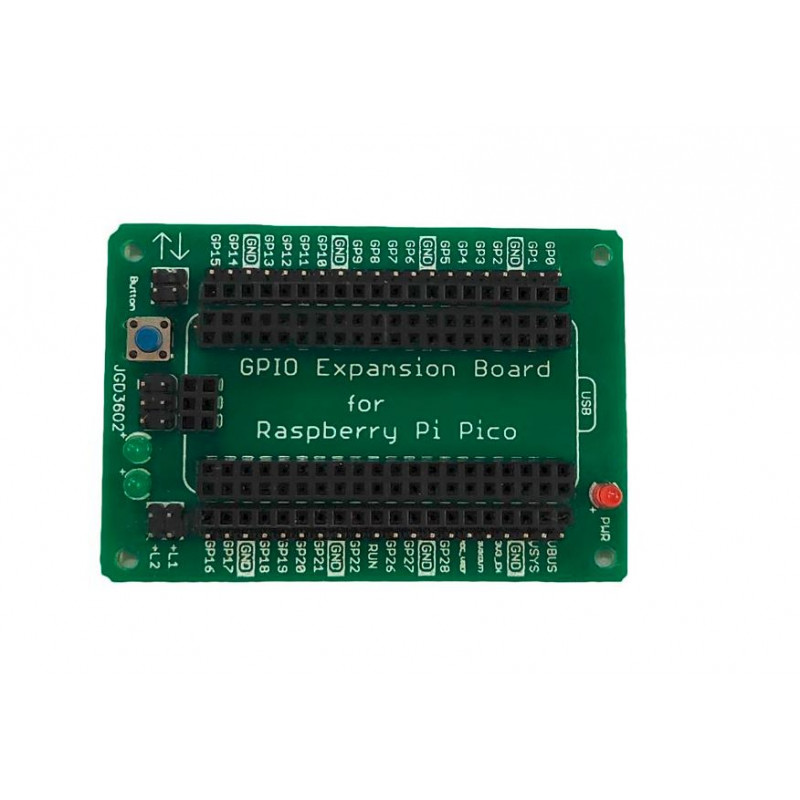

Board Details:-

  • Power Indicator : 1 X RED LED ( Indicate PICO is Powered ON/OFF ).
  • Push buttons : Release (Not Pressed) = Logic 0 , Pressed = Logic 1 (INPUT).
  • Programmable / Test Led : 2 X Green LED, OUTPUT : LED On = 1, LED Off = 0 .

Note: By default, Cathode Pins of Programmable LEDs is connected to Ground.

Package includes:-

1 x GPIO Expansion Board for Raspberry Pi Pico

Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 277.3 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

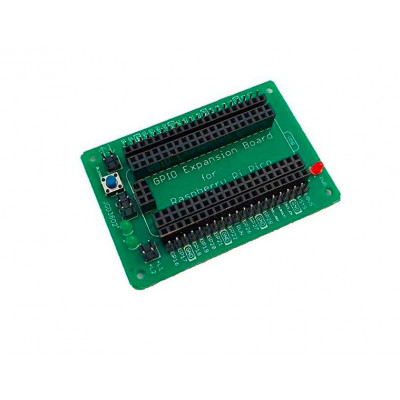

GPIO Expansion Board for Raspberry Pi Pico
