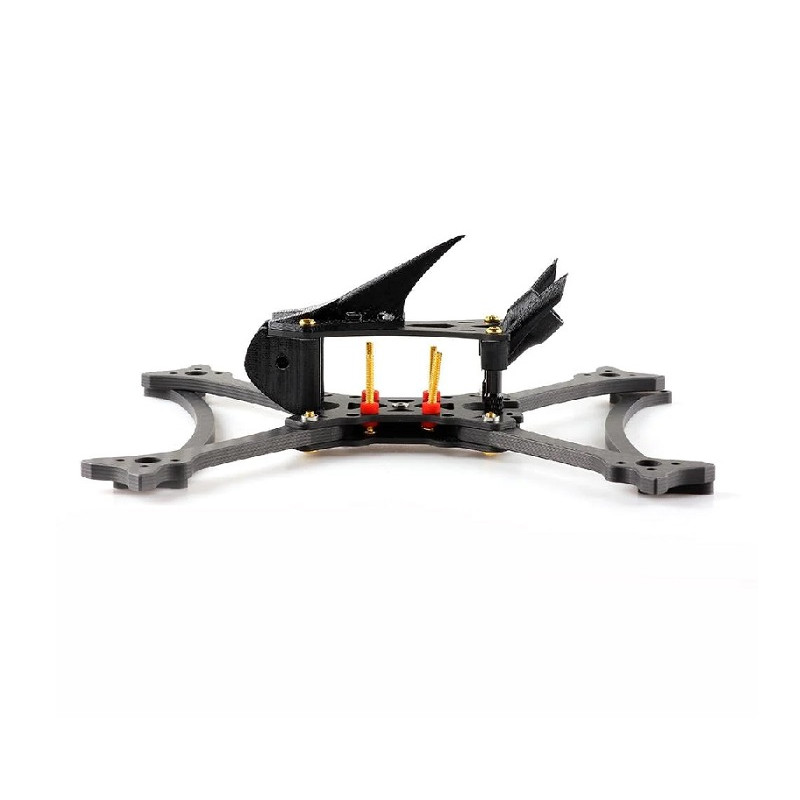

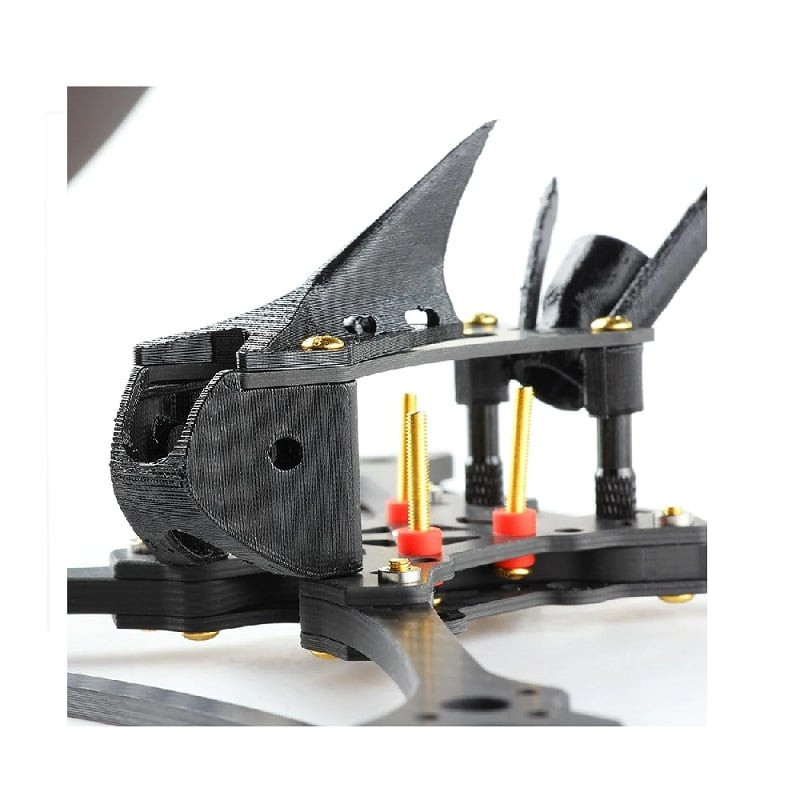

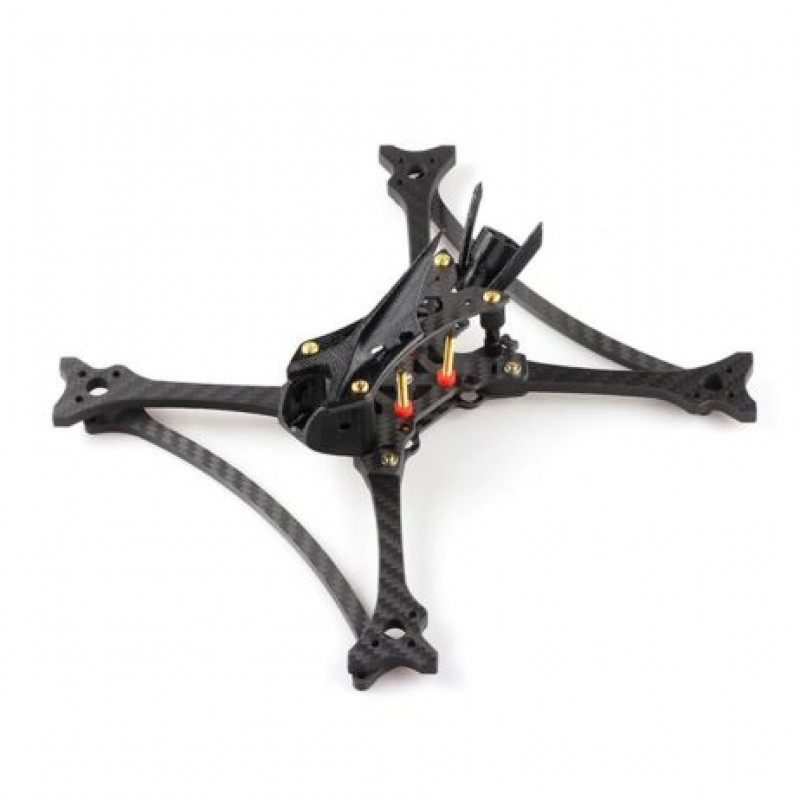

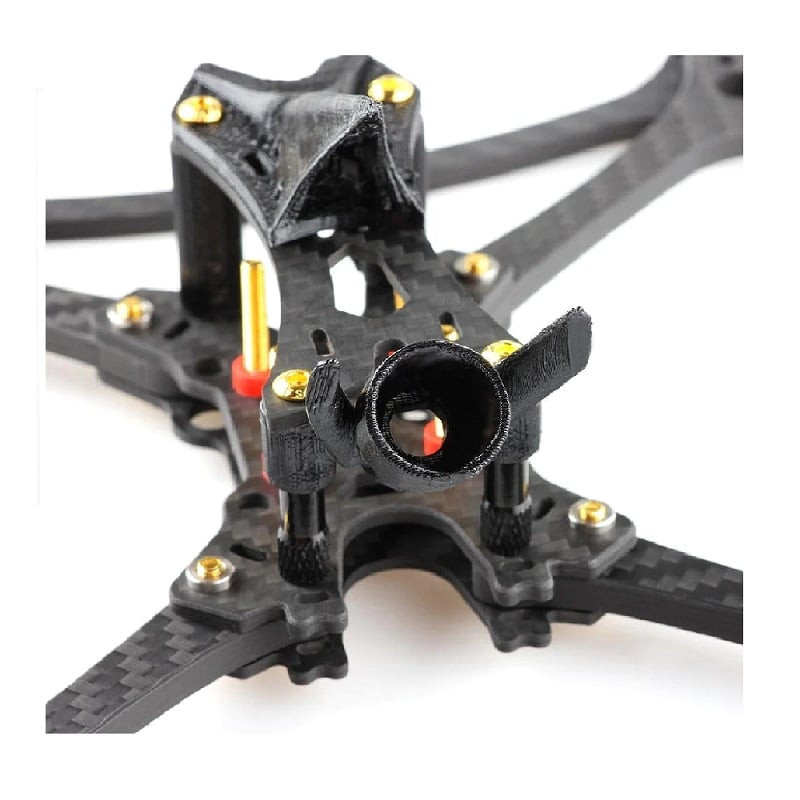

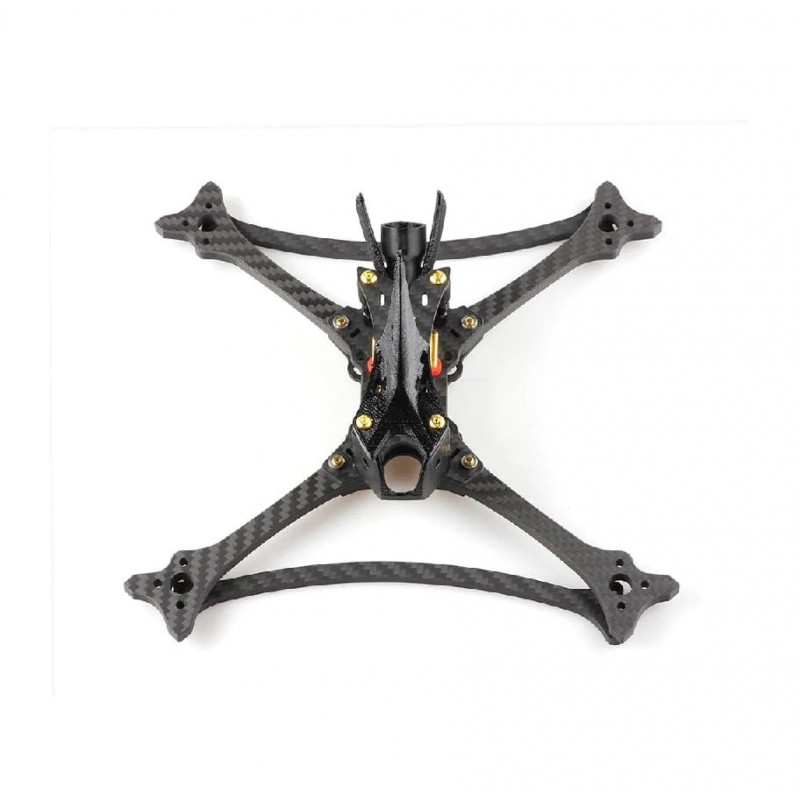

The HGLRC Wind5 Lite is a True X frame kit tailored for analog FPV enthusiasts. With a focus on minimizing weight without compromising durability, its optimized for high-speed flights and dynamic maneuvers. The kits design emphasizes simplicity, making it ideal for easy component installation and maintenance. The Wind5 Lite offers an exceptional platform for pilots seeking an immersive and responsive analog FPV experience with reliability and performance at its core.

Specifications:

1 . Brand Name: HGLRC
2. Model: Wind5 Lite Frame Kit
3. Material:3K Carbon Fiber
4. Type:5 frame
5. Wheelbase:208mm
6. size:148*148mm
7. Top plate thickness:2mm
8. Bottom place thickness:2mm
9. Middle plate thickness2.5mm
10. Arm Thickness:5mm
11. Top and middle plate spacing:32mm
12. Installation holes:2020/30.530.5mm
13. Support camera:19mm
14. Weight:80g
15. Motor mounting holes:16

Features:

1. Flight control installation damping system
2. 4mm protective bar
3. SMA antenna Mount
4. Camera Mount
5. Anti-turtle Shark Fin

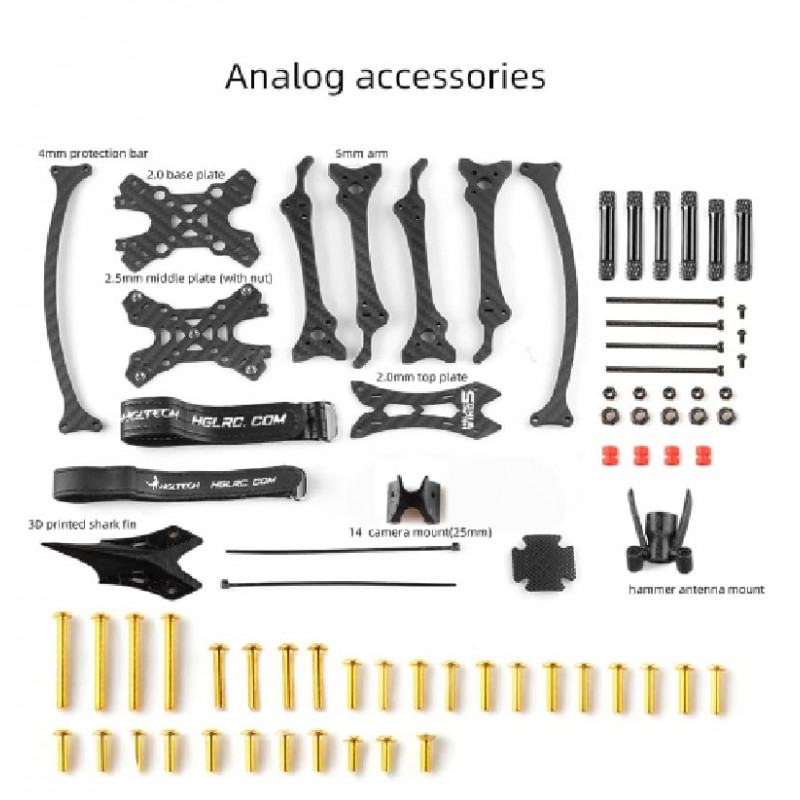

Package Includes:

1 x 2mm top plate
1 x 2mm bottom plate
1 x 2.5mm middle plate
4 x 5mm arm
2 x 4mm protective bar
4 x M3*32mm black aluminum column
2 x M3*30mm black aluminum column
4 x round head screw M2*35
4 x round head screw M3*16
1 2x round head screw M3*12
1 x Sink head screw M3*10
2 x round head screw M3*10
8 x round head screw M3*8
2 x round head screw M2*4
4 x M2 Self-tightening nut
4 x M3*6.6 shock absorber ball
1 x Battery cable tie 15x250mm
1 x Battery cable tie 20x250mm
1 x Battery Anti-slip tape
2 x strap
1 x Anti-turtle Shark Fin
1 x TPU hammer antenna mount
1 x TPU Camera Nebula Pro Mount
