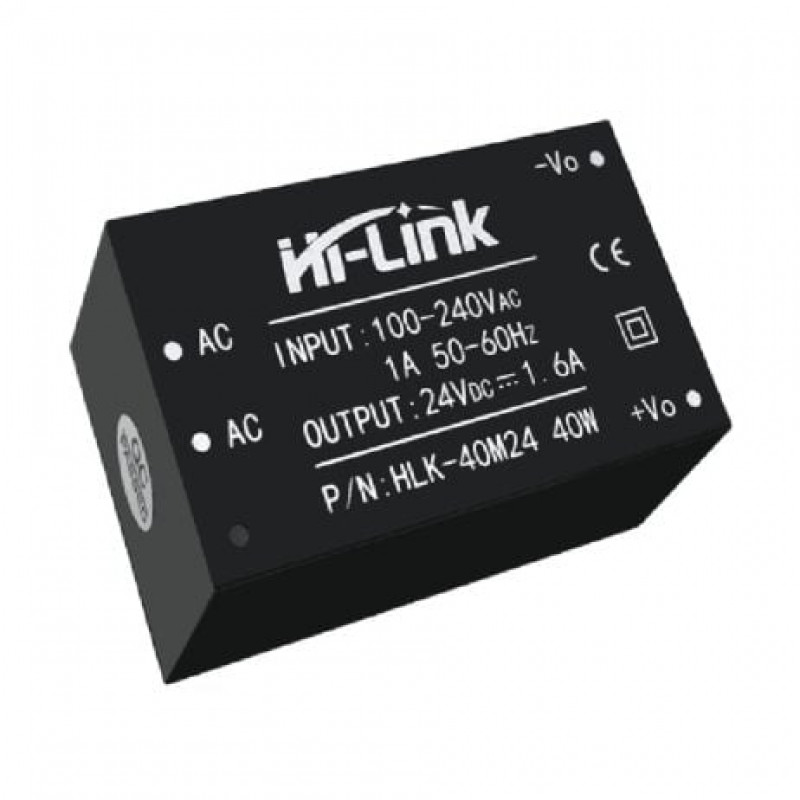

The AC-DC Isolation Voltage Stabilized Switching Power Supply Module 40M24 efficiently transforms 220V AC to a stable 24V DC, utilizing gallium nitride (GaN) technology for enhanced power efficiency. With a power capacity of 40W, this module provides reliable and isolated power. Its compact design and voltage stabilization make it suitable for diverse applications requiring efficient and stable 24V power delivery.
Features:
- GNS-Gallium Nitride Solution
- Wide range input 85-264VAC/70-350VDC
- Input and output isolation voltage 3000VAC
- No-load power consumption 0.1W
- Working temperature range:-25
- Fully enclosed plastic housing, in keeping with UL94V-0 level
- High output short circuit and over-current protection and self-recovery glue potting, dustproof, moisture-proof, shockproof, flame-retardant
- Meet UL/CE/EMC and safety testing requirements
- Using high-quality environmentally friendly waterproof thermal conductive
- Can be suing in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Specifications:
- Model: HLK-40M24
- Input Voltage: 220V
- Output Voltage: 24V
- Power: 40W
- Working Temperature: -25+60
- Storage temperature: -40+80
- Relative humidity: 595
- Length: 55mm
- Width: 33mm
- Height: 24mm
Package Includes:
1 x AC-DC Isolation Voltage Stabilized switching Power Supply Module 40M24 220V to 24V40W gallium nitride GaN power module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
HLK-40M24 AC-DC Isolation Voltage Stabilized switching Power Supply Module 220V to 24V40W gallium nitride GaN power module
- Product Code: EC-18517
- Availability: 10
-
Rs.809.00
- (Excluding 18% GST)
