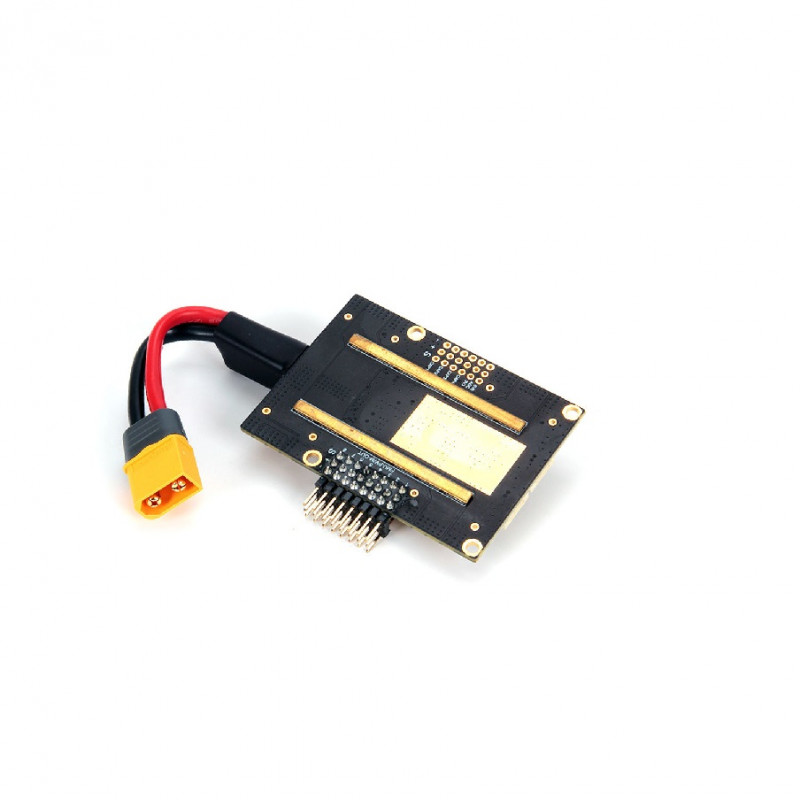

This PM07 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated esc power & signal distribution for up to 8 ESCs.

PM07 has two 5.2V power output port that can provide redundant powerto the flight controller, with independent circuits, BEC ICand circuitry.

It is also great for flight controller that do not have built-in servo header pins like the Pixhawk 6C & Pixhawk 4. It comes with pre-soldered wires, capacitor, and XT60 connector.

Please Note:

The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
This PM02 Power Module uses analog data outputand is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Features:

1. Dual Redundant Power: PM07 provides two independent 5.2V power outputs for flight controller redundancy.
2. Integrated ESC Distribution: Streamlines power and signal distribution for up to 8 ESCs.
3. Flight Controller Compatibility: Ideal for Pixhawk 6C & Pixhawk 4, lacking built-in servo header pins.
4. High Current Handling: Supports demanding conditions with 90A continuous and 140A burst current ratings.
5. Efficient Power Supply: Delivers stable 5.2V for clean power and improved stability.
6. Pre-soldered Convenience: Comes with pre-soldered wires, capacitor, and XT60 connector for easy installation.

Package Includes:

1xPM07 board
1x80mm XT60 connector wire (installed)
1x Electrolytic capacitor: 220uF 63V (installed)
2xJST GH 10P Cable
1xJST GH 8P Cable
2xJST GH 6P Cable
