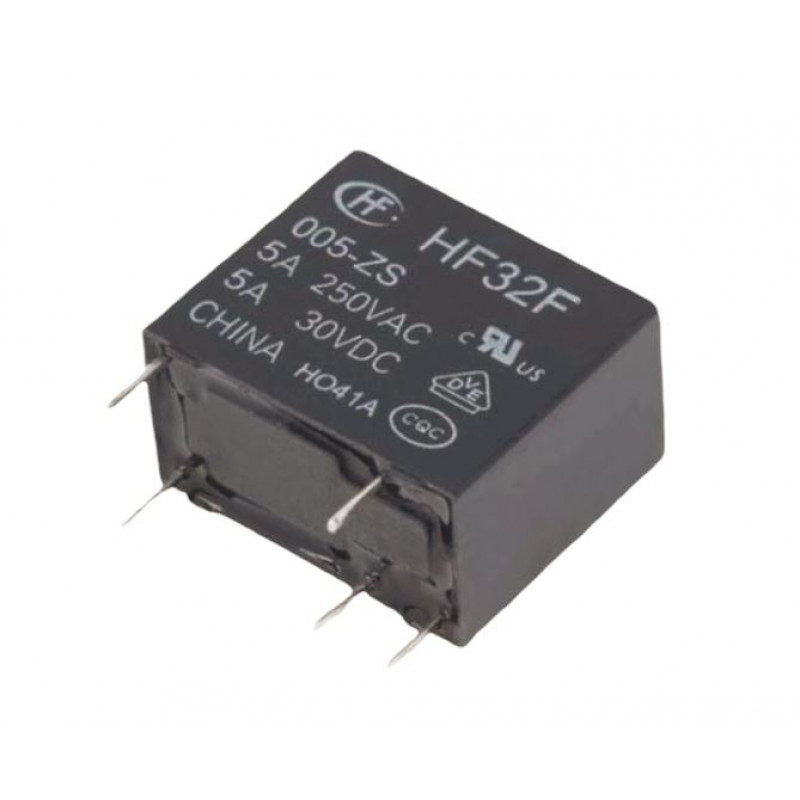

Hongfa 5V 5A DC HF32F/005-ZS 5 Pin SPDT Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.
Features and Specifications:
- Brand : Hongfa
- Contact Arrangement : 1 Form C
- Terminal type : PCB
- Contact version : Single contact
- Coil Voltage (DC) : 5 V
- Mounting : PCB-THT
- Coil power : Standard
- Construction : Plastic sealed
- Contact capacity : AgNi
- Dielectric strength (between coil & contacts) : 2500VAC 1min
- Release time : < 5ms
- Contact plating : Without plating
- Operate time : < 8ms
- Max Switching Voltage (VAC) : 250VAC
- Creepage Distance : 3.2mm
- Electrical endurance : 100000
- Ambient temperature : -40~70C
- Insulation resistance : 1000MOhm
- Size : 18.4x10.2x15.3mm
- Weight : 6gm
- Max Switching Voltage (VDC) : 30VDC
- Electrical Distance : 3.1mm
- Max Switching Current (AC) : 10AC
- Mechanical endurance : 5000000
- Contact Current Rating : 5 A
Package Includes:
1 x Hongfa 5V 5A DC HF32F/005-ZS 5 Pin SPDT Miniature Power Relay
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 56.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Hongfa 5V 5A DC HF32F/005-ZS 5 Pin SPDT Miniature Power Relay
- Product Code: EC-10135
- Availability: 273
-
Rs.78.00
- (Excluding 18% GST)
