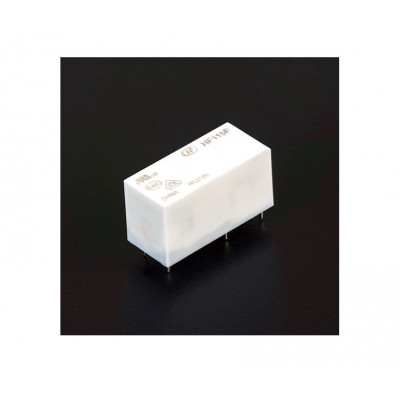

Hongfa 9V 16A DC HF115F-T/009-1H3 6-Pin SPST PCB Mount Power Relay

Features:

• High Temperature: 105℃
• Low height: 15.7 mm
• 5kV dielectric strength (between coil and contacts)
• Creepage distance: 10mm
• Meeting VDE 0700, 0631 reinforce insulation
• Sockets available
• Product in accordance to IEC 60335-1 available
• Plastic sealed and flux proofed types available
• UL insulation system: Class F

Specifications:

• Type : HF115F-T/009-1H3B
• Switching Current (A,Res.load) : 16A
• Contact arrangement : 1 Form A
• Coil version : single contact
• Terminal Type : PCB
• Mounting : PCB-THT
• Construction : Plastic sealed
• Contact material : AgSnO2
• Sort : Standard
• Coil voltage : 9
• Coil power: Approx 0.4
• Insulation standard : Class F
• Coil voltage form : DC
• Rated voltage(V) : 250VAC
• Volume（mm³) : 29.0×12.7×15.7 (mm)

Package Includes:

1 x Hongfa 9V 16A DC HF115F-T/009-1H3 6-Pin SPST PCB Mount Power Relay
