Hex drive Socket Cap Screws are often found in applications where there is insufficient wrench/socket clearance for hex head cap screws, or when a finished look is desired. Button heads provide a larger bearing surface and a lower head profile than Socket heads and are used when the material is too thin to countersink. Because of their smaller outer diameter, Socket Head screws may be preferred and are sometimes recessed (counterbored). When clearance is an issue, use a Low Socket Head instead of a Socket Head.
HT Socket Button Head Cap Allen Bolt are recommended for high strength applications. Button and Flatheads are suggested when only moderate strength is needed. For Button and Socket heads, measure the length from under the head. For Flat heads, length includes head height

A socket cap bolts, also known as a socket head caps crew, socket screw, or Allen bolt, is a type of cap screw with a cylindrical head and hexagonal drive hole. The term socket head caps crew typically refers to a type of threaded fastener whose head diameter is nominally 1.5 times that of the screw shank (major) diameter, Forged heat-treated alloy examples are high strength fasteners intended for the most demanding mechanical applications, with special alloy formulations available that are capable of maintaining strength at temperatures in excess of 1000 degrees F (587C).

Advantages:

Hexagon Socket Button Head Bolts mainly for easy fastening and removal, not easy to slip angle and other advantages. Allen wrench is generally a 90 bend, bend one end of the long side of the short side with a short time to play the screws, hand long side can save a lot of power and can better tighten the screws.

Note:

  1. The product images views uploaded above may differ from the actual product.
  2. The Dimensions mentioned may vary at small extent between 0.2-0.5%.

Features:

  1. Hardness is 2 times higher than copper, 10 times higher than aluminum.
  2. More convenient for the hand as well as Machine tightening.
  3. Easy Tighten with an Allen-style wrench.
  4. Contains a recessed driving area and offers to hold power at high torque levels.
  5. Ideal for use in confined areas where the head needs to be flush or below the surface.


Package Includes:

1 x HT Socket Button Head Cap Allen Bolt M5 X 20- 10 Pieces pack



Specifications :-

Material

Mild Steel

Pack Quantity (Pcs.)

10

Size ( L x W ) mm

M5

Bolt Head Diameter (mm)

9.2

Length of Bolt (mm)

20

Color

Black

Nut Type

Hex

Thread Pitch (mm)

0.7

Required Allen Key Size (mm)

3
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 105.02 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

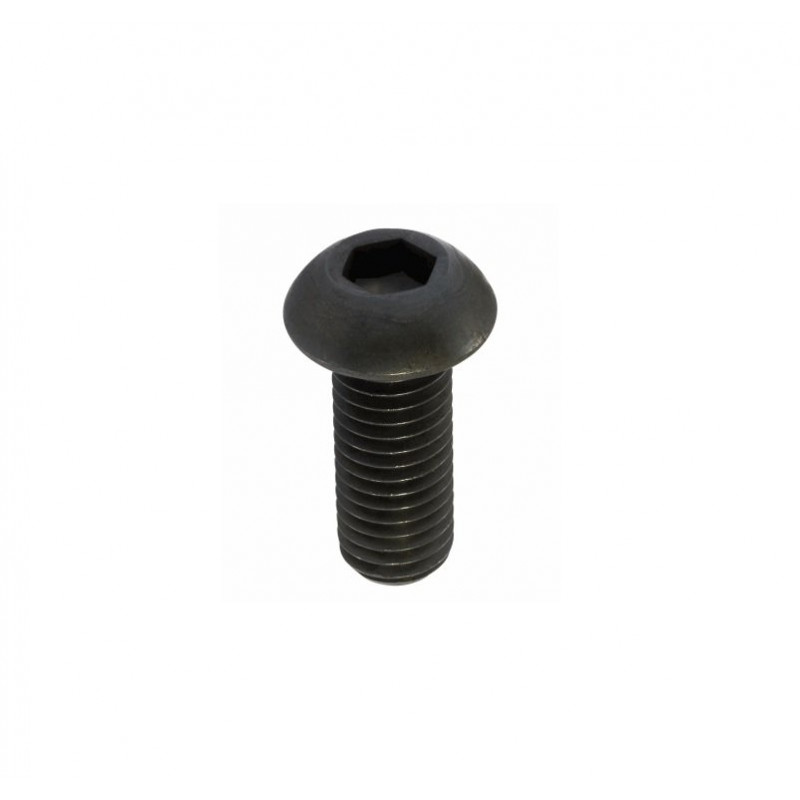

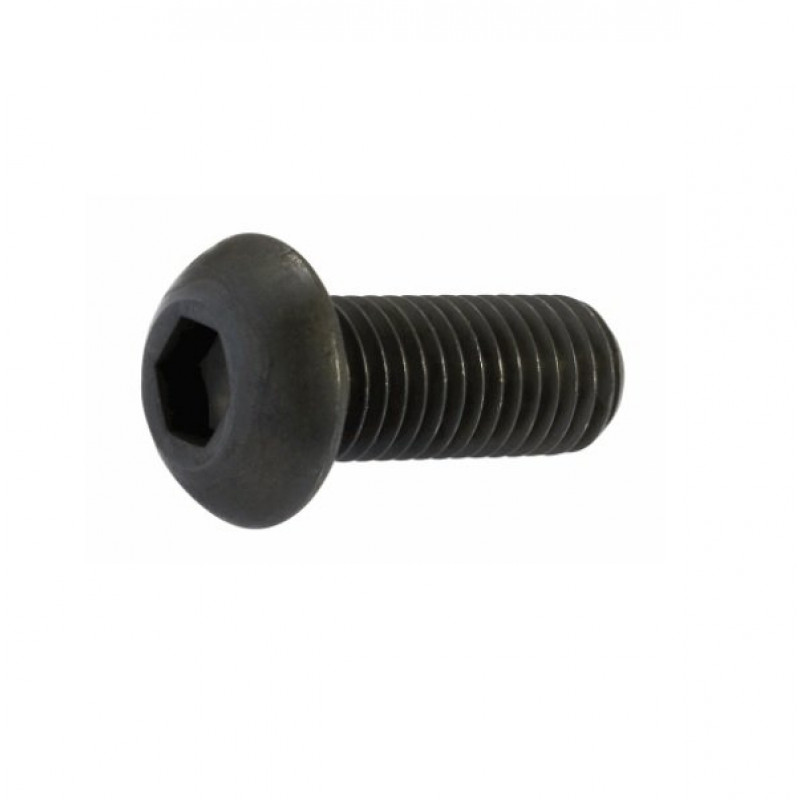

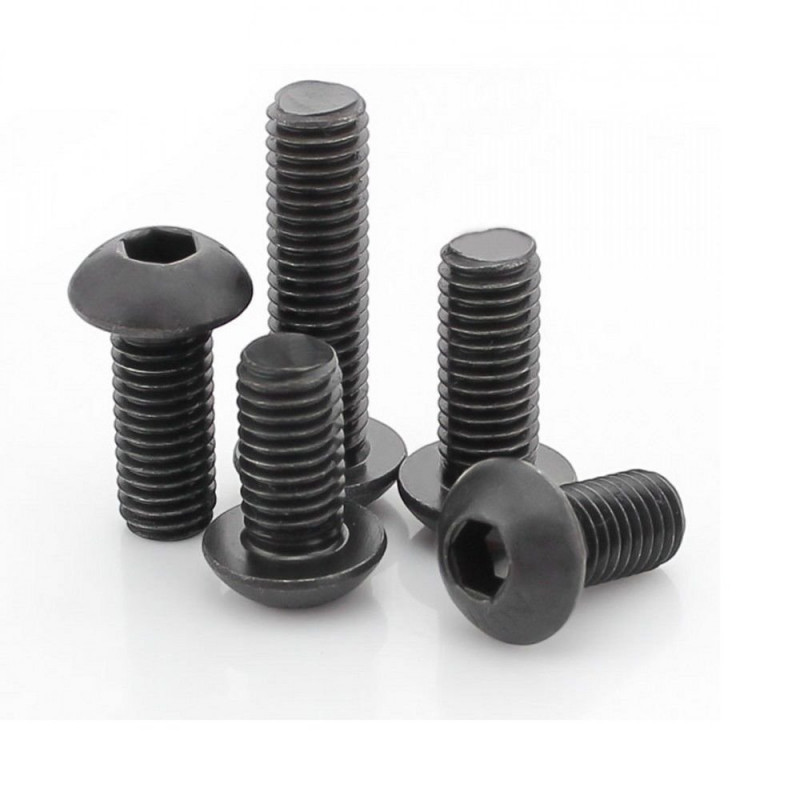

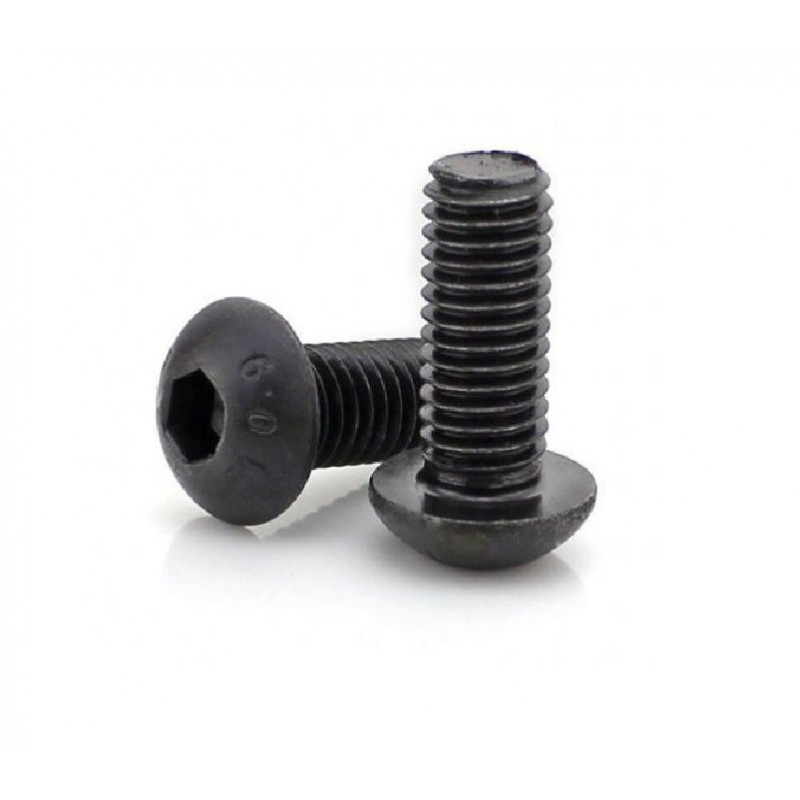

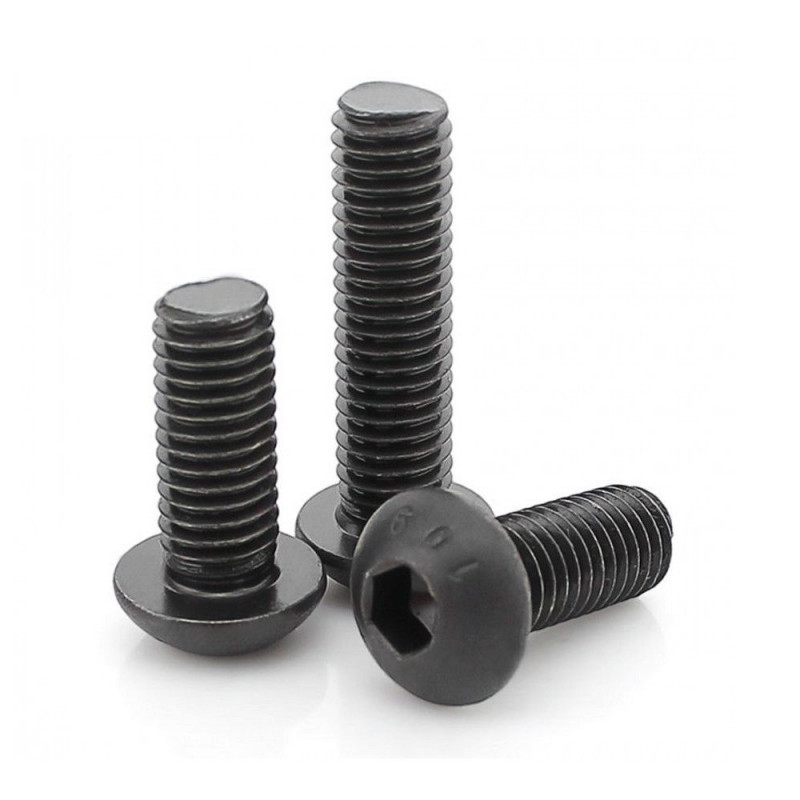

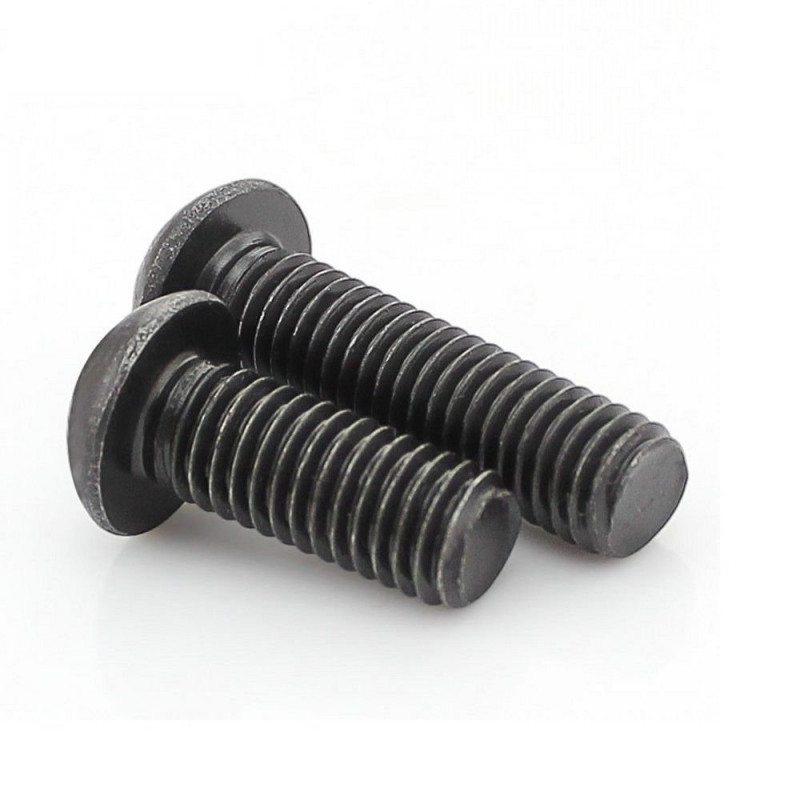

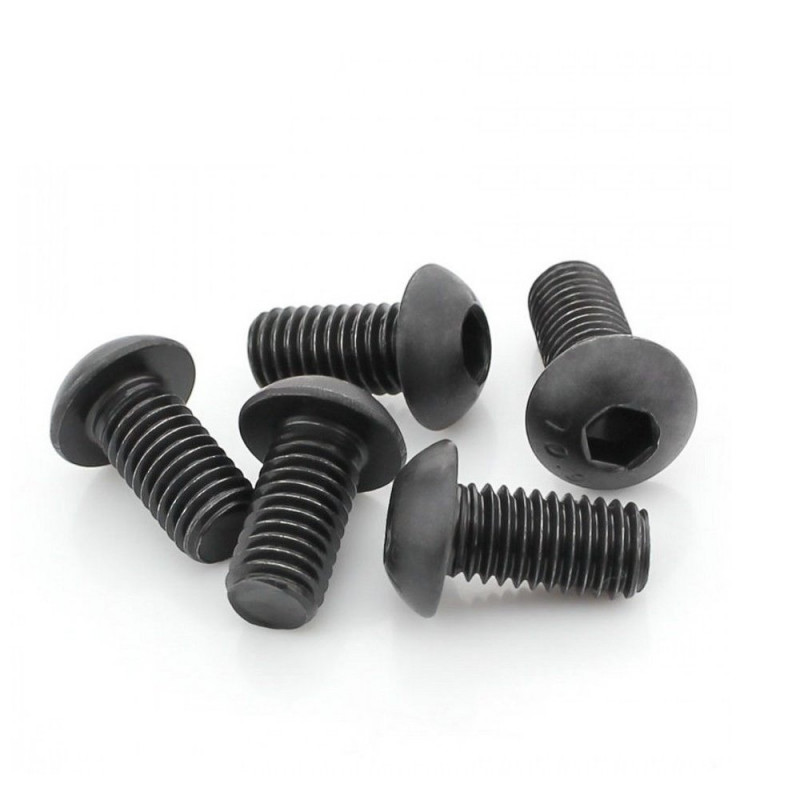

HT Socket Button Head Cap Allen Bolt M5 X 20 - 10 Pieces pack

  • Product Code: EC-8634
  • Availability: 438
  • Rs.89.00
  • (Excluding 18% GST)
