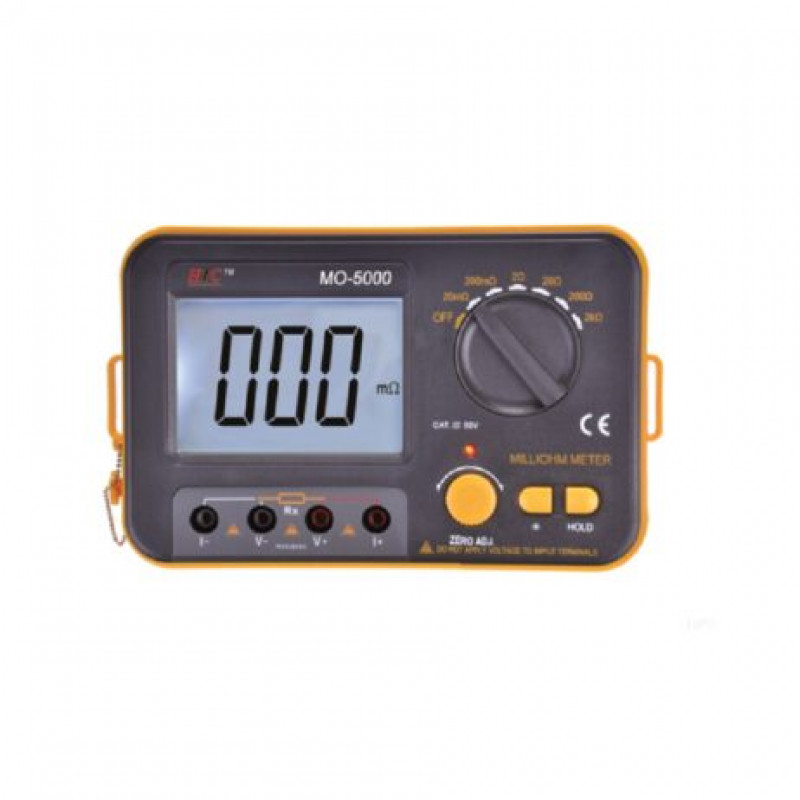

HTC MO-5000 (Counts 1999) Digital Milliohm Meter comprises a large LCD screen for displaying readings. It has 4 wire testing leads with the capability to test extremes. It has low resistance and is efficient enough to determine accurate measurements of electric equipment, conductors, solder points, and heading elements. The HTC digital milliohm meter has a HOLD key for holding data and a connection for the external power supply. It also comes along with a high measurement range from 0.01m to 2k at 6 ranges. Under dark conditions, the LCD backlight helps easy reading.

HTC MO-5000 (Counts 1999) Digital Milliohm Meter has strong anti-jamming and anti-magnetic functions. Its sampling rate is 3 times per second along with approximately 50mA as power consumption quiescent current. The machine indicates a low battery when there is less than 7.5 V.

Features:

1. Large LCD Display for easy reading
2. 4 wire testing, capable of testing exreame low resistance
3. Accurate measurement of conductor,electric heading elements and solder point
4. HOLD key for data hold
5. Connection for exernal power supply
6. High measurement range of 0.01m to 2k at 6 ranges
7. Backlight LCD for easy reading under dark light
8. Strong anti-magnetic and anti-jamming functions
9. Full function Protection

Specifications:

1. Brand: HTC
2. Special function: MO-5000
3. Sampling rate: 3 times/sec.
4. Operation mode: Manual range
5. Power Source: 1.5V AA battery x6pcs
6. Power consumption: Quiescent current approx.50mA
7. LCD size: 75 x 52 mm
8. Low battery indication: Less than approx. 7.5V
9. Length: 176mm
10. Width: 116mm
11. Height: 63mm

Package Includes:

1 x 4-wire test lead

1 x shoulder strap

6 x battery

1 x operation Manual

1 x Packing Gift box
