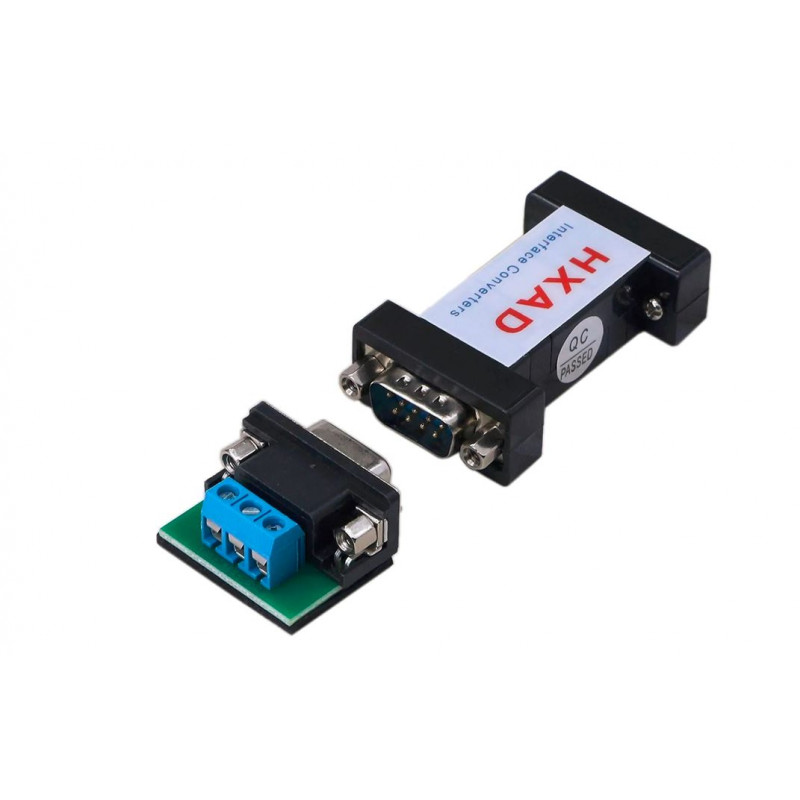

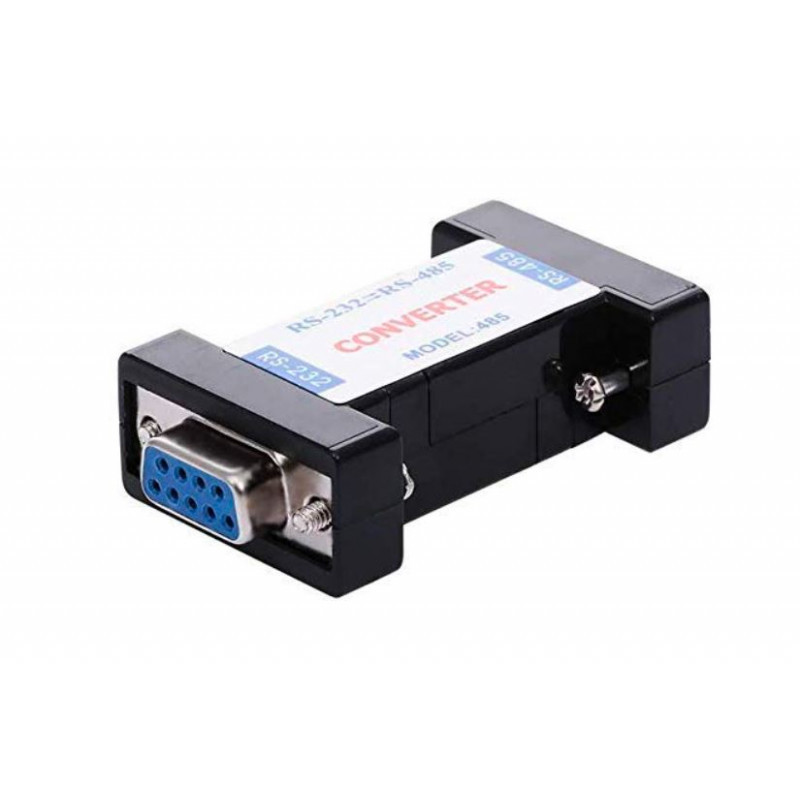

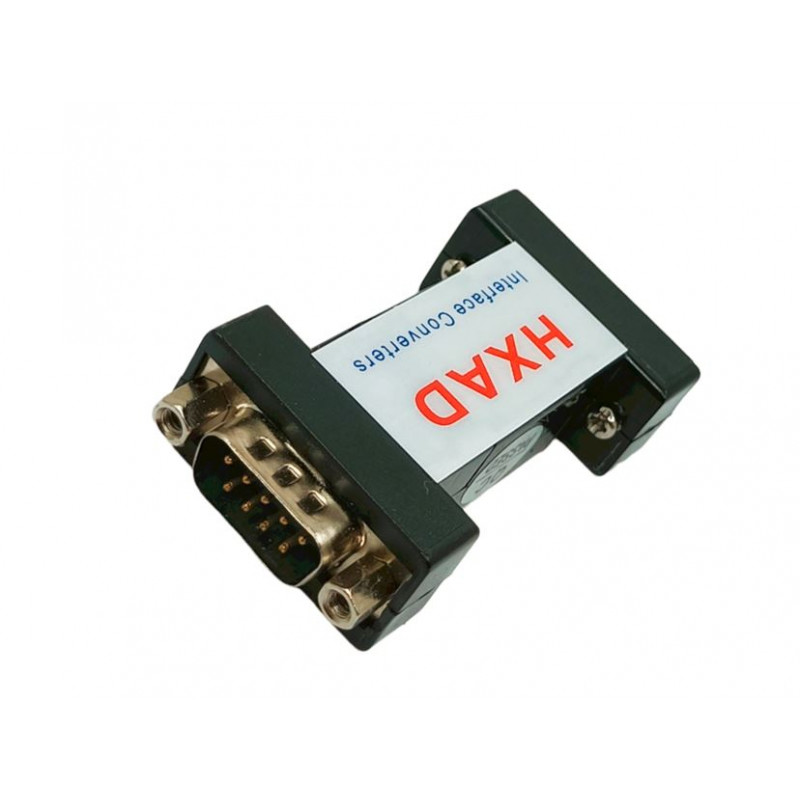

RS232 to RS485 serial port Data interface adapter Converter. It has electronic Interface At the side of RS-232 is a DB9 female(hole-type) connector and at the side of RS-485 is a DB9 male (needle-type) connector with connection board. It has Transmission Speed of 300-115200 bps. Common wire, double wire, UTP or Shielding Line are used as a transmission Media.

Features:

• Serial Port Feature: Compatible with EIA/TIA RS-232C standard and RS-485 standard
• Working Modes: Asynchronous, half-duplex, differential transmission
• Work Environment: -10°C to 85°C, relative humidity 5% to 95%
• Transmission Distance: 1.2 mile (RS-485), 5 meters(RS-232)
• Transmission Speed: 300-115200 bps
• Transmission Media: Common wire, doule wire, UTP or Shielding Line
• Serial Port Feature: Compatible with EIA/TIA RS-232C standard and RS-485 standard

Specifications:

• Data Transfer Rate: 300-115200bps . Operating Distance: 1200m for RS485, 5m for RS232
• Transmission media: Twisted-pair or shielded twisted pair (STP).
• Power: None required, uses TD as power source ,environment: -10C to 85C, 5% to 95% RH
• Interface: Compatible with EIA/TIA RS-232C standard and RS-485 standard.
• Working mode: Asynchronous, half-duplex, differential transmission.
• Weight : 70gm

Package Includes:

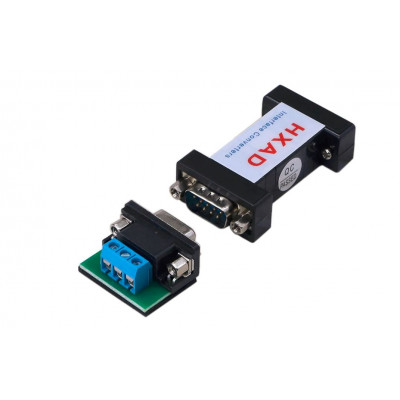

1 x RS-232 to RS-485 adapter

1 x 3 poles connection board

1 x Users Guide in English.
